Chapter 1 Setup and Installation

Back Panel Connectors

On the rear panel
a. Power (5-pin DIN socket)
b. LAN (modular RJ-11)
c. Host (25-pin D-subminiature socket)
d. Monitor (9-pin D-subminiature socket)
POWER

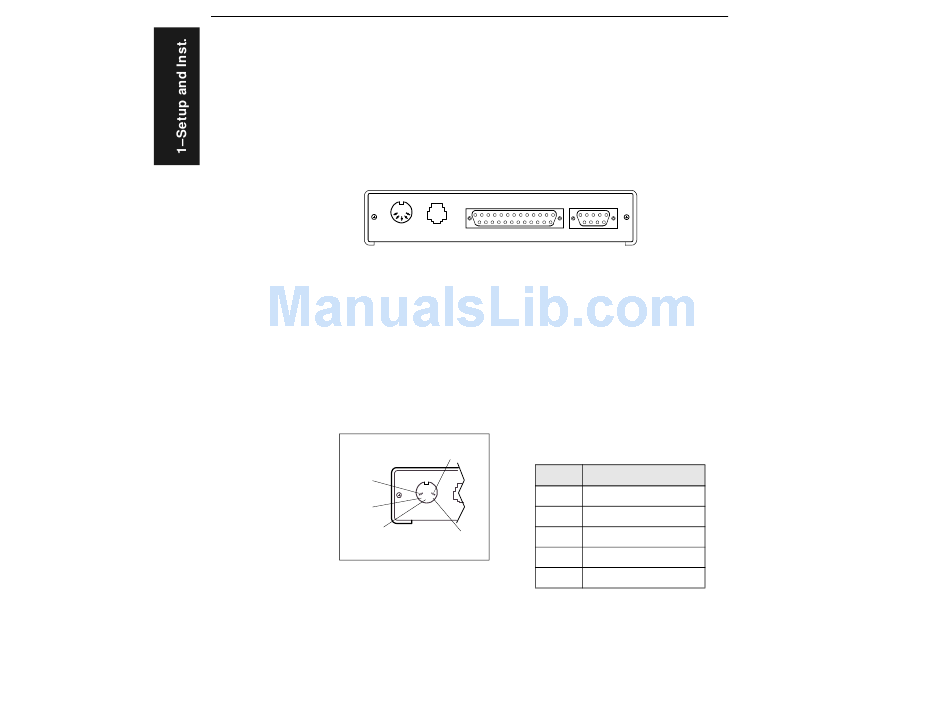

Figure 1-6 Rear Panel of MS-3000 Decoder

Power Connector
The power connector
ments shown in
You may also supply the required DC voltages yourself. A mating connector
(Switchcraft #05BL5M plug) is required.
Caution: Switching power supplies for Microscan equipment with a switching
noise of 20 mV or greater with ±12 VDC are not recommended due to exces-
sive ripple characteristics.
3
5
2
Figure 1-7 Power
Connector Socket
1-6
MS-3000 Single Head Decoder User's Manual
(figure 1-6) there are the following four connectors:
HOST
LAN
(figure 1-7) has a 5-pin DIN socket with pin assign-
table 1-3.
Table 1-3 Power Connector
1
Pin
1
POWER
2
4
3
4
5
MONITOR
Pin Assignments
Function
DC Ground
Chassis Ground
+5 VDC
–12 VDC
+12 VDC
