• <D> is the only command that is
accepted by the decoder from the
monitor. All other commands are
passed through to the host.
Data initiated from the Decoder
• Scan data is transmitted to the moni-
tor at the same time it is transmitted
to the host.
• Data transmission conforms with all
parameters specified in the configu-
ration menu (e.g., Preamble, Post-
amble, End of Read Cycle).
Data is initiated from the Host
• In polled mode, data echoed from
the host to the monitor must be in
the format <B____> (i.e.: to send
the word "LUNCH" to the terminal, it
must be sent in the format
<BLUNCH>).
• In unpolled mode, all host data is
echoed to the monitor.
Note: For connection diagrams, see
Chapter 1, "Setup and Installation."
MS-3000 Single Head Decoder User's Manual

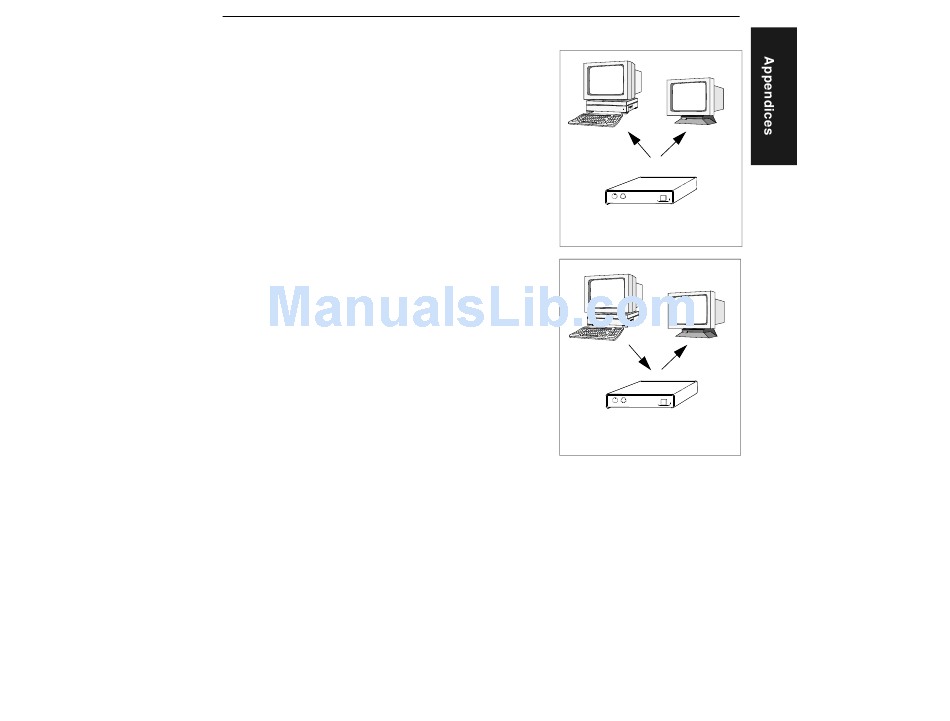

Auxiliary Monitor
