EZ Mode

EZ Mode

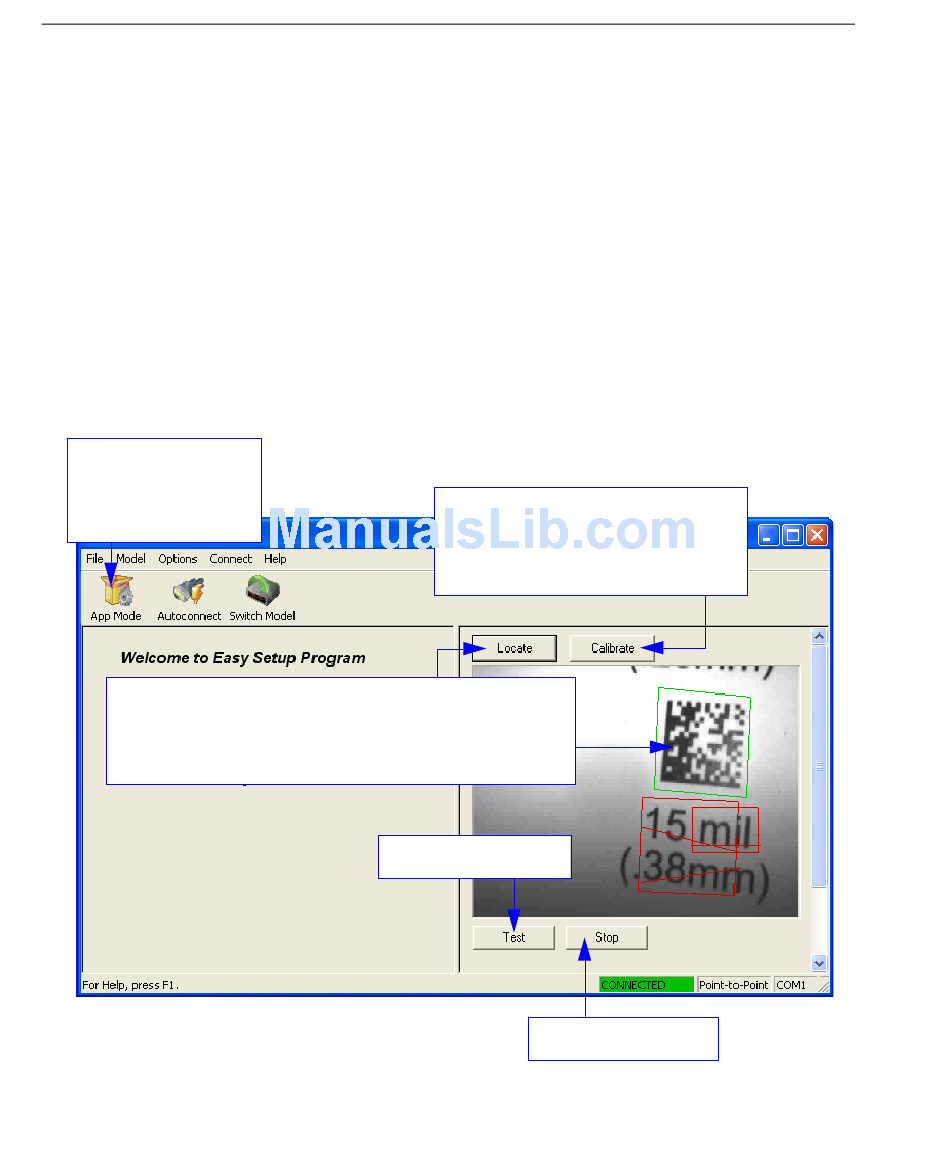

In EZ Mode you are presented with the Locate, Calibrate, and Test options. After connecting
to your imager, EZ Mode is the screen you will see. You will be provided with on-screen
instructions that will help you with positioning, testing, and calibration.
Test
Click the Test button to start the Read Rate test for a quick indication of the imager's read
capabilities and the limits of your application. When Decodes per Second is unchecked,
the test will count the percentage of decodes relative to the number of actual scans. Click
Stop to end the test.
Calibrate
The calibration routine that will optimize the imager by comparing Read Rates at various
camera and image processing settings.
Enter App Mode to
access configuration
trees and other setup
features.
Click Locate to activate the MINI Hawk's blue target
pattern LEDs. Center the target pattern on the symbol.
The display shows you where the symbol is located in
the imager's field of view.
2-2
Click Calibrate to begin the initial
calibration routine. Calbration is
explained at the left of the EZ Mode
screen, and also in
Starts Read Rate test.
Ends Read Rate test.
MINI Hawk High Performance Imager User's Manual
Quick Start.
