Initiating Calibration
Calibration Progress Indicators
During the calibration process, the imager has a number of ways to communicate its
progress to the user. The following three types of feedback are the primary ways that the
imager communicates calibration progress.

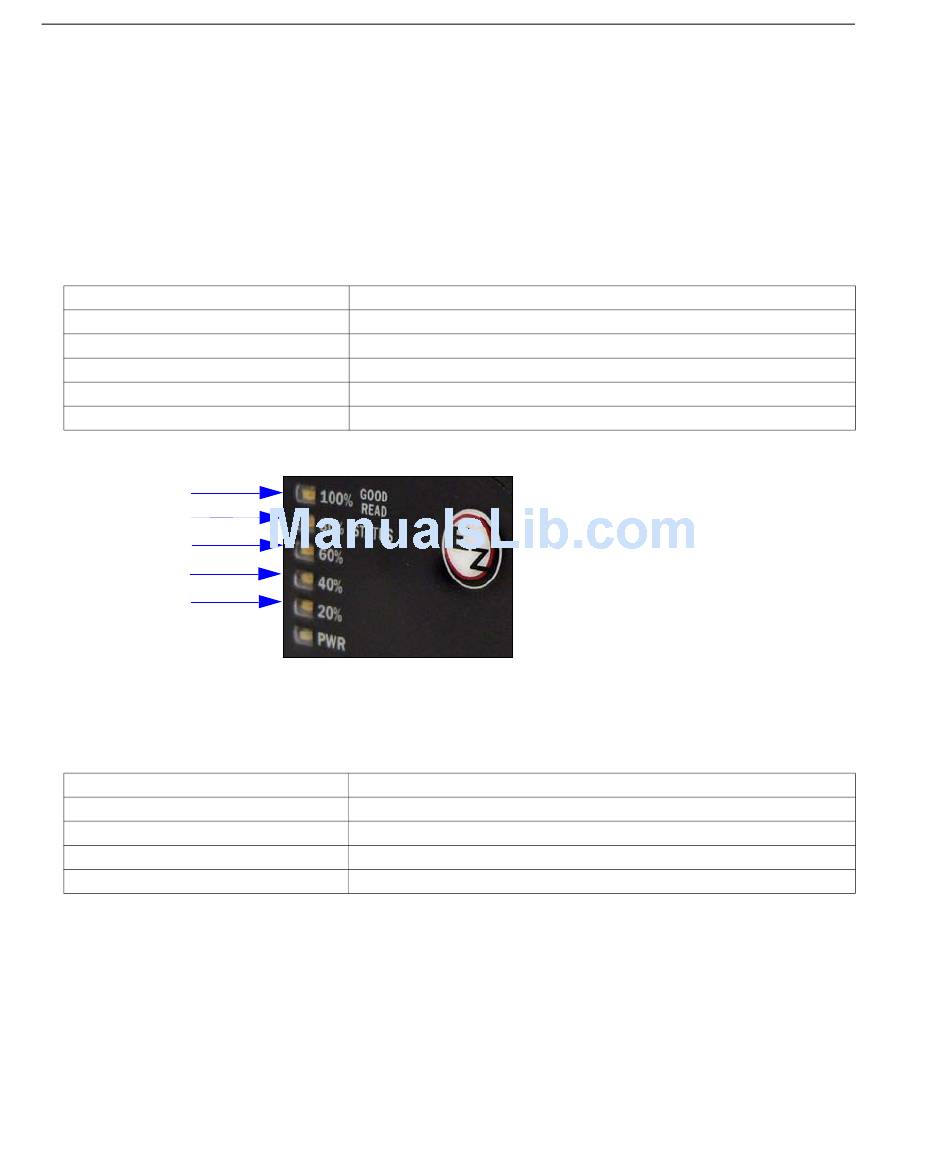

Read Rate LEDs
When calibration is initiated through a serial command or the EZ Button, the imager's
Read Rate LEDs indicate calibration progress as follows:
LEDs
20%
20%, 40%
20%, 40%, 60%
20%, 40%, 60%, 80%
20%, 40%, 60%, 80%, 100%
Calibrated
Successfully
Fine-Tune Pass
Medium Pass
Focus Pass
Search Pass
Beeper/Green Flash
The beeper and green LED flash are used to indicate calibration status as shown in the
table below:
Indicator
2 quick beeps
5 quick beeps
1 long beep
1 sec. Green Flash
4-14
Calibration Progress
Search Pass in progress.
Focus Pass in progress.
Medium Pass in progress.
Fine-Tune Pass in progress.
Calibrated Successfully (holds for green flash duration).
Status
Calibration has started.
Calibration has failed.
Calibration has been completed successfully.
Calibration has been completed successfully.
