Database Mode
Image Dimensions
Determines how the image dimension parameters will be implemented.
Definition:
Serial Cmd: <K256,switch mode,frame count/time,image process
Default: 0
Options: 0 = Window of Interest
Window of Interest (WOI) by ESP
When Image Dimensions is set to Window of Interest, the database image dimension
parameters are camera settings, and they determine the size of the image to be captured.

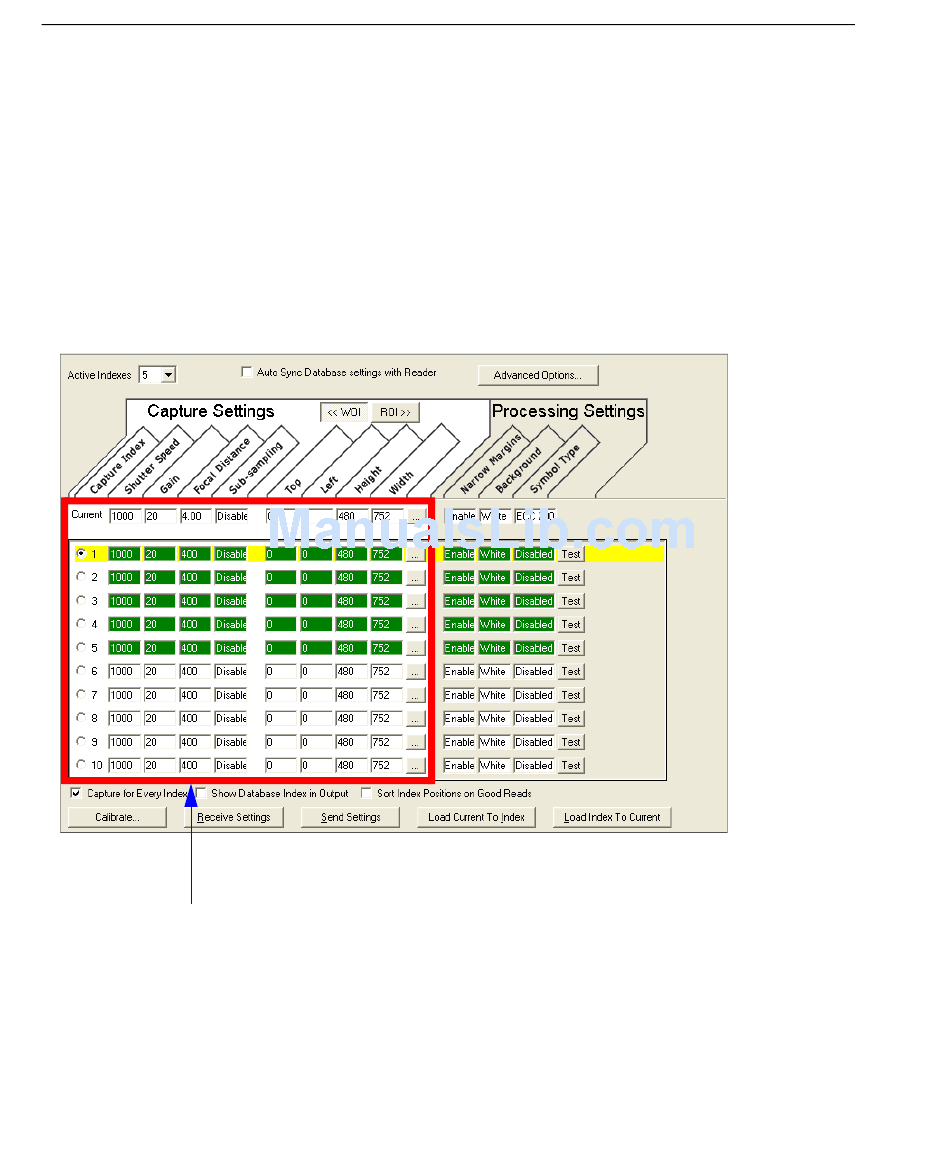

Camera settings (Capture Index, Shutter Speed, Gain, Focal Distance,
Sub-Sampling) located in the left half of the highlighted area.
Image capture dimensions (Top, Left, Height, Width) located in the right
half of the highlighted area.
11-12
looping,image
1 = Region of Interest
