Microscan MINI Hawk User Manual page 20

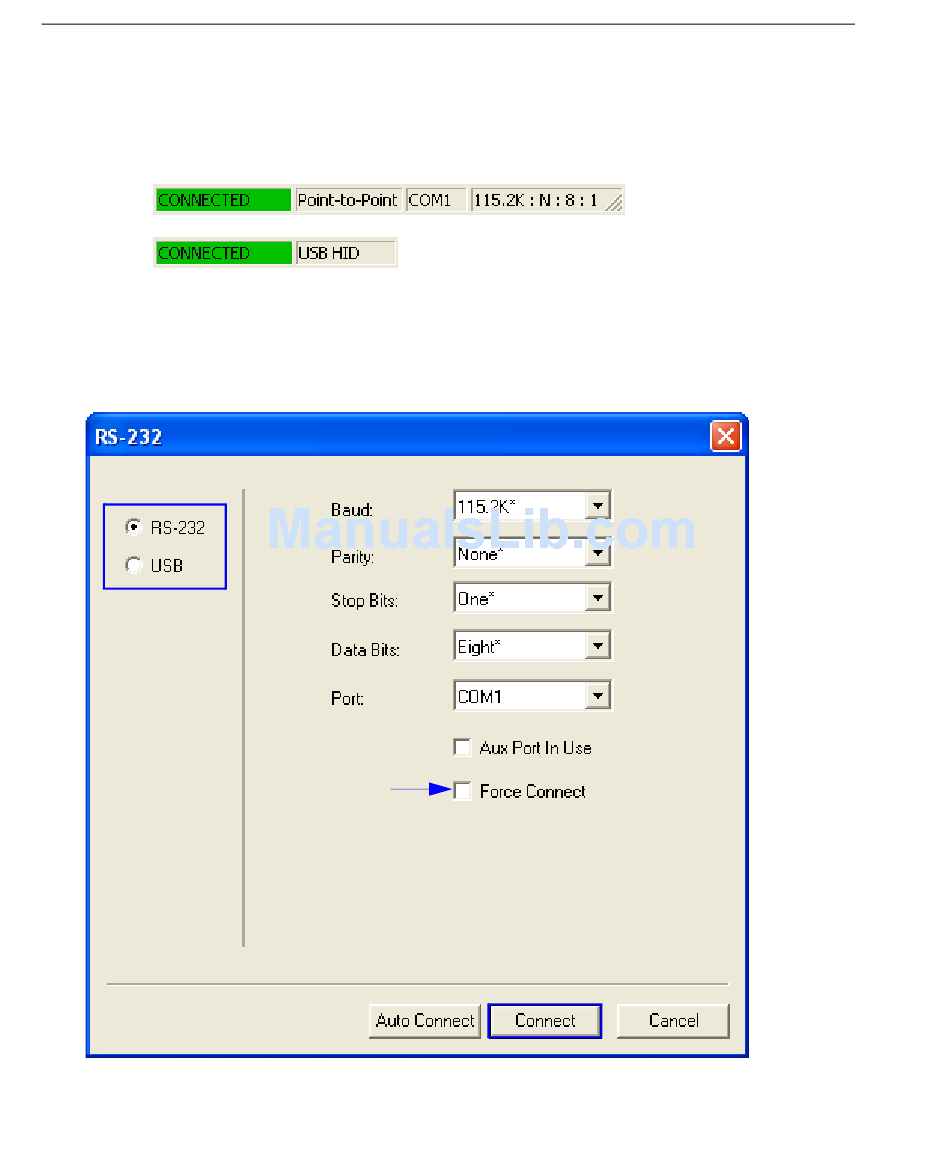

Select Protocol and Connect (cont.)
Step 6 — Select Protocol and Connect (cont.)
When you are connected, you will see the green connection indicator in the status bar at
the bottom right of your screen.
RS-232:
USB:
• If your RS-232 connection attempt fails, click the
communications port, and try again.
Note: If your RS-232 host settings cannot be changed to match the imager's settings,
check the Force Connect box in the RS-232 dialog and click the Connect.
1-8
Autoconnect
MINI Hawk High Performance Imager User's Manual
button, select a different
