Postal Symbologies

Important: Postal Symbologies must have a pixels-per-element value of no more than 7
to be decoded reliably by the MINI Hawk.
The imager must be configured to specific read range, field of view, and camera parameters
before decoding Postal Symbologies.
For optimal decode results with a Standard Density (SD) imager:
• Set
Focal Distance
• Enable
Camera Features
• Position the imager 3.5" to 6" from the symbol (5-10" if Pixel Sub-Sampling is disabled).
• Position the symbol as close to the center of the imager's field of view as possible.
Note: Measurements based on a 16 mil (60 dpi) POSTNET symbol.
MINI Hawk High Performance Imager User's Manual
to 6" and set gain and shutter settings for a high contrast image.
at 4:1.

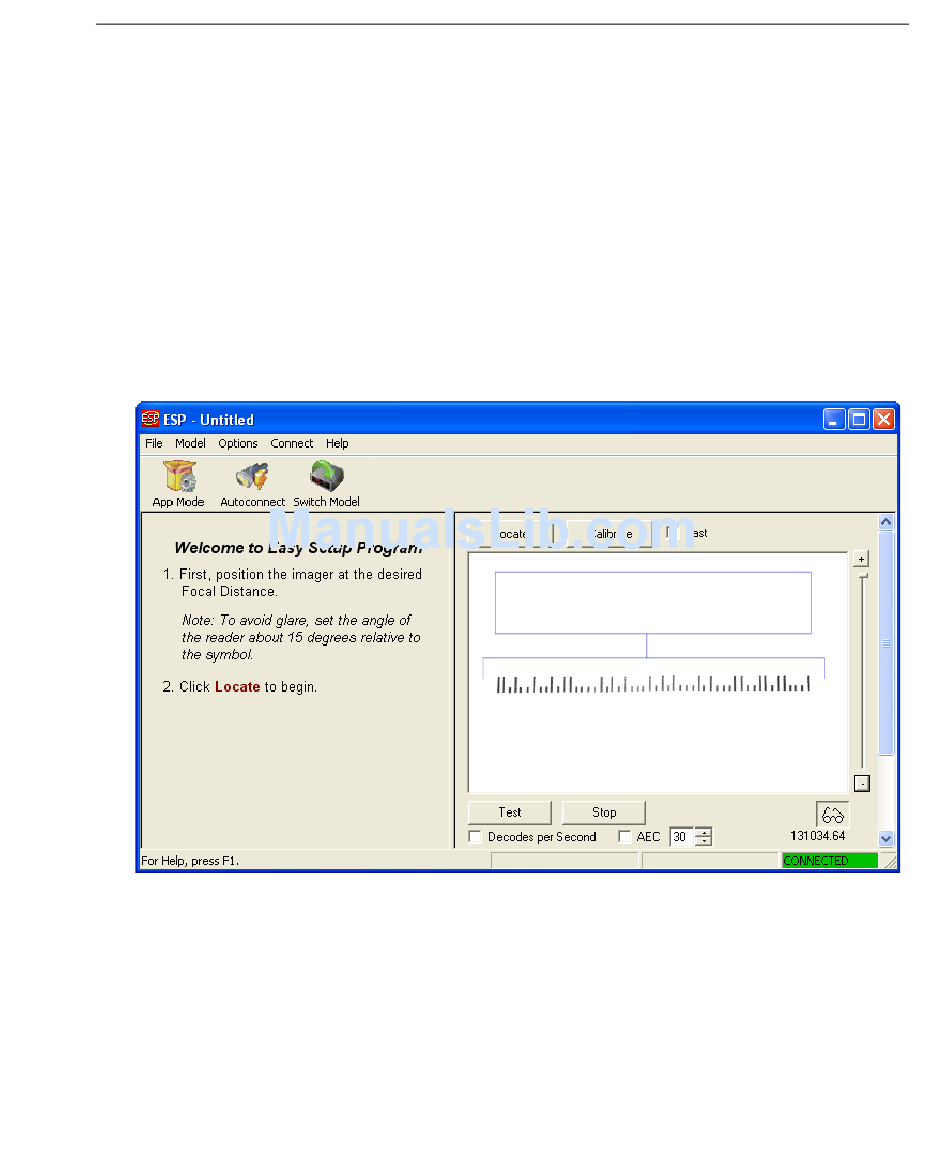

Position the postal symbol in the center
of the imager's field of view.
Symbologies
6-29
