Configurable Output 3

Configurable Output 3

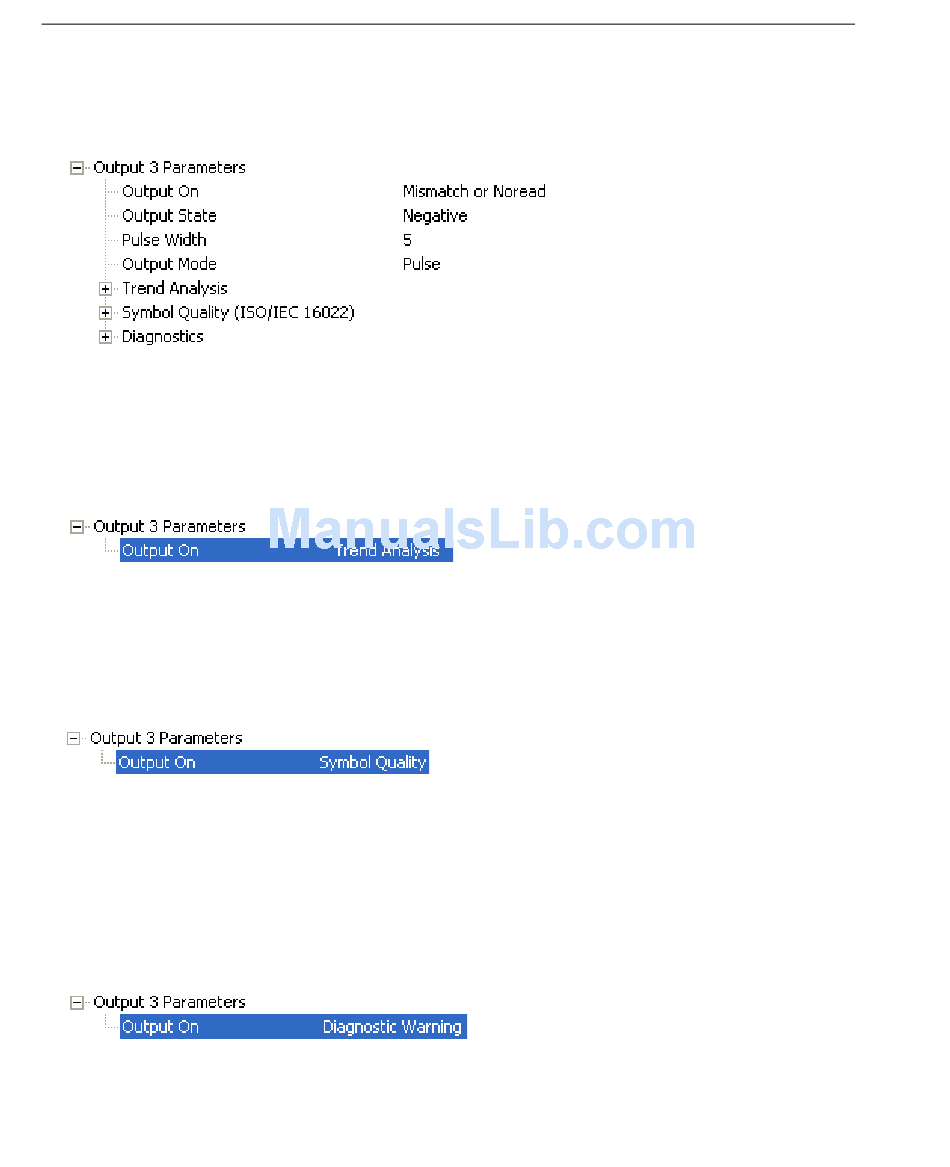

Note: Output 3 has the same parameters and default settings as Output 1 and Output 2.
<K812,output on,output state,pulse width,output mode>
Serial Cmd:

Trend Analysis Output 3

Note: Output On under Output 3 Parameters must be set to Trend Analysis for this output
to function.
<K782,trend analysis mode,trigger evaluation period,number to output on>
Serial Cmd:
ISO/IEC 16022 Symbol Quality Output 3
Note: Output On under Output 3 Parameters must be set to Symbol Quality for this
output to function.
<K802,output on symbol contrast,symbol contrast threshold,output on print
Serial Cmd:
growth,print growth threshold,output on axial non-uniformity,axial non-uniformity
threshold,output on UEC,UEC threshold>
Diagnostics Output 3
Note: Output On under Output 3 Parameters must be set to Diagnostic Warning for
this output to function.
<K792,unused 1,service unit>
Serial Cmd:
