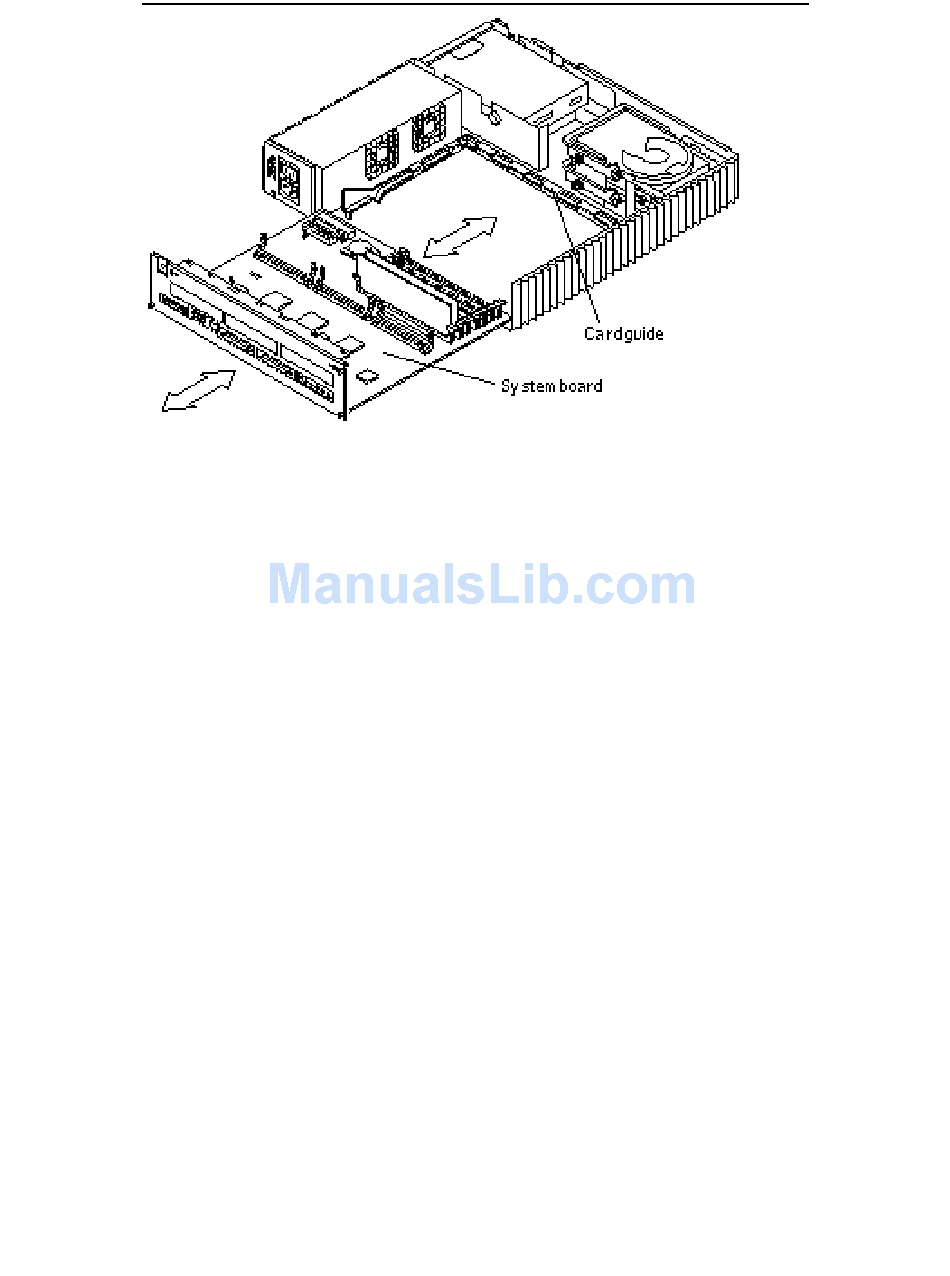

Figure 9–23
Replacing the System Board
9. Reconnect the DC power, SCSI data, diskette data, speaker/LED, and CD-ROM
audio cables to the system board.
See Figure 9–22.
10. Reinstall the SBus card (if necessary).
See "Replacing an SBus Card" on page 105.
11. Tighten the two captive Phillips-head screws that secure the board to the rear
of the chassis.
See Figure 9–24.
91
Storage Devices
