8. Disconnect the DC power harness from the diskette drive.
9. Free the SCSI data cable from the metal cable clips on the chassis floor and
from the card guide plastic cable clips.
See Figure 9–22.
10. Disconnect the SCSI data cable from the SCSI backplane.
See Figure 9–22.
11. Work the DC power harness free from the cable clips and disconnect it from
the SCSI backplane.
See Figure 9–22.

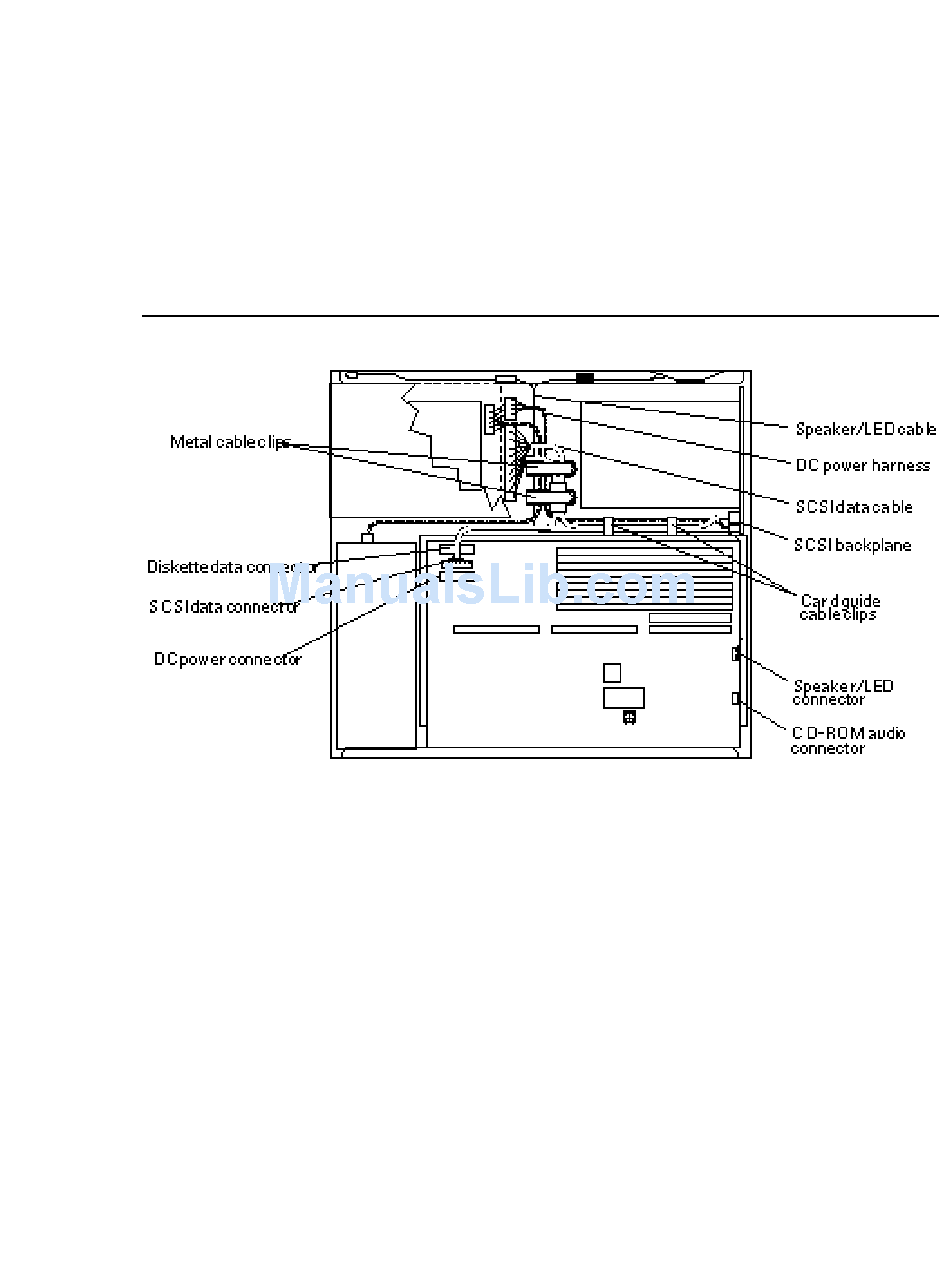

Figure 9–22
Internal Cable Routing
12. Remove the power supply.
See "Removing the Power Supply" on page 53.
