Caution – Do not proceed with these instructions until you are sure that there is no
voltage present on the DC power cables.
3. Identify the parts that you will use to assemble the DC input power cables.

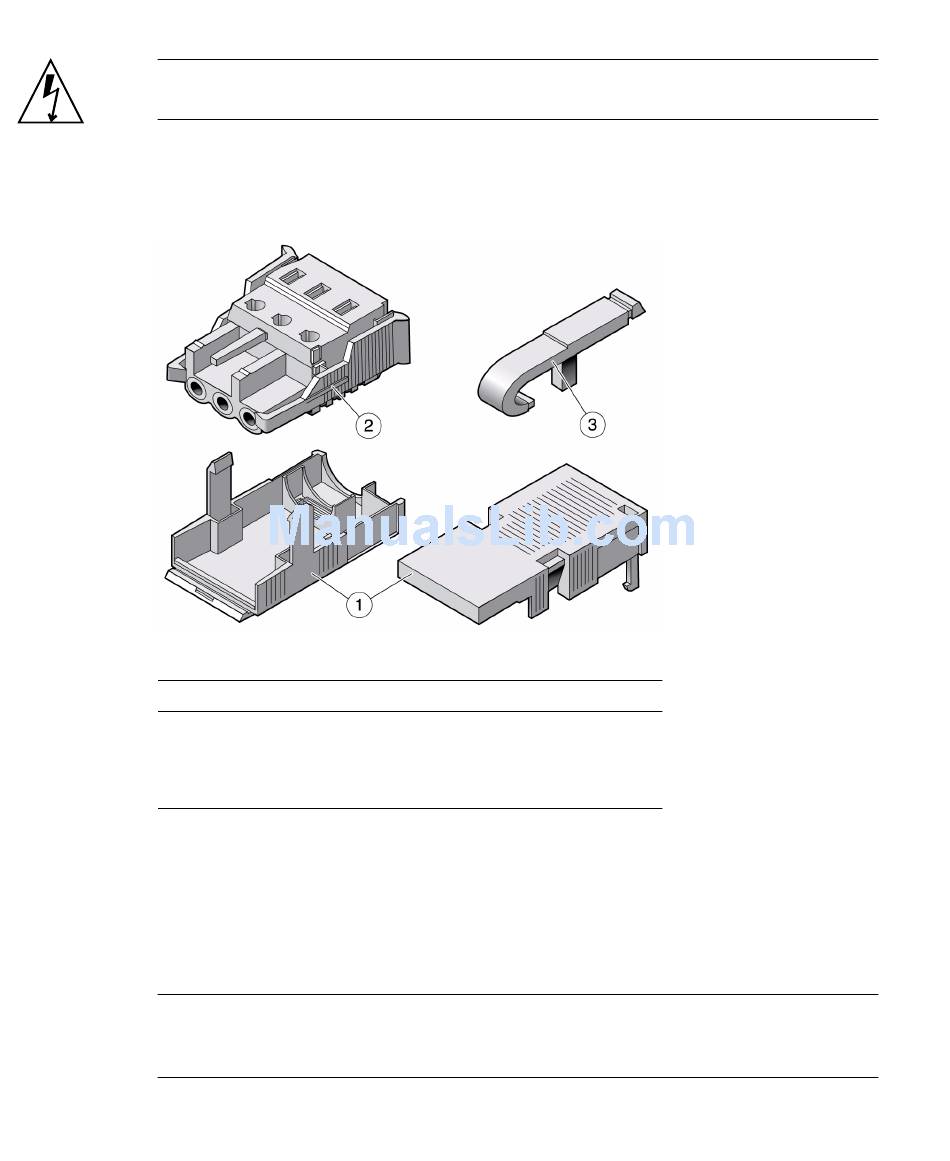

For each cable, you need the items shown in this illustration. These items are
included in the shipping kit that came with your server.
No.
1
2
3
4. Locate the three wires coming from your DC power source that will be used for
the connection to your server:
■
■
■
Note – Depending on the DC power source, the -48V or -60V (negative terminal)
might be marked with a minus (-) symbol. The -48V or -60V Return (positive
terminal) might be marked with a positive (+) symbol.
96 Netra Server X3-2 Installation Guide • May 2013
Description
Strain relief housing
DC input plug
Cage clamp operating lever
-48V or -60V (negative terminal)
Chassis ground
-48V or -60V Return (positive terminal)
