Note – This port is for temporary use during installation or service procedures and
has a maximum cable length limit of 6 meters.

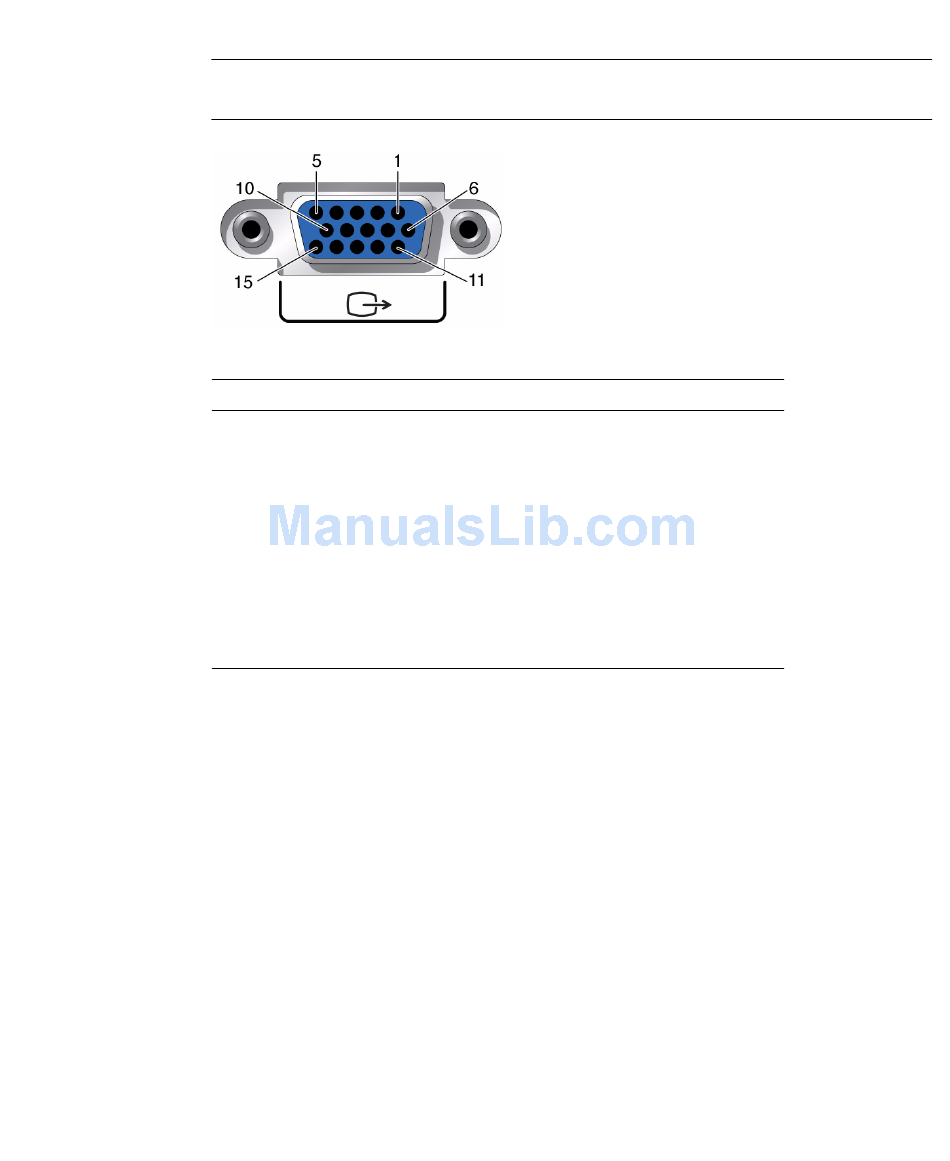

Pin Signal Description
1 Red Video
2 Green Video
3 Blue Video
4 Monitor ID - Bit 2 (Ground)
5 Ground
6 Red Ground
7 Green Ground
8 Blue Ground
Related Information
"Available Connections" on page 78
■
"Rear Panel Components (Installation)" on page 7
■
"SER MGT Port" on page 83
■
"NET MGT Port" on page 84
■
"Gigabit Ethernet Ports" on page 84
■
"USB Ports" on page 86
■
"Alarm Port" on page 88
■
Pin Signal Description
9 +5V
10 Sync Ground
11 Monitor ID - Bit 0 (Ground)
12 VGA 12C Serial Data
13 Horizontal Sync
14 Vertical Sync
15 VGA 12C Serial Clock
Connecting Cables 87
