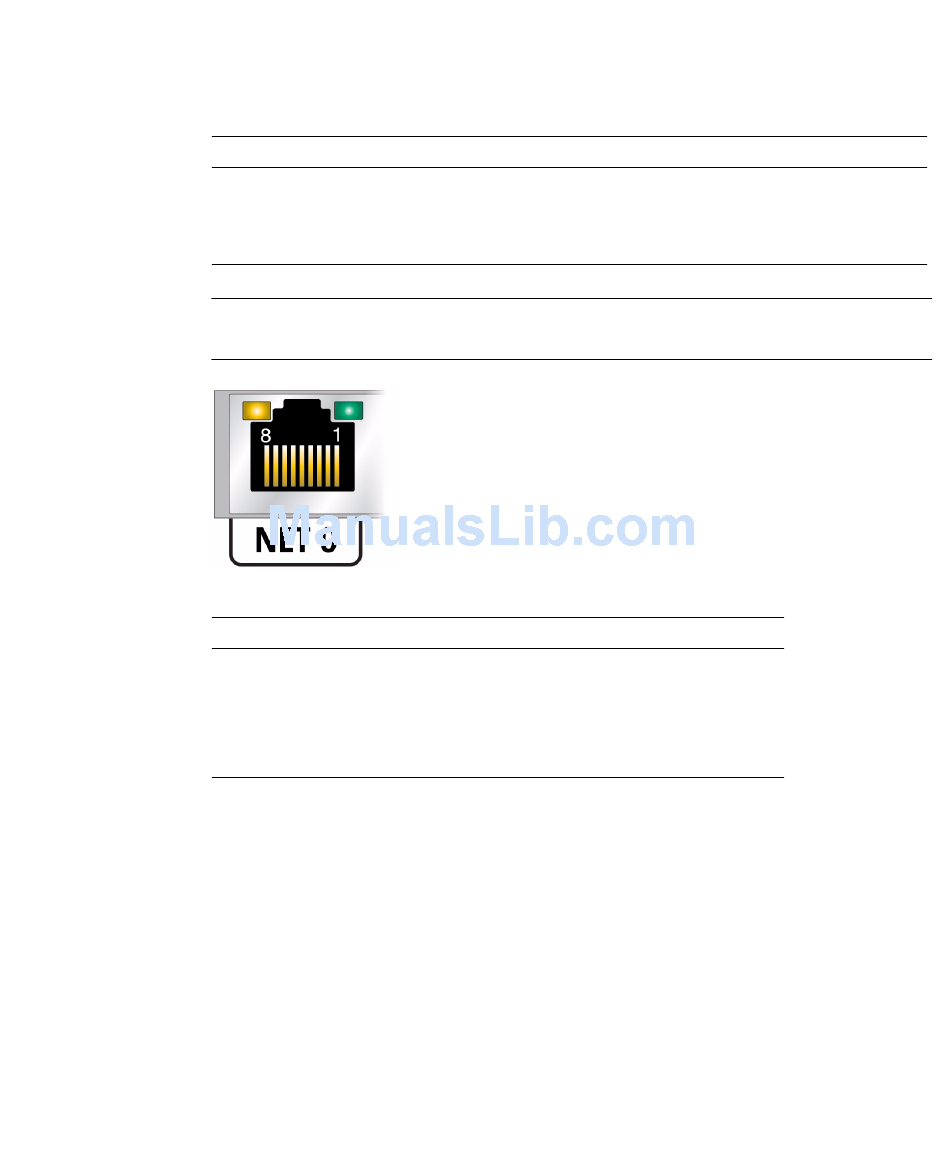

The LEDs located above each NET port are Link/Activity (left) and Speed (right)
indicators for each port as described in this table:
Connection Type
IEEE Terminology
Fast Ethernet
100BASE-TX
Gigabit Ethernet
1000BASE-T
10 Gigabit Ethernet
10GBASE-T
Note – Using the Oracle ILOM sideband management feature, you can access the SP
using one of these ports. Refer to the Server Administration for instructions.
Pin
Signal Description
1
Transmit/Receive Data 0 +
2
Transmit/Receive Data 0 -
3
Transmit/Receive Data 1 +
4
Transmit/Receive Data 2 +
Related Information
"Available Connections" on page 78
■
"Rear Panel Components (Installation)" on page 7
■
"SER MGT Port" on page 83
■
"NET MGT Port" on page 84
■
"USB Ports" on page 86
■
"Video Port" on page 86
■
"Alarm Port" on page 88
■
Speed LED Color
Off
Amber
Green
Pin
Signal Description
5
Transmit/Receive Data 2 -
6
Transmit/Receive Data 1 -
7
Transmit/Receive Data 3 +
8
Transmit/Receive Data 3 -
Transfer Rate
100 Mbits/sec
1000 Mbits/sec
10000 Mbits/sec
Connecting Cables
85
