Connect The Chassis Ground Wire - Oracle Netra Server X3-2 Installation Manual

Step
4.
Related Information
"Power On the Host for the First Time" on page 103
■

▼ Connect the Chassis Ground Wire

The server shipping kit contains a grounding lug for connecting a chassis grounding
wire to the rear of the server. You must supply the grounding wire.
Caution – The DC power source must be reliably grounded. The server chassis must
be grounded with the power supply ground pins or with the chassis ground studs. It
is acceptable to have both grounds connected.
This procedure is optional for servers with AC input power. It is acceptable to
ground the server through the supplies and chassis ground wire.
1. Retrieve the grounding lug and two M5 nuts from the shipping kit.
2. Insert the grounding wire into the receptacle of the grounding lug and use a
crimping tool to crimp the receptacle around the wire.
3. Go to the back of the server and locate the two grounding studs.

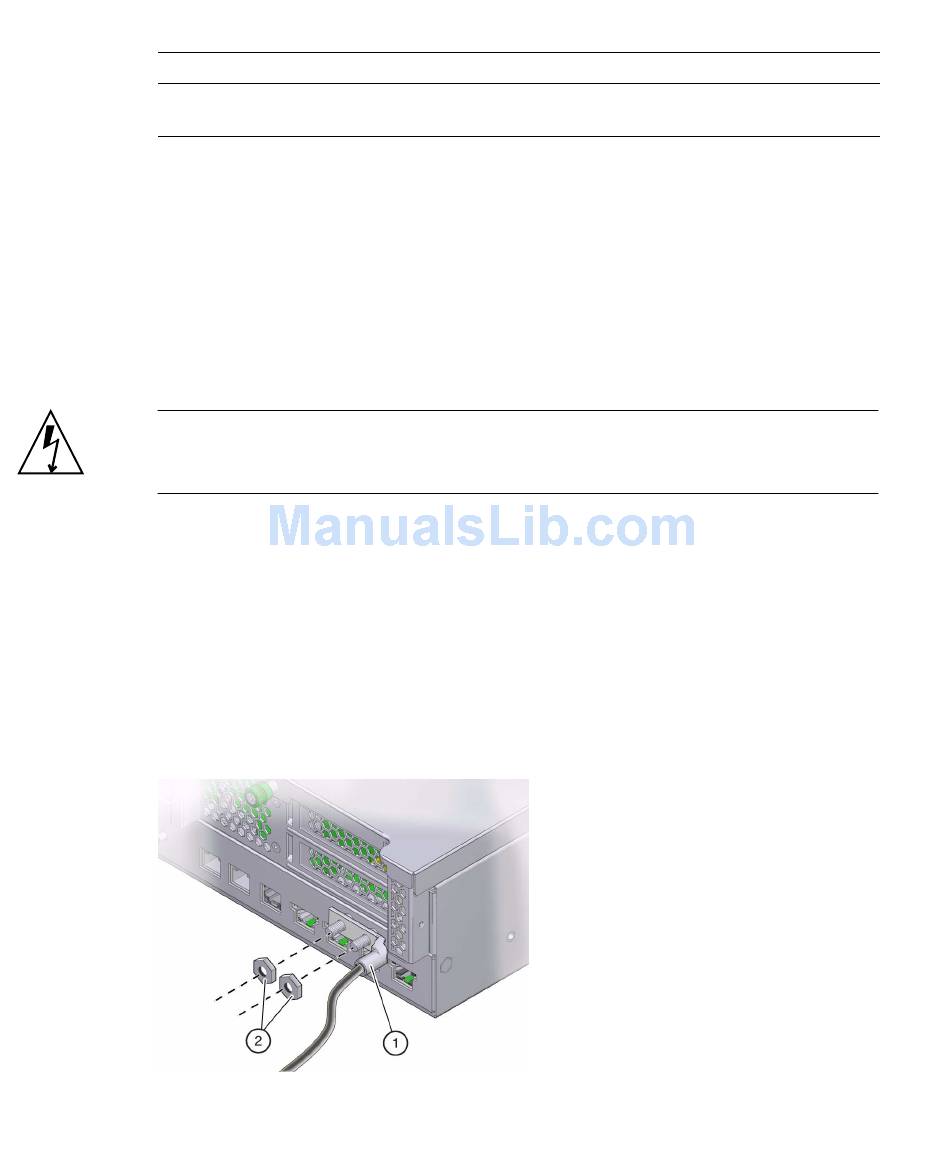

4. Position and align the grounding lug on the two grounding studs at the rear of
the chassis.
94 Netra Server X3-2 Installation Guide • May 2013
Description
Connect the DC power cords to the
DC power source and to the server.
Links
"Connect DC Power Cords" on page 102
