3-2 Operation

Front Panel

These indicators apply to the complete storage system.

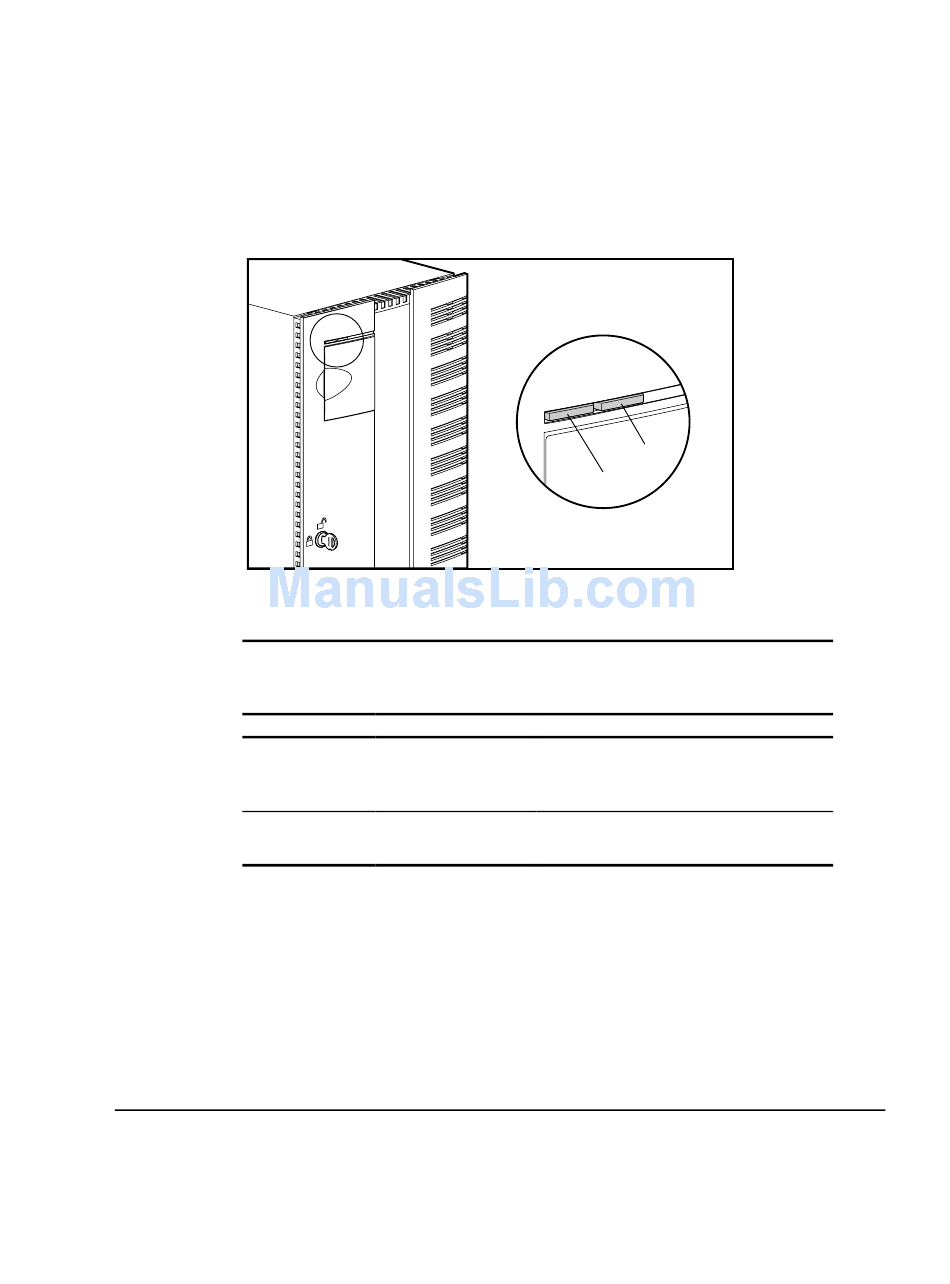

Figure 3-1. Front panel status indicators
Indicator
Power
Fault
* The system power in the ProLiant Storage System /U does not completely shut off with the
power switch. STANDBY removes power from most of the electronics and the drives, but
portions of the power supply and some internal circuitry remain active.
Table 3-1
Front Panel Status Indicators
Condition
Green System power ON
Off System in STANDBY* or system power has
been removed
Amber Fault detected in one or more sub-systems
Off No faults detected
TROJ012.EPS
Fault
Power
Meaning
Compaq ProLiant Storage System /U User Guide
