Installation of ProLiant Storage System /U

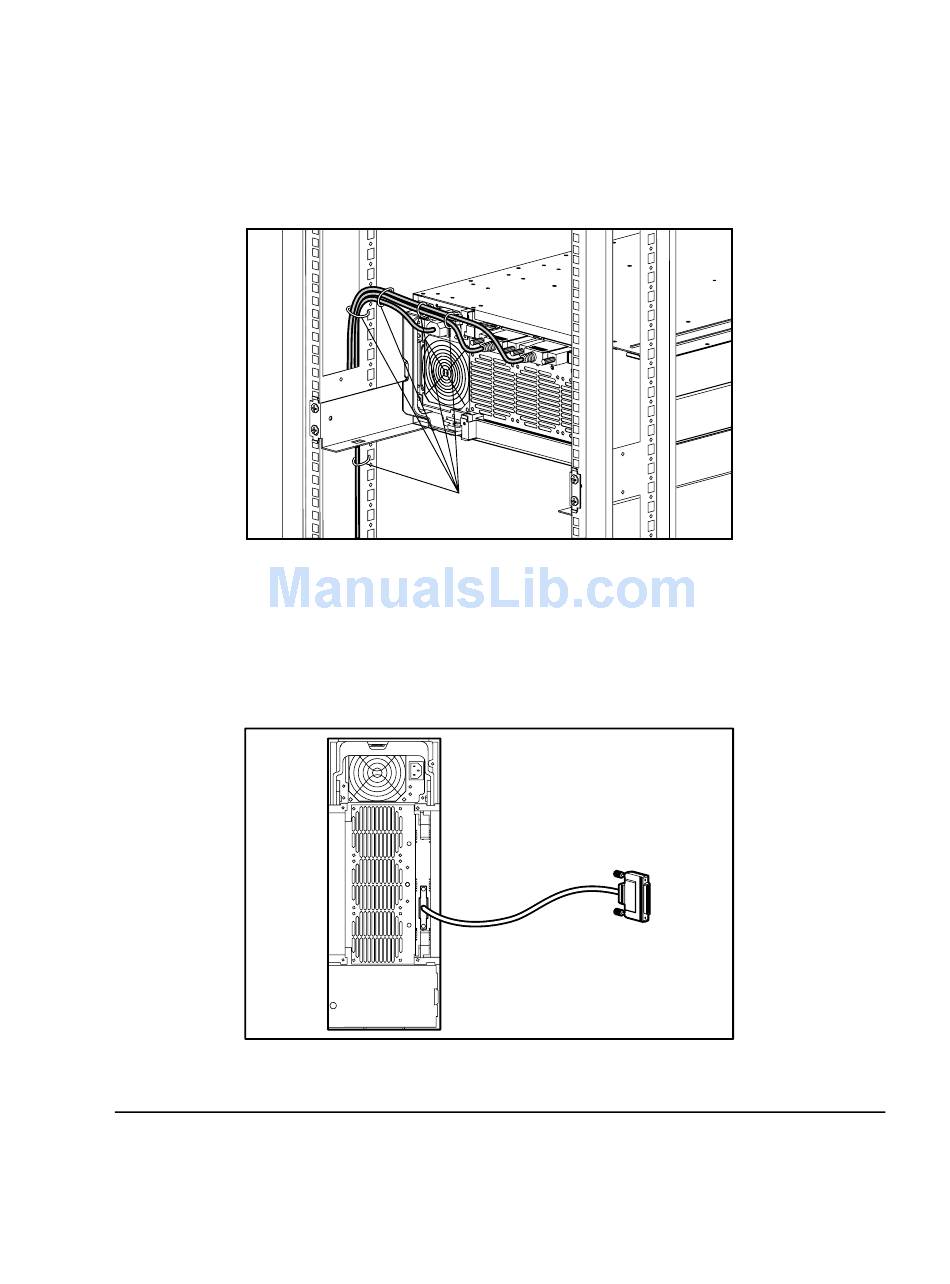

Figure 2-10. Cable management in a Rack-Mountable ProLiant Storage System /U
Model U1
See Figure 2-11 for an illustration of SCSI cable connections for Model U1
(single bus) systems.
Figure 2-11. SCSI cable connections for Model U1 systems
cable ties
To SCSI
Controller in Server
TROJ008.EPS
Compaq ProLiant Storage System /U User Guide
