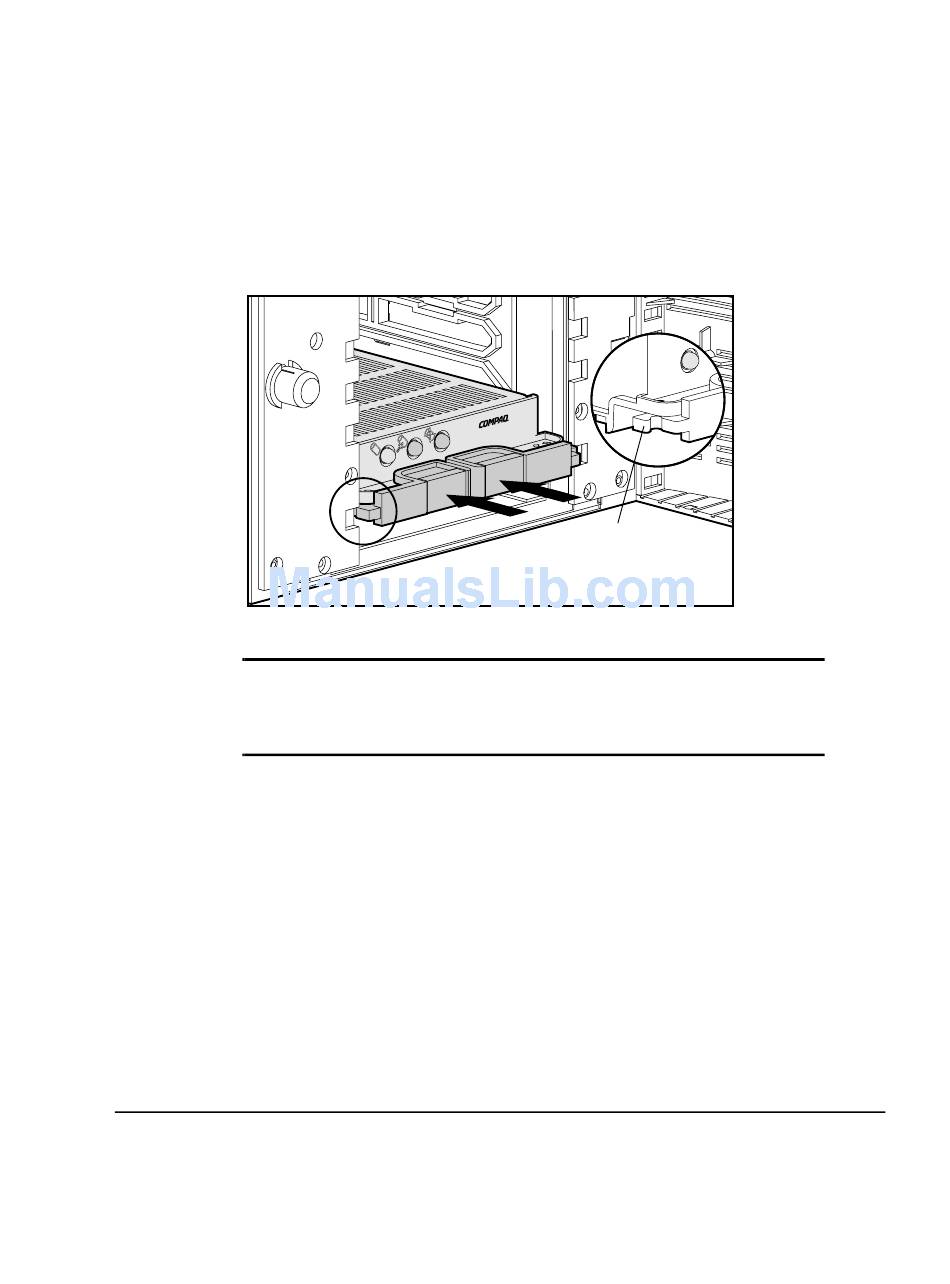

Figure 2-9. Latching the drive into place
IMPORTANT: After installing, pull on the drive to see if the tray is properly seated.
If you are able to remove the drive without releasing the latches, open the latches all
the way and try again to seat the drive, ensuring that the levers engage the front
panel and pull the drive into position.

Installing the SCSI Controller

If a SCSI controller is required, install it in the server now. ProLiant Storage
System /U is supported by a variety of Fast-Wide SCSI-2 and Wide-Ultra
SCSI-3 controllers and array controllers (see Chapter 1). Use the installation
instructions provided with the server or controller.
Close both latches against the front of the drive until they snap into
place. Levers on each latch should catch behind the metal lip of the
bay, drawing the drive into position and securing it in place.
TROJ010c.EPS
Close the ejector levers
behind the front panel of
the unit to complete the
installation of the drive.
