QuickSpecs
M
O D E L S

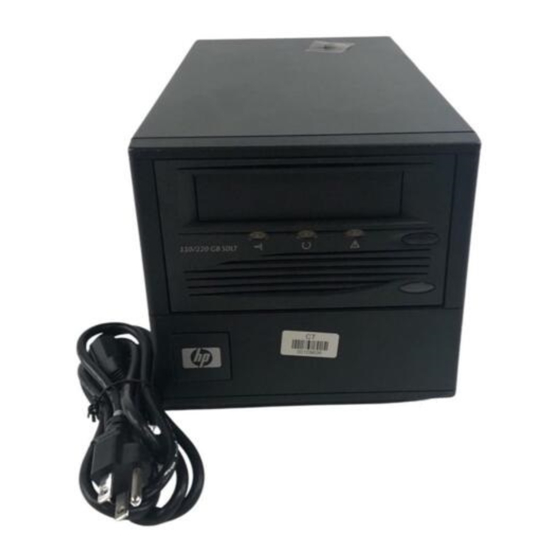

Compaq SDLT 110/220GB Tape Drive
SDLT 110/220-GB, Internal
192106-B21, Worldwide (Opal)
SDLT 110/220-GB, External
192103-001, North America (Opal)
192103-B31, International (Opal)
192103-291, Japan (Opal)
SDLT 110/220-GB, 3U Rackmount
274331-B21, Worldwide (Carbon)
Single drive installed in 3U Rackmount Kit
SDLT 110/220-GB, Dual-Drive, 3U Rackmount
274334-B21, Worldwide (Carbon)
Two drives installed in 3U Rackmount Kit
SDLT 110/220-GB Tape Array III, 5U Rackmount
274336-B21, Worldwide (Carbon)
Four drives installed in 5U Rackmount Kit
Rackmount Kits:
3U Rackmount Kit
274338-B21, Worldwide
Accommodates up to 2 internal SDLT drives
5U Rackmount Kit
274339-B21, Worldwide
Accommodates up to 4 internal SDLT drives
Feature List
SCSI LVD standard Interface
Maximum native storage capacity of 110GB, up to 220GB with compression
Maximum native data transfer rate of 39.6GB/hour, up to 79.2GB/hour with compression
Backward-read compatibility with DLT Type IV tape cartridges
Available in internal, external, and rackmount configurations
Supported in multiple rackmount kit options including the 3U Rackmount Kit and 5U Rackmount Kit
Tape Storage Software provided through StorageWorks™ Data Protection Software Suite by Compaq
O
V E R V I E W
Compaq's SDLT 110/220 is the first product in the SDLT family, offering increased capacity and performance over previous DLT tape drives and
backward read compatibility with DLT Type IV media
Compaq SDLT 110/220-GB Tape Drive Customer benefits include:
Industry leading native storage capacity with 110-GB capacity per data cartridge
Native data transfer rate of 39.6GB/hr offers highest performance in DLT/SDLT product class
Investment protection through backward-read compatibility with previously written DLT Type IV media
Increased reliability and performance through technological advances in drive head and media design
Reduces dependence on spares inventory with a 24 hour exchange
SDLT technology roadmap offers future capacities beyond 1 TB per cartridge
DA-10772
World Wide — Version 10 — June 24, 2002
Compaq SDLT 110/220GB Tape Drive
1
Advertisement
Related Manuals for Compaq SDLT 110
Summary of Contents for Compaq SDLT 110
- Page 1 Tape Storage Software provided through StorageWorks™ Data Protection Software Suite by Compaq V E R V I E W Compaq’s SDLT 110/220 is the first product in the SDLT family, offering increased capacity and performance over previous DLT tape drives and backward read compatibility with DLT Type IV media...
- Page 2 CD-ROM. DRTape is a firmware driven software utility that provides a disaster recovery solution for Compaq ProLiant servers. Embedded in the firmware of each supported tape device, DRTape uses Compaq tape drives to emulate bootable drive devices, similar to floppy and CD- ROM drives.
- Page 3 Compatibility and Integration Testing Compaq’s SDLT 110/220-GB tape drives are fully supported and compatible with Compaq Servers, StorageWorks DLT Tape Enclosures & Array, and controllers. Compaq thoroughly tests products with leading software and operating systems, including VERITAS Backup Exec and CA ARCserve.
-
Page 4: Warranty
CS Support Compaq Services provides a three-year, limited warranty, fully supported by a worldwide network of resellers and service providers and toll-free 7 x 24 hardware technical phone support during the warranty period. In addition, available service offerings include a full range of CarePaq packaged hardware... - Page 5 Operating Altitude DA-10772 World Wide — Version 10 — June 24, 2002 Compaq SDLT 110/220GB Tape Drive A P E R I V E P E C I F I C A T I O N S SDLT 110/220-GB, Internal...
- Page 6 Maximum Number of Devices/Ports (channels) supporting 1 drive per SCSI bus 2 Full-Height (DLT & SDLT) Maximum Number of Drives SDLT 110/220 (1 or 2 drives Tape Drive (Installed) installed) Up to 220-GB Native Capacity 440-GB Native Capacity Capacity Up to 22MB/s...
- Page 7 O N F I G U R A T I O N Model Description: Contains one SDLT 110/220-GB tape drive, 1 SDLT data cassette, 1 internal 2-Device Ribbon Cable w/switchable LVD/SE Terminator, Warranty Card, User’s Guide on CD, and Native Drivers on CD.
- Page 8 Group in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies. Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any kind and is subject to change without notice.
