2-6 Compaq StorageWorks TL881/TL891 Family MiniLibrary System Reference Guide

MiniLibrary Base Module

NOTE 2: This button is sampled during power-up while all control panel LEDs are on. If it
is pressed during that time, the system updates its geometry; that is, it checks for the
presence and location of all modules and remaps all media. Use this method when
removing or installing a module permanently.
NOTE 3: These buttons are sampled during power-up. If both buttons are pressed during
that time, the system clears low-power memory. Use this procedure only when low-power
data is corrupted. Clearing low-power memory erases all log information, such as
configuration history, error history, and statistics. In addition, the system time, date and
password information is erased and must be re-entered.
Figure 2-3 shows the front panel of the MiniLibrary Base Module (Table 2-3).
The panel includes a power switch and the control panel, which has
pushbuttons, LED indicators, and a display.

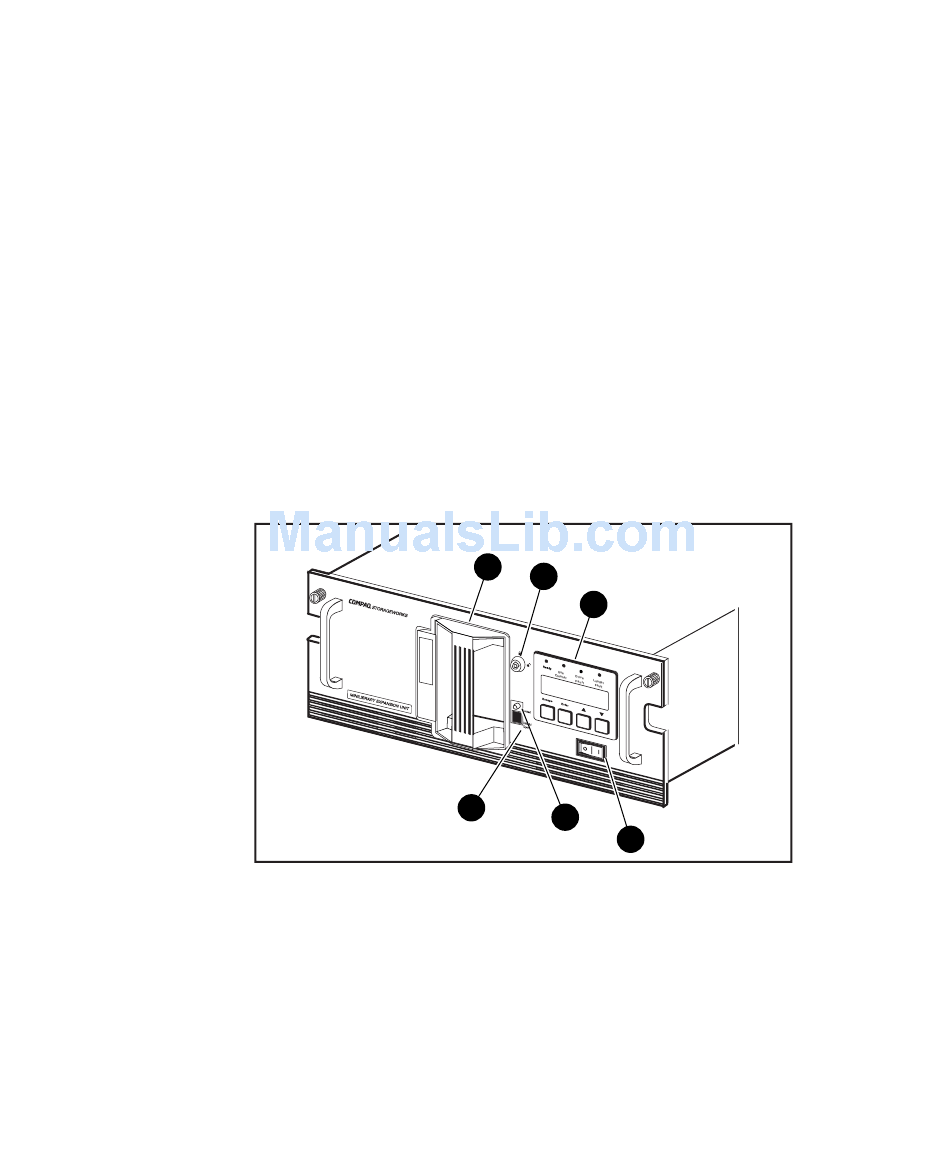

Figure 2-3. MiniLibrary base module front panel

1
2
3
4
5
6
SHR-1678
