5-16 Option Installation
Rack system:
a.
b. Carefully slide the chassis out of the rack.
c.
d. Carefully slide the drive cage from the chassis.
TROJ036.EPS

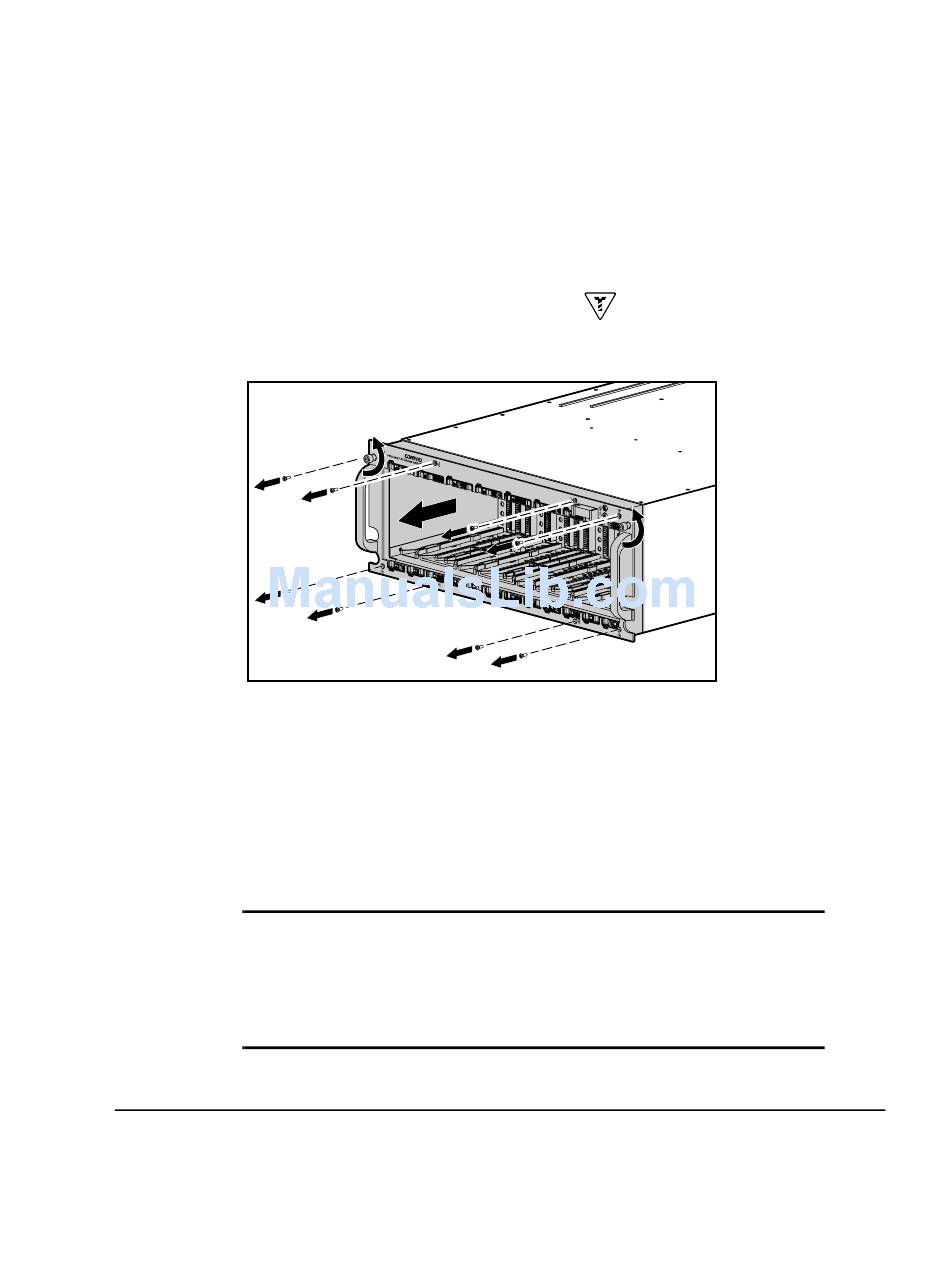

Figure 5-10. Removing the drive cage from a rack system
6. The option kit contains new front panels for both the rack (two piece)
and tower (single piece) models of the storage system. Remove the
existing front panel and select and install the correct new front panel.
7. Carefully slide the Single Bus drive cage into the chassis as far as it will
go. The drive cage is properly seated when the front panel is flush with
the front of the chassis and the screw holes are aligned.
IMPORTANT: There are two alignment pins on the back and two capture
fingers on the side (bottom in rack units) of the drive cage which must engage
corresponding features on the chassis. It may be necessary to "wiggle" the drive
cage slightly in order to properly seat it in the chassis. The units will mate
easily when properly aligned. Do not force the two units together if there is
obvious resistance.
Loosen the two thumbscrews securing the system in the rack.
Remove the 8 screws marked with a
to the chassis.
securing the front panel
Dra win
g No: 223
126 -00
1
Compaq ProLiant Storage System /U User Guide
