Installation of ProLiant Storage System /U
4. Install the drive as shown below.
a.
Squeeze the latches and pivot
the ejector levers into the full open position.

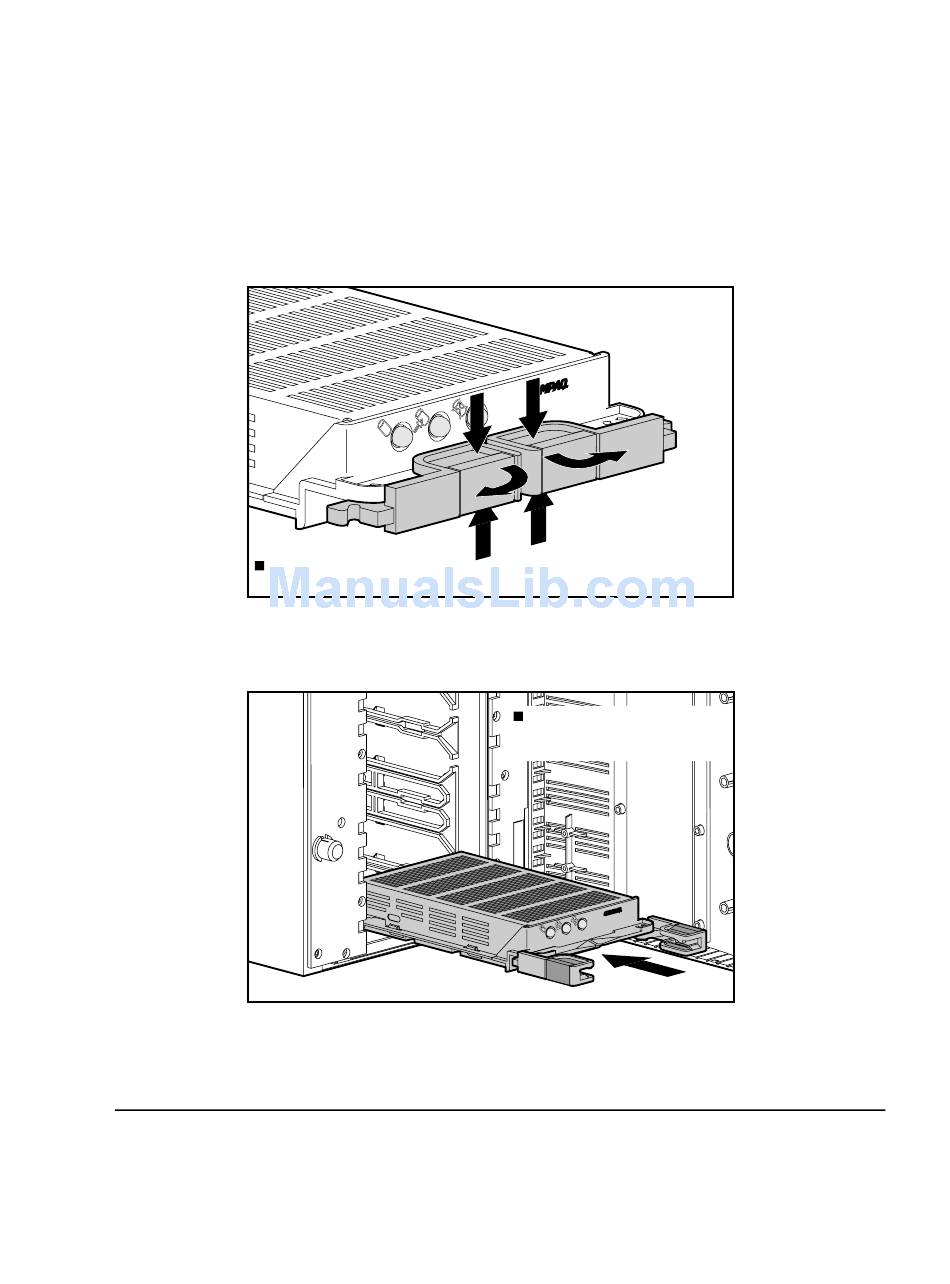

Figure 2-7. Opening the latches
b. Slide the drive into the bay as far as it will go.
Figure 2-8. Sliding the drive tray into the storage system
Fully open both latches on the drive tray and insert the drive into
the correct drive bay.
TROJ010b.EPS
TROJ010a.EPS
Be sure ejector levers are in
the full open position to insure
a correct latch while installing.
Compaq ProLiant Storage System /U User Guide
