Installation of ProLiant Storage System /U
6. Attach the brackets to the rear mounting rails with two screws provided.
Tighten the screws securely.

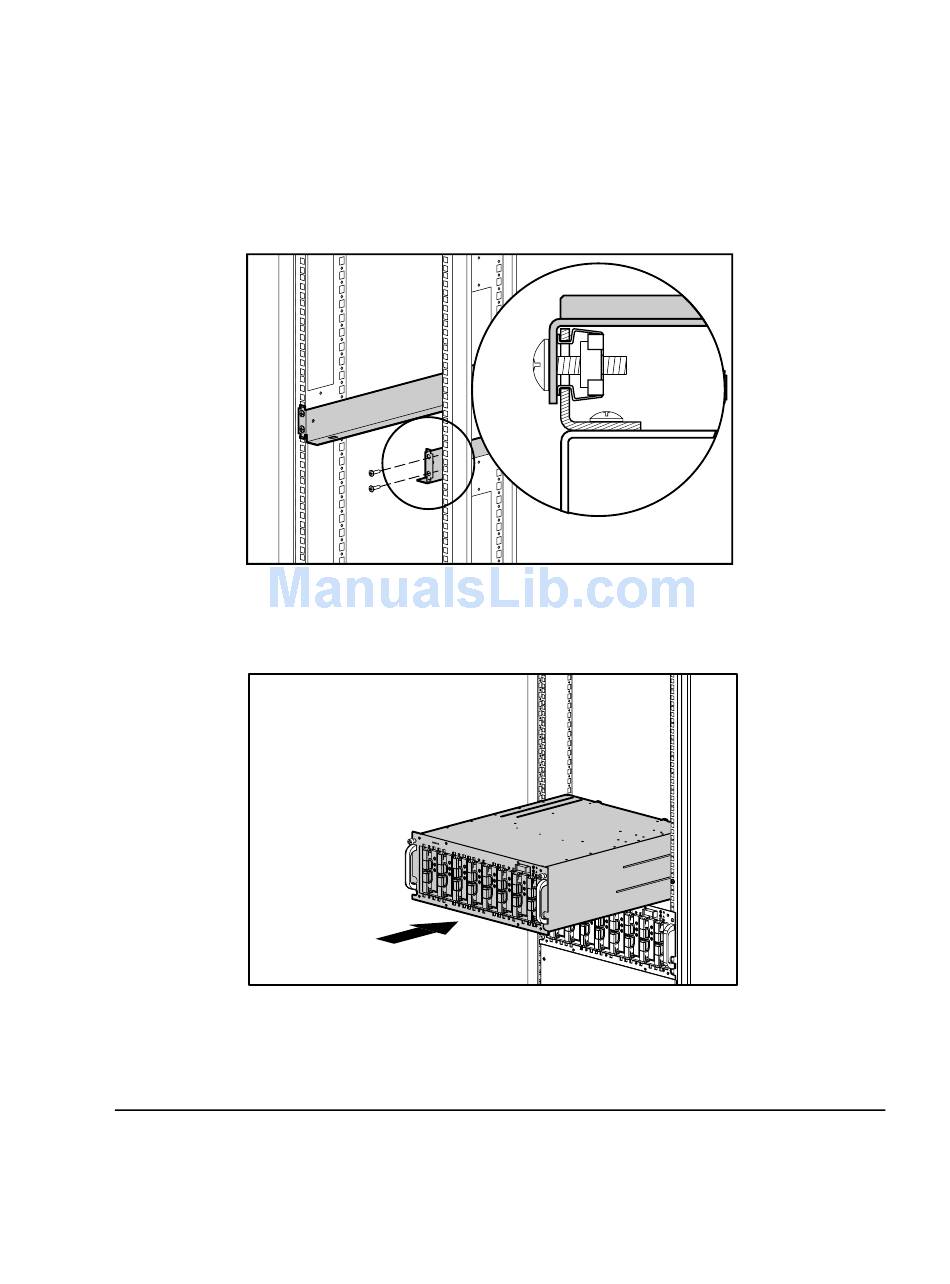

Figure 2-5. Attaching the brackets to the rear mounting rails
7.
Place the Rack-Mountable ProLiant Storage System /U on the mounting
brackets and slide it fully into the rack.
TROJ038.EPS
Figure 2-6. Installing Rack-Mountable ProLiant Storage System /U into the rack
8. Secure the storage system in the rack with the two thumbscrews in the
corners of the front panel.
Top View
TROJ035.eps
Compaq ProLiant Storage System /U User Guide
