Installation of ProLiant Storage System /U
Model U2
See Figure 2-12 for an illustration of SCSI cable connections for Model U2
(dual bus) systems.

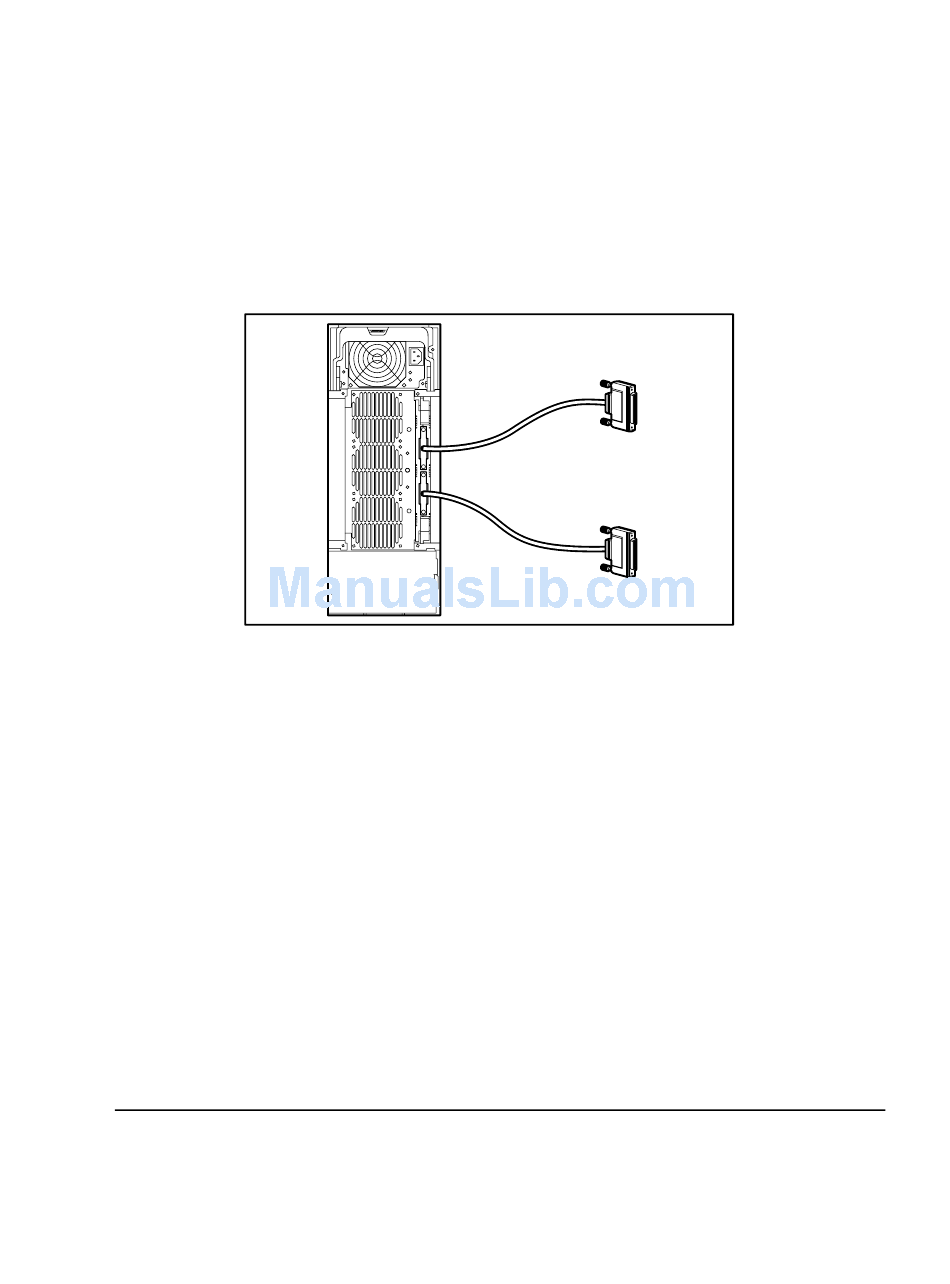

Figure 2-12. SCSI cable connections for Model U2 systems
To SCSI
Controller in Server
To SCSI
Controller in Server
TROJ046.EPS
Compaq ProLiant Storage System /U User Guide
