2-5 Installation of ProLiant Storage System /U
To be sure of the correct mounting position:
TROJ032.EPS

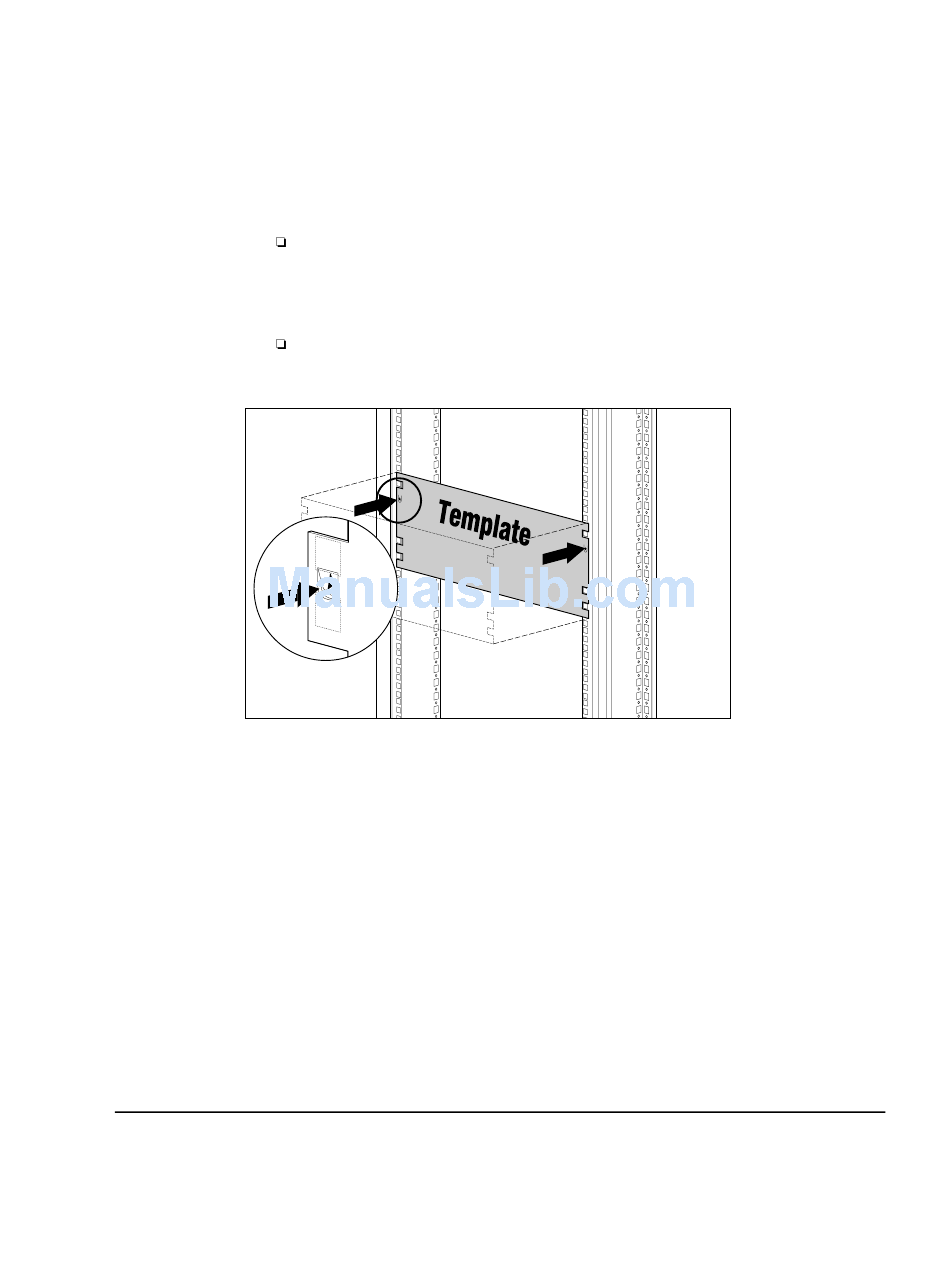

Figure 2-1. Measuring with the template
Use the tick-marks as a reference. Each tick-mark (a small dimple
on the edge of the vertical mounting rails) is one "U" or 1.75
inches. The markings on the template will match the tick-marks on
the rear mounting rails when the alignment is correct.
Use the number of holes between the bottom of the rack and the
mounting brackets as a reference.
C
M
M
C
M
M
