Internal Two-Bay
Hot-Plug SCSI Drive Cage
Installation Card for
ProLiant ML330 Generation 2 Servers
ProLiant ML350 Servers
with 1-GHz Processors
ProLiant ML350 Generation 2 Servers
ProLiant ML370 Generation 2 Servers
OPEN CARD COMPLETELY BEFORE BEGINNING INSTALLATION
PROCEDURES
Notice
© 2001 Compaq Computer Corporation
Compaq, the Compaq logo, and ProLiant
Reg. U.S. Pat. & Tm. Off. All other product names mentioned herein
may be trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or
omissions contained herein. The information in this document is
provided "as is" without warranty of any kind and is subject to
change without notice. The warranties for Compaq products are set
forth in the express limited warranty statements accompanying such
products. Nothing herein should be construed as constituting an
additional warranty.
INTERNAL TWO-BAY HOT-PLUG SCSI DRIVE CAGE
Second Edition (September 2001)
Part Number 246499-002
Bar Code Here
Overview
Use this installation card to install a two-bay hot-plug SCSI drive
cage in Compaq ProLiant™ ML330 Generation 2 servers,
ProLiant ML350 servers, and ProLiant ML370 Generation 2 servers.
With this option installed into the server's removable media bay, you
can add two additional hot-plug SCSI hard drives or one hot-plug
SCSI hard drive and one hot-plug SCSI tape drive.
IMPORTANT: If an internal SCSI connector is not available for managing your
drive cage, install a SCSI controller or array controller. Ensure you have the needed
controller before you install the drive cage.
For additional information about installing hardware options, refer to
the setup and installation guide on the documentation CD that ships
with your server.

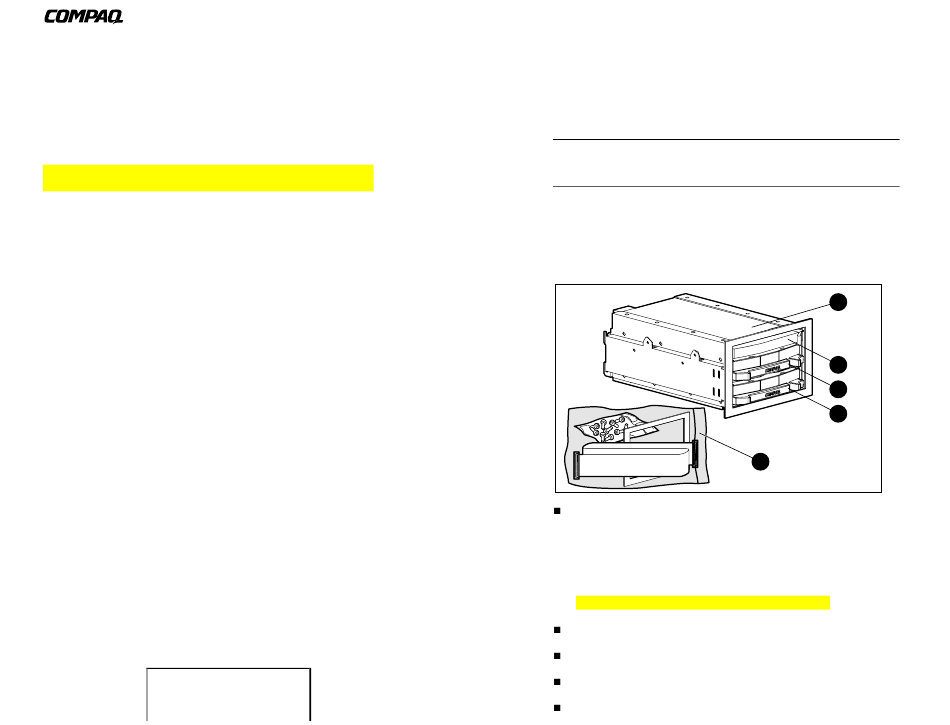

Kit Contents
Installation screws and cable
T orx 6-32 × 0.25 guide screws (4)
G
T orx 6-32 shoulder screws (4)
G
U ltra3 or higher point-to-point SCSI cable
G
B ezel 2 for ProLiant ML330 installations only
G
Two-bay hot-plug SCSI drive cage
0.6-inch blank
Drive blank (slot 1)
Drive blank (slot 0)
2
3
4
5
1
