NOTE
Pin 1 is shown as a black pin (square or round) on vertical headers in all
illustrations. Black dots on right-angle headers indicate pin 2.

Jumper Header Definitions

Table 2-3
describes the jumper headers shown in

Table 2-3. Jumper Settings

Jumper #
JP2 – LVDS Voltage
Select
JP3 – IDE Select
JP4 – Compact Flash
Voltage Select
JP8 – N/A
JP9 – Clear CMOS
Note: All jumper headers use 0.079" (2mm) pin spacing.
CoreModule 730
J26
JP3
J27
JP8
J5
J6
J3

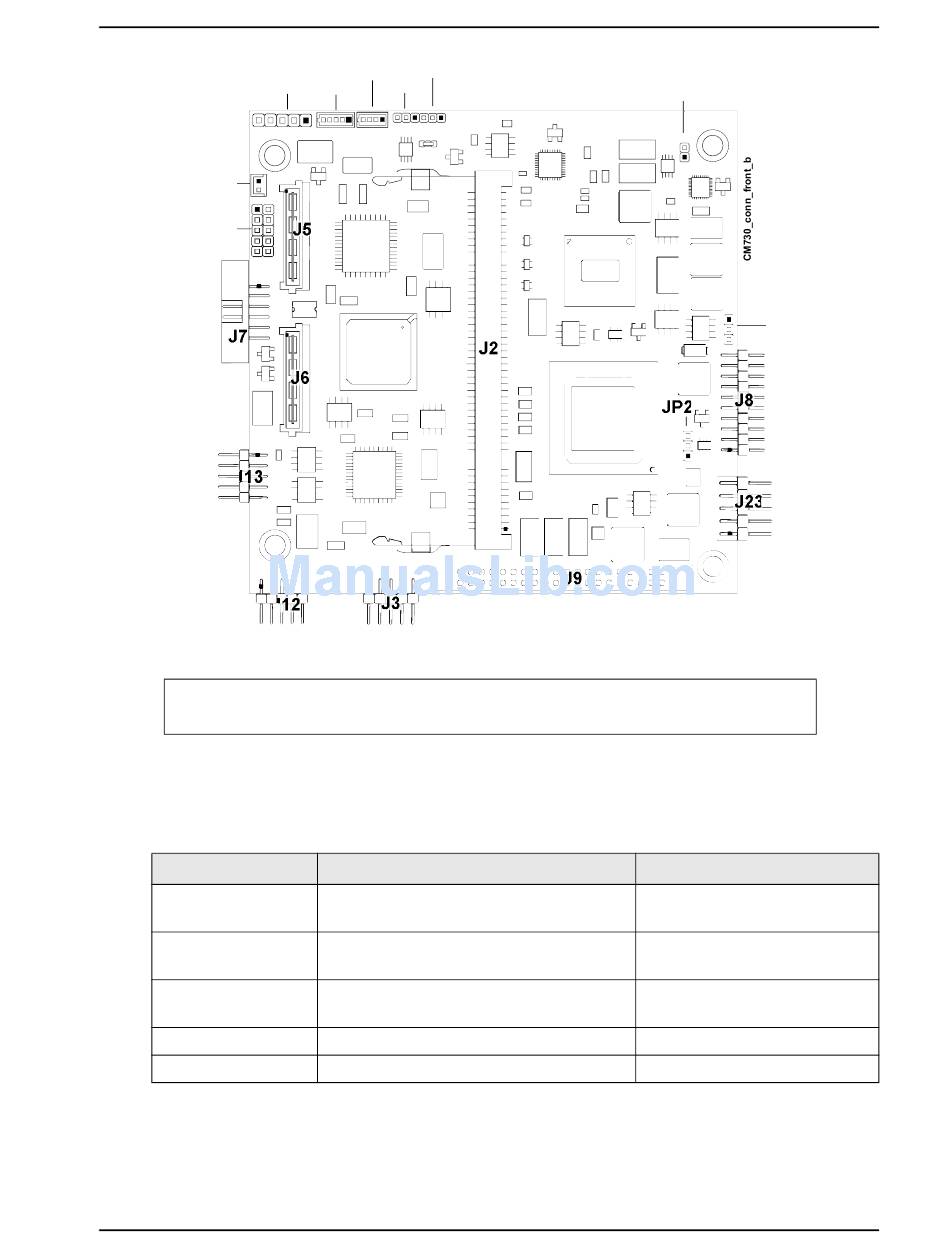

Figure 2-6. Header, Connector, Socket Locations (Front View)

Installed
+3.3 Volts (Pins 1-2) Default
Enable HDD master, CF slave (Pins 1-2)
Default
+5 Volts (Pins 1-2)
For manufacturing only
Normal (pins 1-2) Default
Reference Manual
J2
J9
Figure
2-6.
Removed/Installed
+5 Volts (Pins 2-3)
Enable HDD slave, CF master
(Pins 2-3)
+3.3 Volts (Pins 2-3) Default
For manufacturing only
Clear CMOS Setup (pins 2-3)
Product Overview
JP9
JP4
J8
J23
11
