Table 2-2. Header, Connector, and Socket Descriptions (Continued)
J12 – USB0 & USB1
J13 – USB2 & USB3
J17 – BATT
J20 – GPIO
J23 – Power In
J25 – Utility
J26 – Ethernet LED
J27 – SMBus
NOTE The pinout tables in Chapter 3 of this manual identify pin sequence using the
following methods: A 20-pin header with two rows of pins, using odd/even
numbering, where pin 2 is directly across from pin 1, is noted as 20-pin, 2 rows, odd/
even (1, 2). Alternately, a 20-pin connector using consecutive numbering, where pin
11 is directly across from pin 1, is noted in this way: 20-pin, 2 rows, consecutive (1,
11). The second number in the parenthesis is always directly across from pin 1. See
Figure
20-pin, two rows,
Odd/Even, (1, 2)
10
Front 10-pin, 0.079" (2mm), right-angle header for USB0 and USB1
ports
Front 10-pin, 0.079" (2mm), right-angle header for USB2 and USB3
ports
Front 2-pin, 0.049" (1.24mm), shrouded header for power from
external battery
Front 10-pin, 0.079" (2mm) header for General Purpose I/O
Front 10-pin, right-angle header for receiving external power
Front 5-pin header for Power Button, Reset, and Speaker
Front 4-pin, 0.049" (1.25mm) header for external Gigabit Ethernet
LED
Front 5-pin, 0.049" (1.25mm) header for Clock, Data, and Power I/O
2-5.
9 5 3
19 7 1
20 10 8 6 4 2

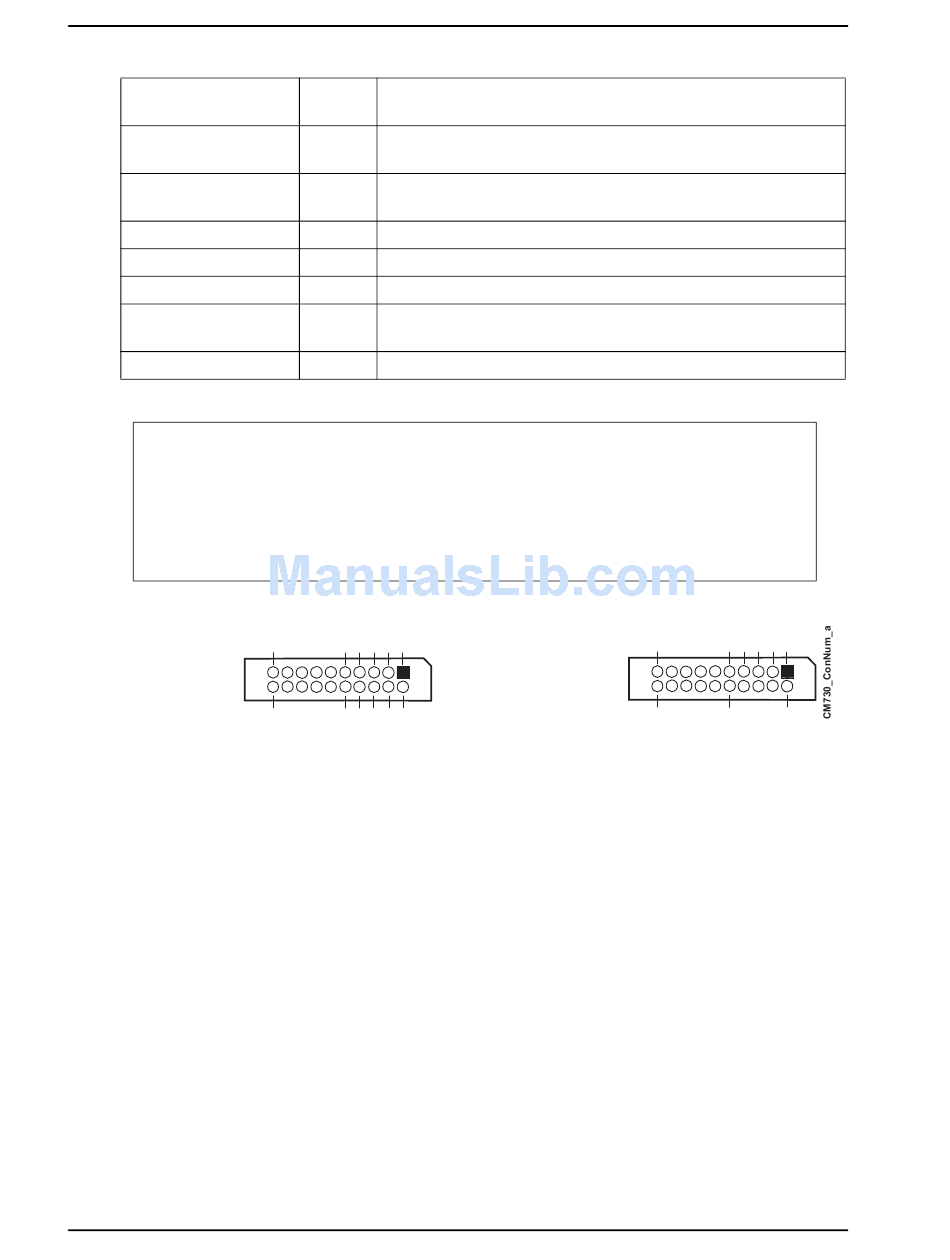

Figure 2-5. Connector Pin Identifications
