2-3.2 To Remove a DIMM:

Press down the holding latches on both sides of socket and the
module will be released from the DIMM socket.

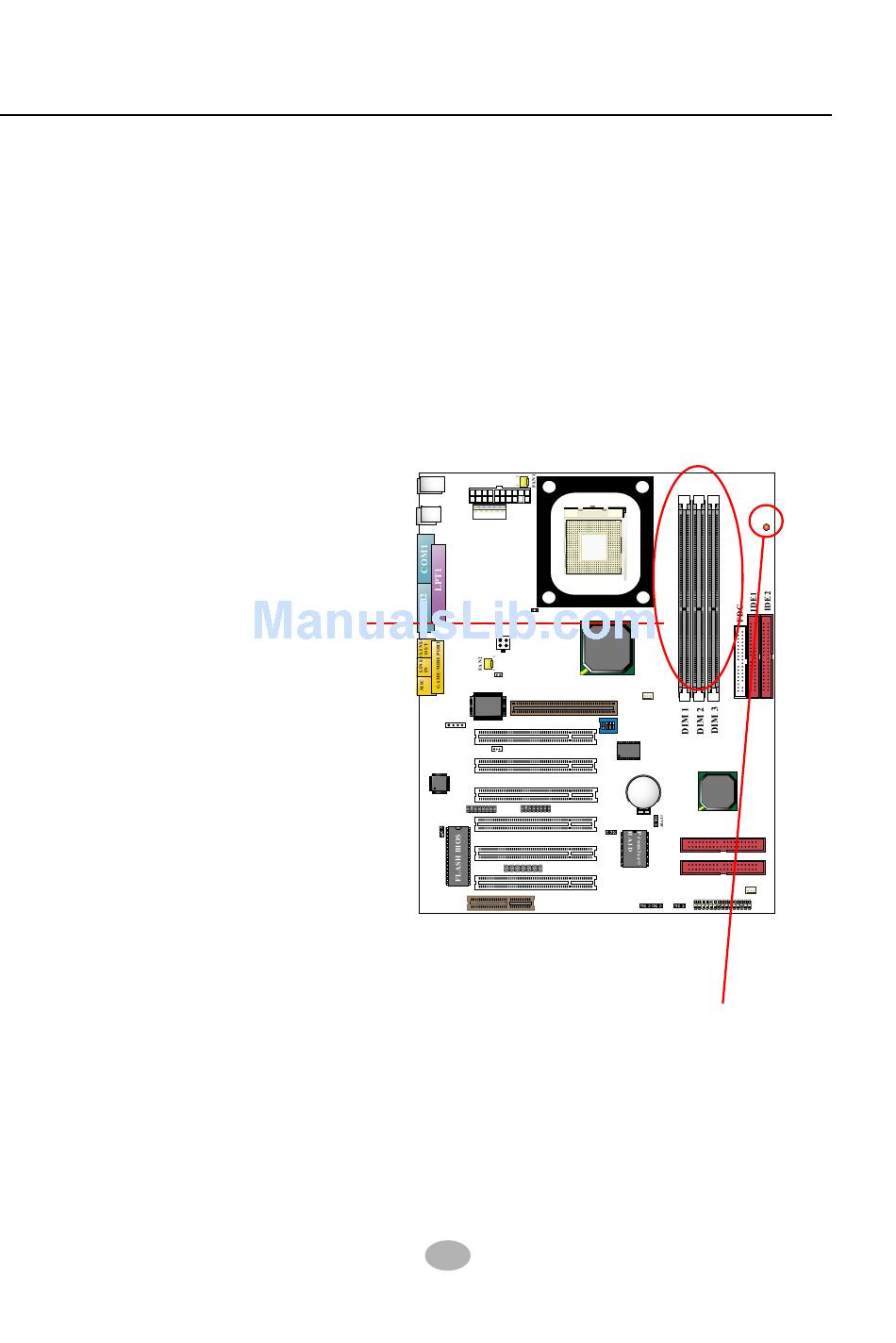

2-3.3 Indicator ZD1 DIMM Socket On:

An indicator ZD1 is designed on board. Whenever system is started or is
in STR status (Suspend to RAM), all the DIMM sockets on board will also
get powered on with the set voltage, resulting in ZD1 lighting up. This ZD1
indicator is to warn users that, whenever DIMM socket is powered, no
memory module should be removed from or added into it.
DDR DIMM Sock-
ets (184-pin)
Chapter 2 Hardware Setup
CN2
Mouse
PS/2
(on top)
PS/2 K/B
(underside)
USB0
mPGA478B
(on top)
CN3 Aux ATX
USB1 (underside)
RT1
J4 ATX12V
1 2
3 4
RT2
AGP 4X
LPC I/O
Controller
PCI 1
1 4
CD_IN1
1 3 WOL1
PCI 2
AC'97
Codec
AC'97
PCI 3
Codec
16 16
PCI 4
1
1 USB2 USB3
JP11
1
PCI 5
PCI 6
SCR1
CNR
DIMM Power On Indicator
21
ZD1
1
VIA
VT8753
P4X266
FAN3
1 3
ON DIP
1 2 3 4
SW1
Clock
Generator
Li
VIA
Battery
VT8233
1
1 3
IDE4
JP12
IDE3
FAN4
1 3
HDD/LED IR PWR SMI
JP15 JP16 JP18
30
NJP1
1
1 3 1 3 1 3
SUS LED
SPK RST PWR LED
ZD1
