Series SL-85DRV

2-7.2 JBAT1 Clear CMOS

When you have problem with rebooting your
system, you can clear CMOS data and restore
it to default value. To clear CMOS with Jumper
JBAT1, please follow the steps below:
(1) Power off system;
(2) Set JBAT1 to Pin 2-3 closed.
(3) After 2 or 3 seconds, return the
JBAT1 setting to Pin1-2 closed.
(4) CMOS data are restored to default.
Remember never clear CMOS when
system power is on.

2-7.3 Jp12 RAID Controller Select:

On board SL-85DRV
F o r t h e m a i n b o a r d s c a r r y i n g P r o m i s e R A I D
controller, JP12 at
the RAID functions so that users can start to in-
stall the RAID arrays and RAID drivers. If JP12
is set at Pin2-3 closed, the RAID controller is
disabled.

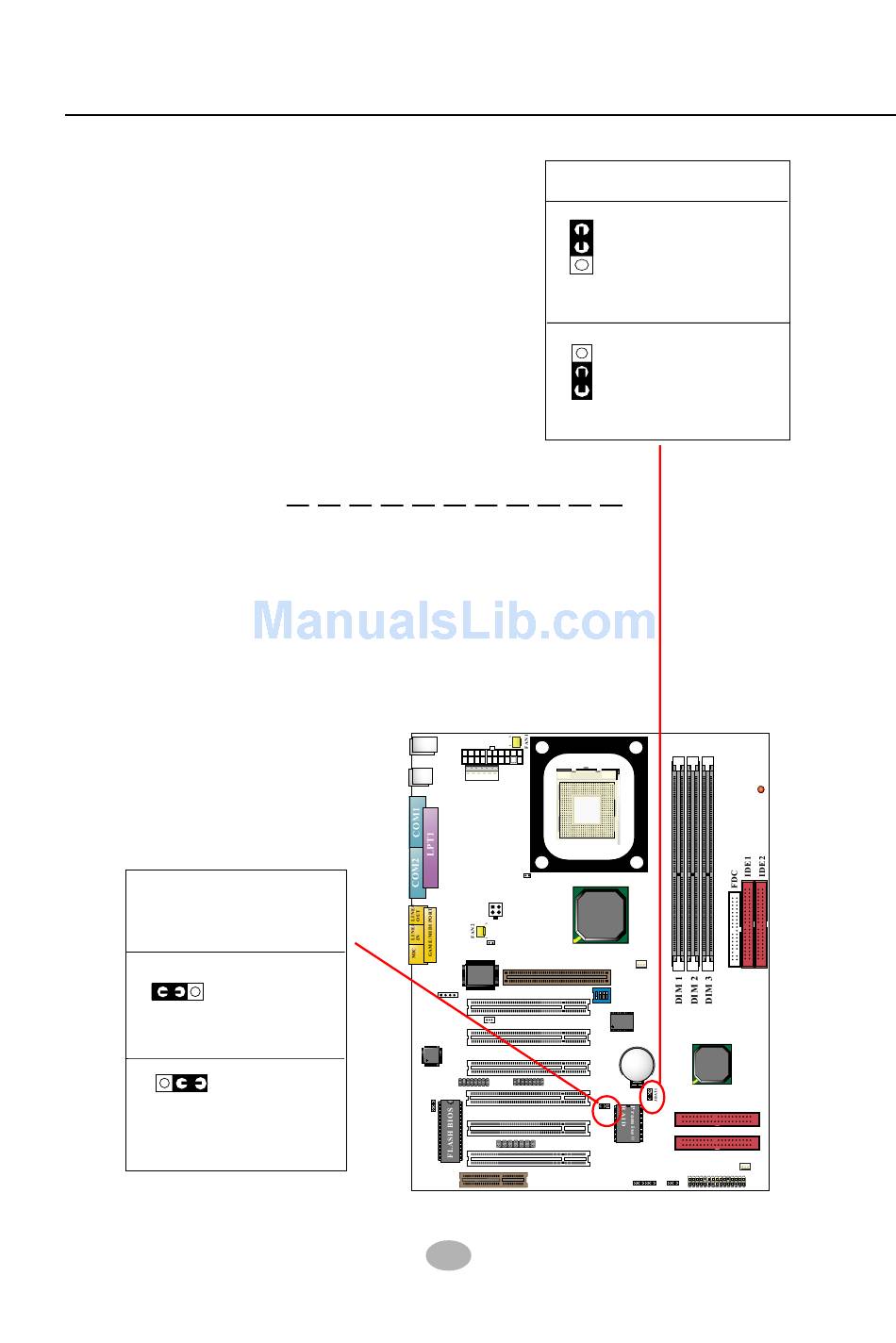

Jp12
RAID Controller Select
1
Enabled
(default)
1-2
closed
1
Disabled
2-3
closed
+ +
and SL-85DRV -X only.
