3-5 Install Driver for Promise RAID Controller

Promise RAID Controller is built on SL-85DRV
Before installing the driver for Promise RAID Controller, please check the
following points:

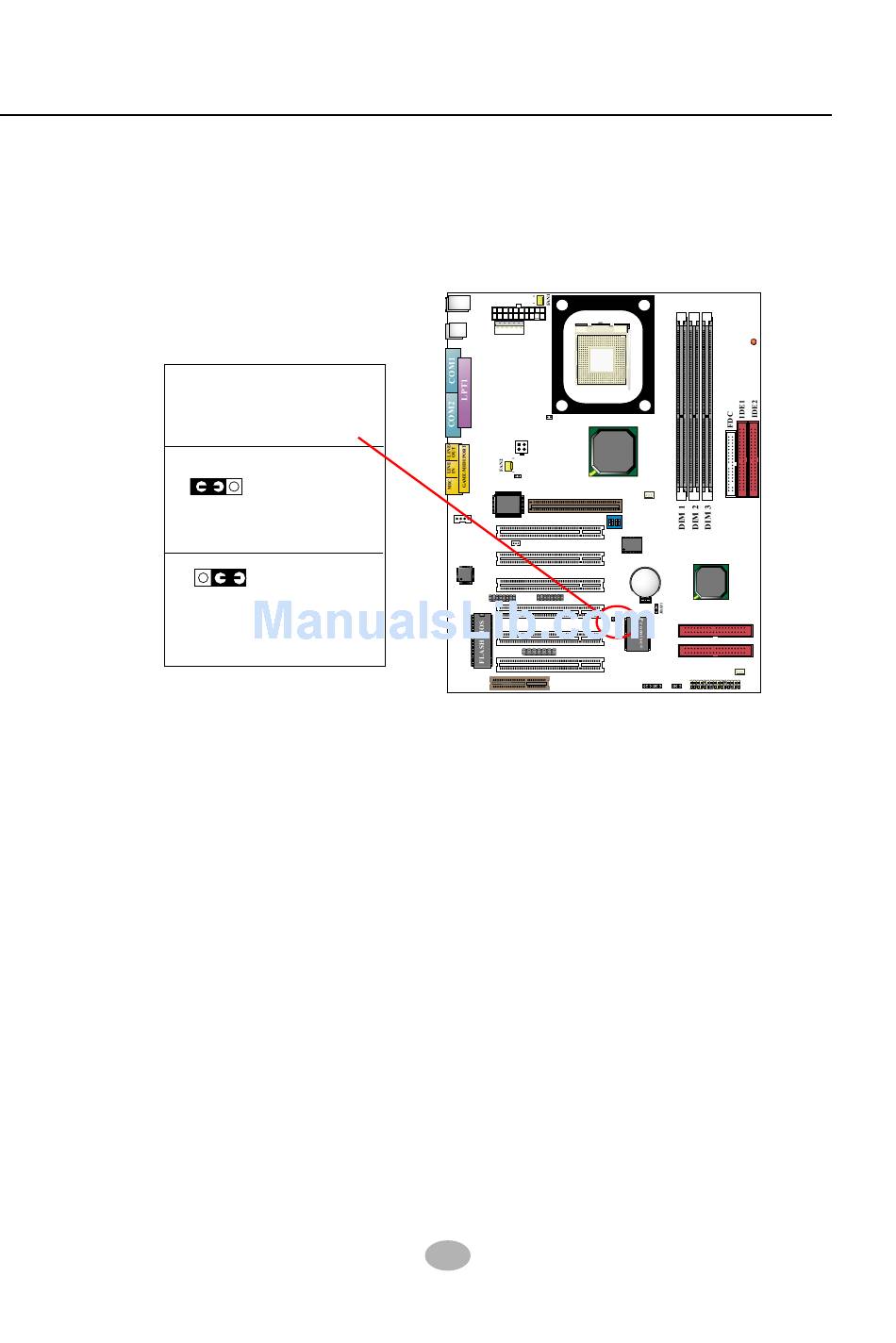

(1) Set up Jumper Jp12 on board to enable Promise RAID Controller.
Jp12
RAID Controller Select
1
1-2
closed
1
2-3
closed
(2) Get ready the floppy diskette containing the FastTrak100-Lite Drivers
for various Windows systems.
(3) The RAID Controller Drivers installation procedures will differ among
different operating systems and situations. Please refer to Chapter 5
of this manual to install your RAID drivers and disk arrays.
