SOLTEK SL-85DRV User Manual page 24

Series SL-85DRV

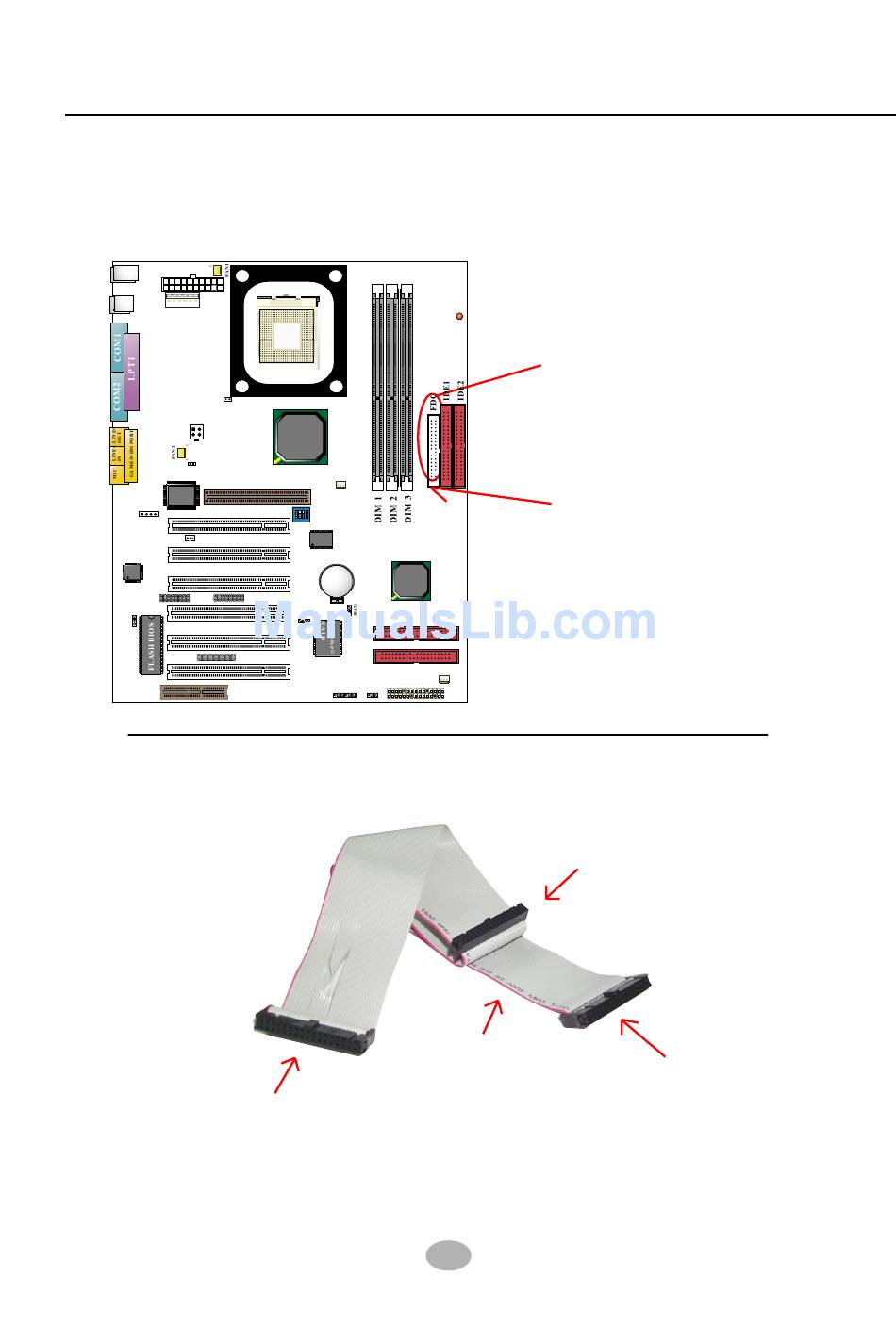

To install FDD (Floppy Disk Drive), you should connect the end of cable
with single connector to the board , and connect the other end with two
plugs to the floppy drives.
CN2
PS/2 Mouse
(on top)
PS/2 K/B
(underside)
USB0
(on top)
CN3 Aux ATX
USB1 (underside)
RT1
J4 ATX12V
1 2
3 4
RT2
LPC I/O
Controller
PCI 1
1 4
CD_IN1
1 3 WOL1
PCI 2
AC'97
Codec
AC'97
PCI 3
Codec
16 16
PCI 4
1 USB2 1 USB3
JP11
1
PCI 5
PCI 6
SCR1
CNR
To 1st Floppy Drive
mPGA478B
1
VIA
VT8753
P4X266
FAN3
AGP 4X
1 3
ON DIP
1 2 3 4
SW1
Clock
Generator
Li
VIA
Battery
VT8233
1
1 3
IDE4
JP12
IDE3
FAN4
1
HDD/LED IR PWR SMI
JP15 JP16 JP18
1
3 1 3 1 3
1
SPK RST PWR LED SUS LED
FDD Cable
24
ZD1
FDC
Pin 1 (to Red Line)
Floppy Disk Drive Connector:
Orient the red line on the
floppy ribbon cable to Pin1.
3
30
NJP1
To 2nd Floppy Drive
red line
To mainboard
