Series SL-85DRV

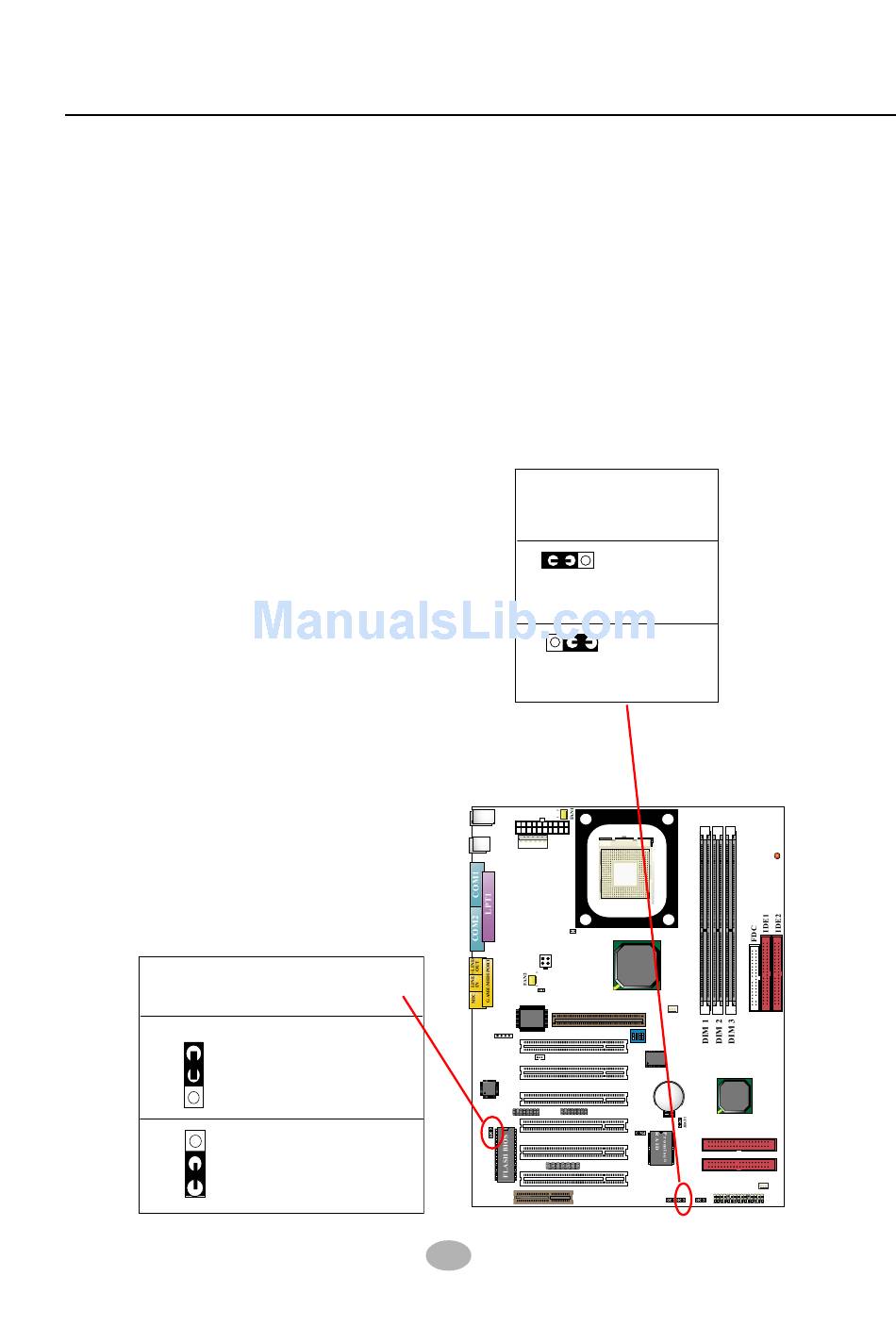

2-7.5 Jp16 Suspend to RAM (STR)

Jp16 is designed to support the S3 mode (Suspend to RAM) of ACPI
(Advanced Configuration and Power interface) which is usually inte-
grated in such operating systems as Win 98se or Win 2000.
•
To enable the STR function, you must first set up Jp16, and then enter
"
BIOS Setup", then "Power management Setup" to choose the item
"ACPI Suspend Type". In this item, choose S3(STR) mode to enable
Suspend to RAM function.
•
With STR enabled, you power off your system with Standby mode, and
you can reboot your system directly to the screen of power-off without
going through the reboot procedures.

2-7.5 Jp11 Flash ROM Write Protection Select

Jp11 is designed to support the
"Flash ROM write Protection"
function when you boot your system.
Setting Jp11 1-2 closed will protect
your Flash ROM from virus attack
every time you boot your system.
Flash ROM Write
Jp11
1
1-2
closed
1
2-3
closed
Protection
Enabled
(default)
Disabled
30
Jp16
Suspend to RAM
1
1-2
Disabled
closed
1
Enabled
2-3
(default)
closed
CN2
Mouse
PS/2
(on top)
PS/2 K/B
(underside)
USB0
mPGA478B
(on top)
CN3 Aux ATX
USB1 (underside)
RT1
J4 ATX12V
VIA
1 2
3 4
VT8753
P4X266
RT2
AGP 4X
LPC I/O
Controller
ON
DIP
PCI 1
1 4
1 2 3 4
CD_IN1
SW1
1 3 WOL1
PCI 2
AC'97
Codec
AC'97
PCI 3
Codec
16 16
PCI 4
1
1 USB2 USB3
JP11
1
1
JP12
PCI 5
PCI 6
SCR1
CNR
ZD1
1
FAN3
1 3
Clock
Generator
Li
VIA
Battery VT8233
1
3
IDE4
IDE3
FAN4
1 3
SMI
HDD/LED IR PWR
JP15 JP16 JP18
30
NJP1
1
1 3 1 3 1 3
SPK RST PWR LED SUS LED
