Series SL-85DRV

2-1 CPU Pentium 4 Installation with Socket 478

This series of mainboards is built with CPU Socket 478 (with 478 pins)
supporting the Intel Pentium 4 CPU:
• Follow the steps described in this section to install the 478-pin Pentium 4
CPU into the on board Socket 478.
• After installation of Pentium 4 CPU, you must also install the specific
Pentium 4 CPU fan designed in tandem with this CPU. This CPU Fan
installation is described in next section.

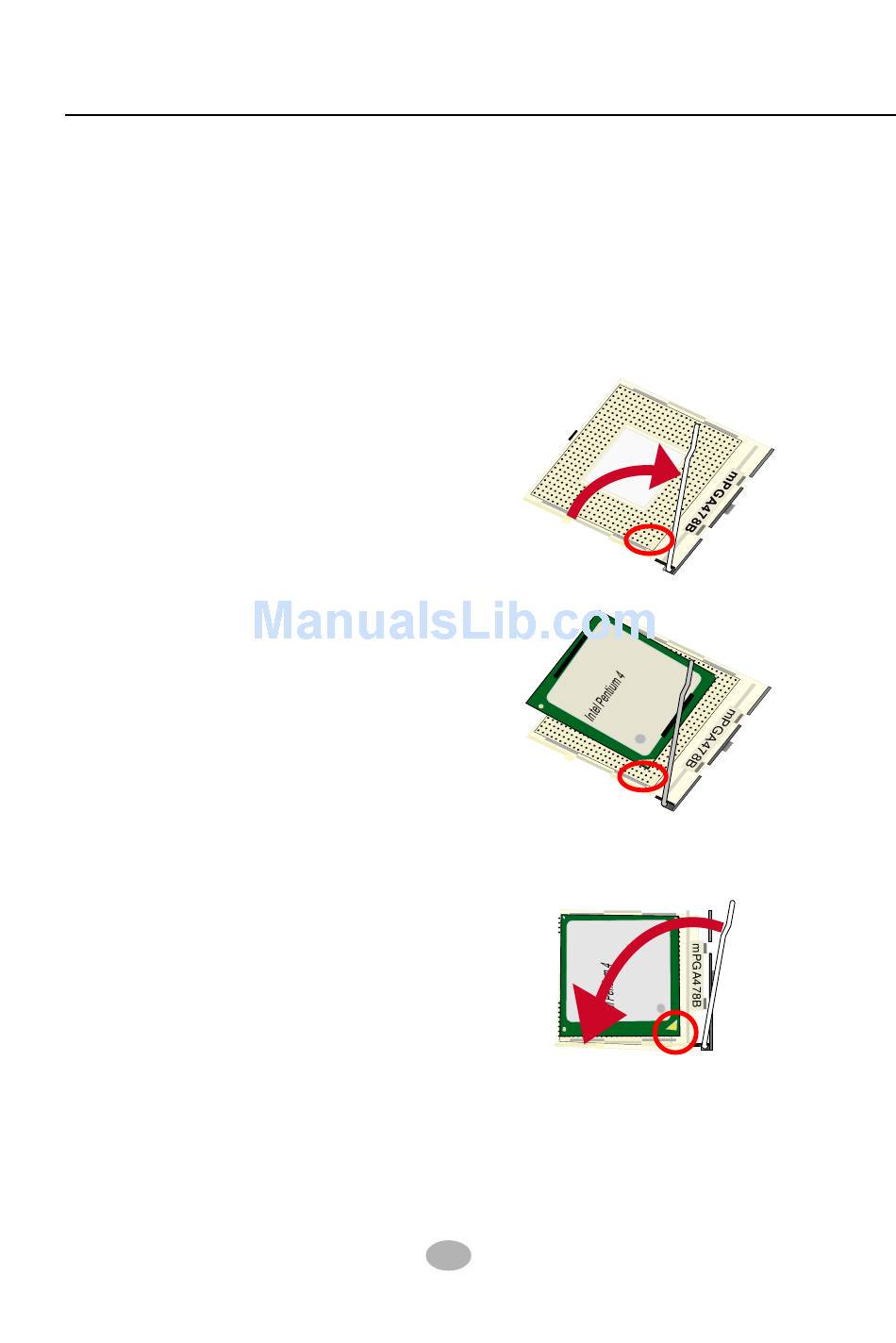

First pull sideways the lever of
1.
Socket 478, and then turn it up
0
90 so as to raise the upper layer
of the socket from the lower
platform.
Configure Pin 1 of CPU to Pin
2.
1 of the Socket, just as the
way shown in the diagram on
the left. Adjust the position of
CPU until you can feel all
CPU pins get into the socket
with ease.
Make sure that all CPU pins
3.
have completely entered the
socket and then lower down the
lever to lock up CPU to socket.
Pin 1
Pin 1
18
Pin 1
