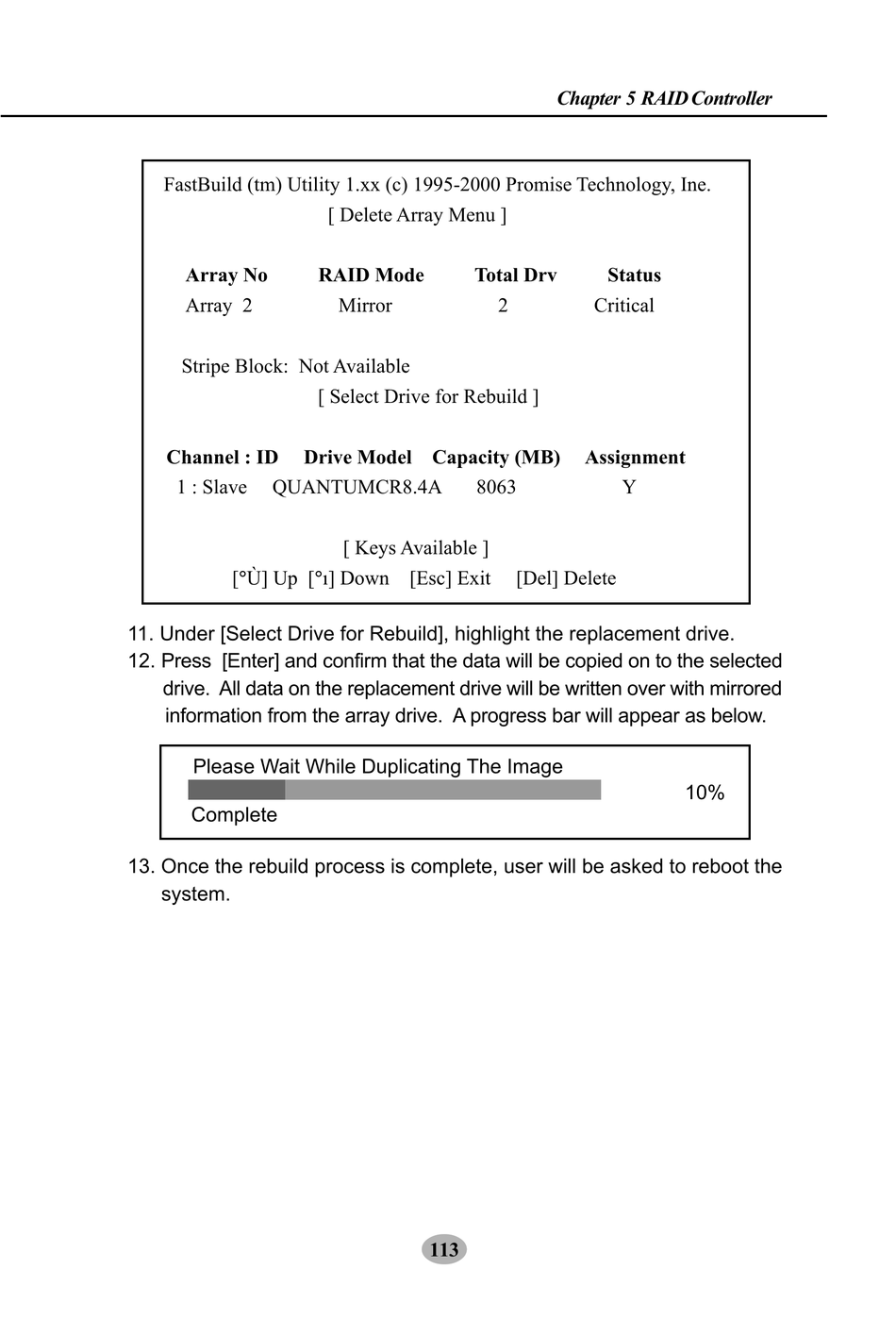

SOLTEK SL-85DRV User Manual page 113

FastBuild (tm) Utility 1.xx (c) 1995-2000 Promise Technology, Ine.
Array No
Array 2
Stripe Block: Not Available
Channel : ID
1 : Slave
[°Ù] Up [°ı] Down [Esc] Exit
11. Under [Select Drive for Rebuild], highlight the replacement drive.
12. Press [Enter] and confirm that the data will be copied on to the selected
drive. All data on the replacement drive will be written over with mirrored
information from the array drive. A progress bar will appear as below.
= Please Wait While Duplicating The Image
Complete
13. Once the rebuild process is complete, user will be asked to reboot the
system.
[ Delete Array Menu ]
RAID Mode
Mirror
[ Select Drive for Rebuild ]
Drive Model Capacity (MB)
QUANTUMCR8.4A
[ Keys Available ]
113
Chapter 5 RAID Controller
Total Drv Status
2 Critical
Assignment
8063 Y
[Del] Delete
10%
