CDM-800 Gateway Router
Ethernet Management
5.4.4.4
Configuration Pages
The 'Configuration' pages (Figure 5-8 through Error! Reference source not found.) are used
to configure all router parameters. Click the Interface, Mod, ARP, Routing, or WAN tab to
continue.
5.4.4.4.1
Configuration | Interface
Click the FE Mgt, GE-1 or GE-2 tab to continue.
5.4.4.4.1.1
Configuration | Interface | FE Mgt
The 'Configuration | Interface | FE Mgt' page (Figure 5-8) permits the user to configure the FE
(10/100 BaseT Fast Ethernet) Management (M&C) port.
FE – Management Interface
MAC Address – This parameter is read-only and cannot be changed.
IP Address / CIDR Mask – Enter the IP Address and CIDR (Classless Inter-Domain Routing)
Subnet Mask using this box (the valid range for the Subnet Mask is 8-30).
Link Configuration – Use the drop-down menu to select the line speed and duplex setting for the
CDM-800's FE interface. The available options are:
• Auto
Note: Auto is the recommended configuration selection.
Negotiated Link Mode – The read-only actual negotiated line speed and duplex setting for the
FE interface is displayed here. The viewable settings are:
• 100 BaseT / Half Duplex
• 100 BaseT / Full Duplex

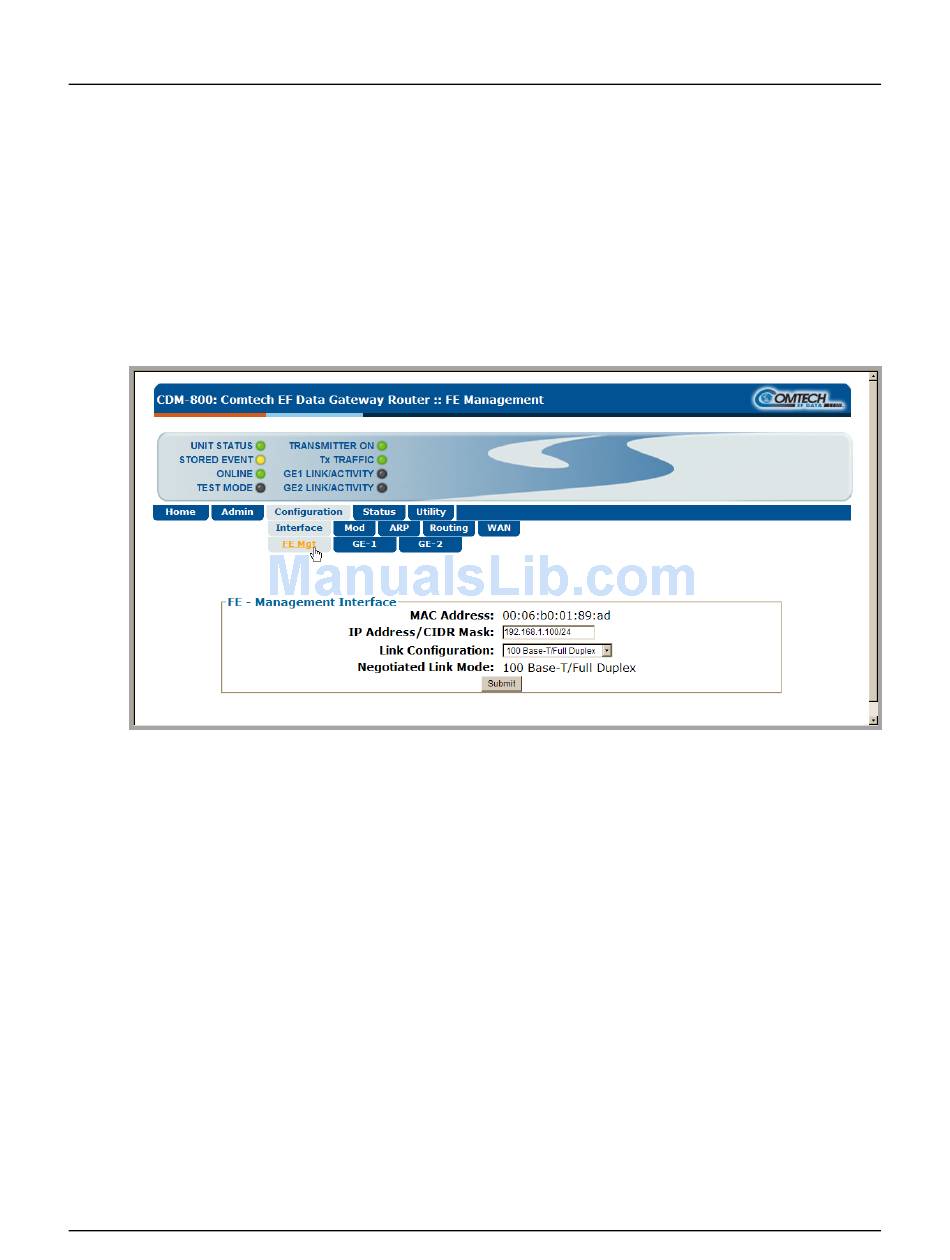

Figure 5-8. Configuration | Interface | FE Mgt Page
• 100 BaseT / Full Duplex
• 100 BaseT / Half Duplex
• 10 BaseT / Half Duplex
• 10 BaseT / Full Duplex
5–12
Revision 0
MN-CDM800
• 10 BaseT / Full Duplex
• 10 BaseT / Half Duplex
