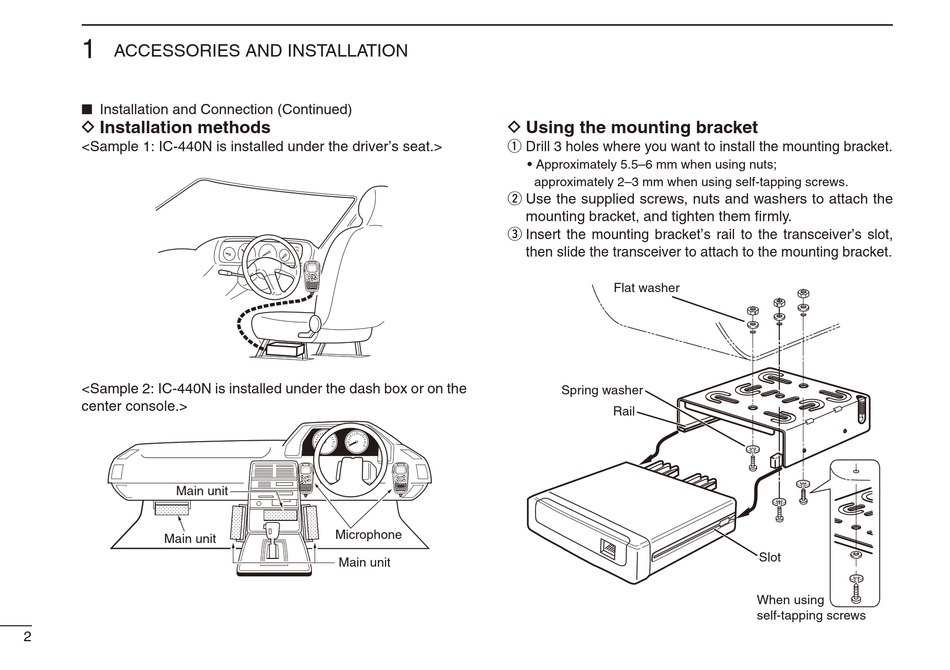

ACCESSORIES AND INSTALLATION
■
Installation and Connection (Continued)
D

Installation methods

<Sample 1: IC-440N is installed under the driver's seat.>
<Sample 2: IC-440N is installed under the dash box or on the
center console.>
Main unit
Main unit
2
D
q
w
e Insert the mounting bracket's rail to the transceiver's slot,
Microphone
Main unit

Using the mounting bracket

Drill 3 holes where you want to install the mounting bracket.
•
Approximately 5.5–6 mm when using nuts;
approximately 2–3 mm when using self-tapping screws.
Use the supplied screws, nuts and washers to attach the
mounting bracket, and tighten them fi rmly.
then slide the transceiver to attach to the mounting bracket.
Flat washer
Spring washer
Rail
Slot
When using
self-tapping screws
