13.5 Relay Interface Module

An optional Relay Interface Module (RIM) uses relay contact closures to indicate
the operating status and alarm condition of the Parallel Capacity/Redundant
system . A maximum of two monitoring accessories (RMPs, RIMs, or SCMs) can
be installed. See Table 13---1 for the number of accessories permitted. Figure
13---2 shows the RIM with its four 15-pin connectors labeled J1 through J4.
The RIM can provide these signals:
·
UPS AVAILABLE
·
UPS OFF LINE
·
UTILITY FAILURE
·
BATTERY WEAK
13--4

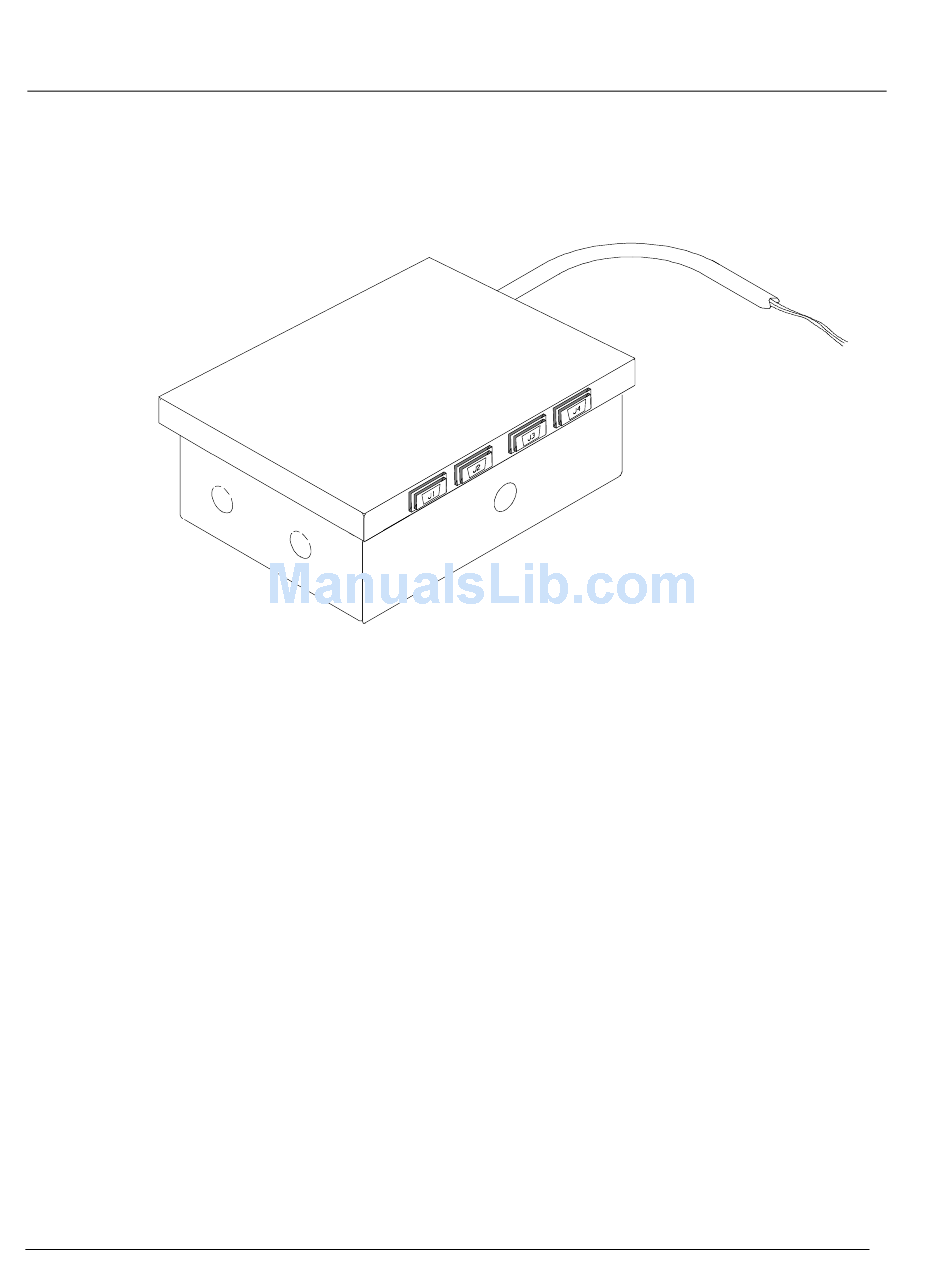

Figure 13 ---2. Relay Interface Module
(pins 1 and 12) Contacts are closed when the UPS is
offline.
(pins 3 and 13) Contacts are closed when the UPS is
operating in Normal mode.
(pins 6 and 15) Contacts are closed when Utility Failure is
detected.
(pins 5 and 14) Contacts are closed when approximately
2 minutes of battery time is remaining, before the critical
load is lost.
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
164201244 REV. D 030101
