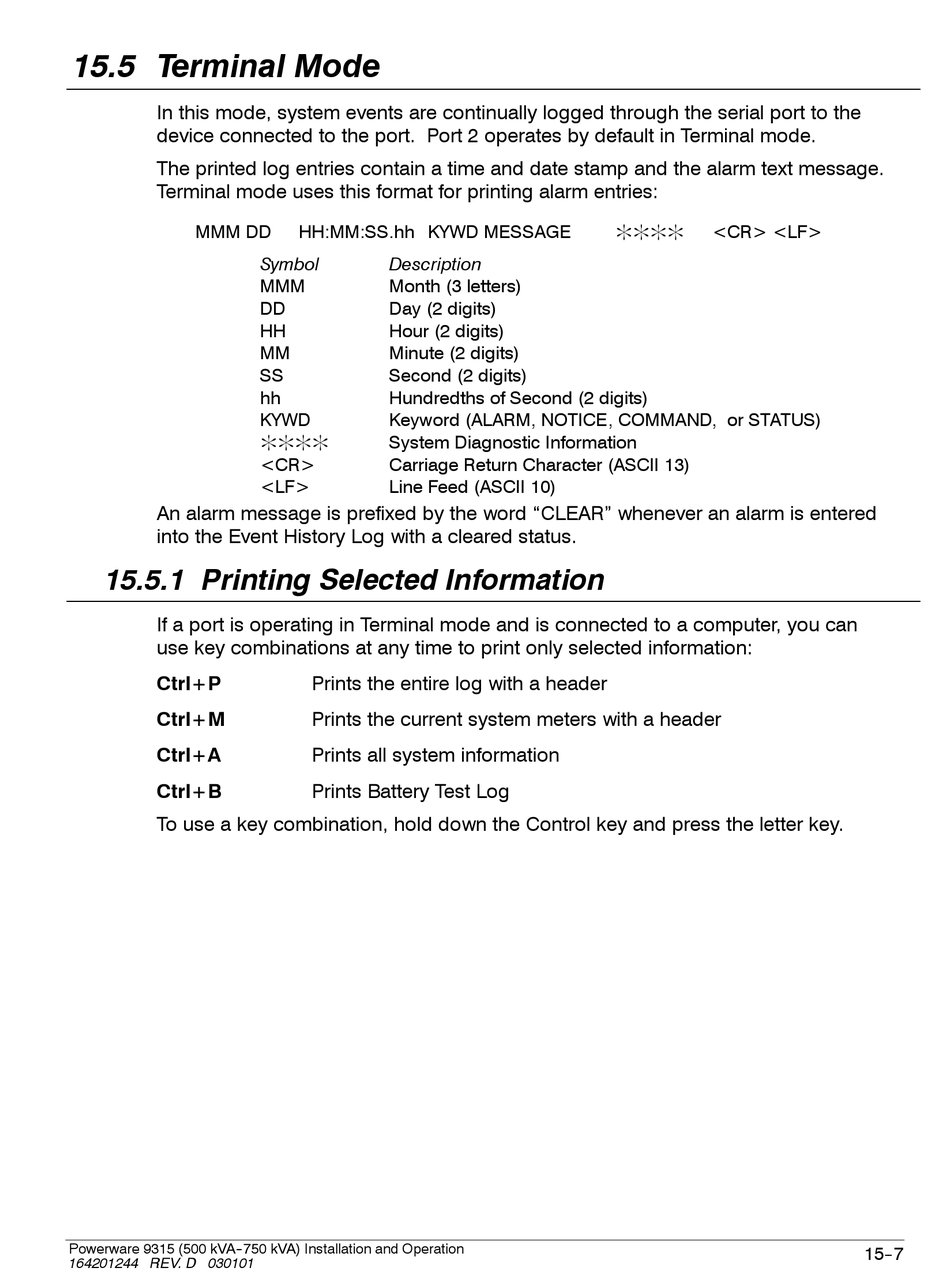

15.5 Terminal Mode

In this mode, system events are continually logged through the serial port to the
device connected to the port. Port 2 operates by default in Terminal mode.
The printed log entries contain a time and date stamp and the alarm text message.
Terminal mode uses this format for printing alarm entries:
MMM DD
An alarm message is prefixed by the word "CLEAR" whenever an alarm is entered
into the Event History Log with a cleared status.

15.5.1 Printing Selected Information

If a port is operating in Terminal mode and is connected to a computer, you can
use key combinations at any time to print only selected information:
Ctrl+P
Ctrl+M
Ctrl+A
Ctrl+B
To use a key combination, hold down the Control key and press the letter key.
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
164201244 REV. D 030101
HH:MM:SS.hh KYWD MESSAGE
Symbol Description
MMM Month (3 letters)
DD Day (2 digits)
HH Hour (2 digits)
MM Minute (2 digits)
SS Second (2 digits)
hh Hundredths of Second (2 digits)
KYWD Keyword (ALARM, NOTICE, COMMAND, or STATUS)
System Diagnostic Information
::::
<CR> Carriage Return Character (ASCII 13)
<LF> Line Feed (ASCII 10)
Prints the entire log with a header
Prints the current system meters with a header
Prints all system information
Prints Battery Test Log
<CR> <LF>
::::
15--7
