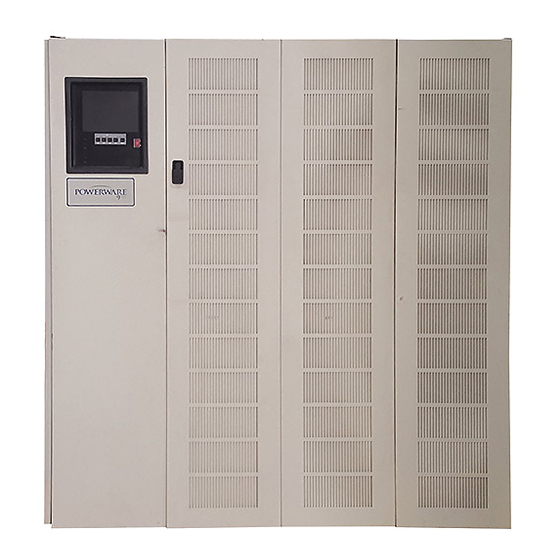

Powerware 9315 Operation Manual

200 kva -- 300 kva
Hide thumbs Also See for 9315:
Table of Contents

Advertisement

Quick Links

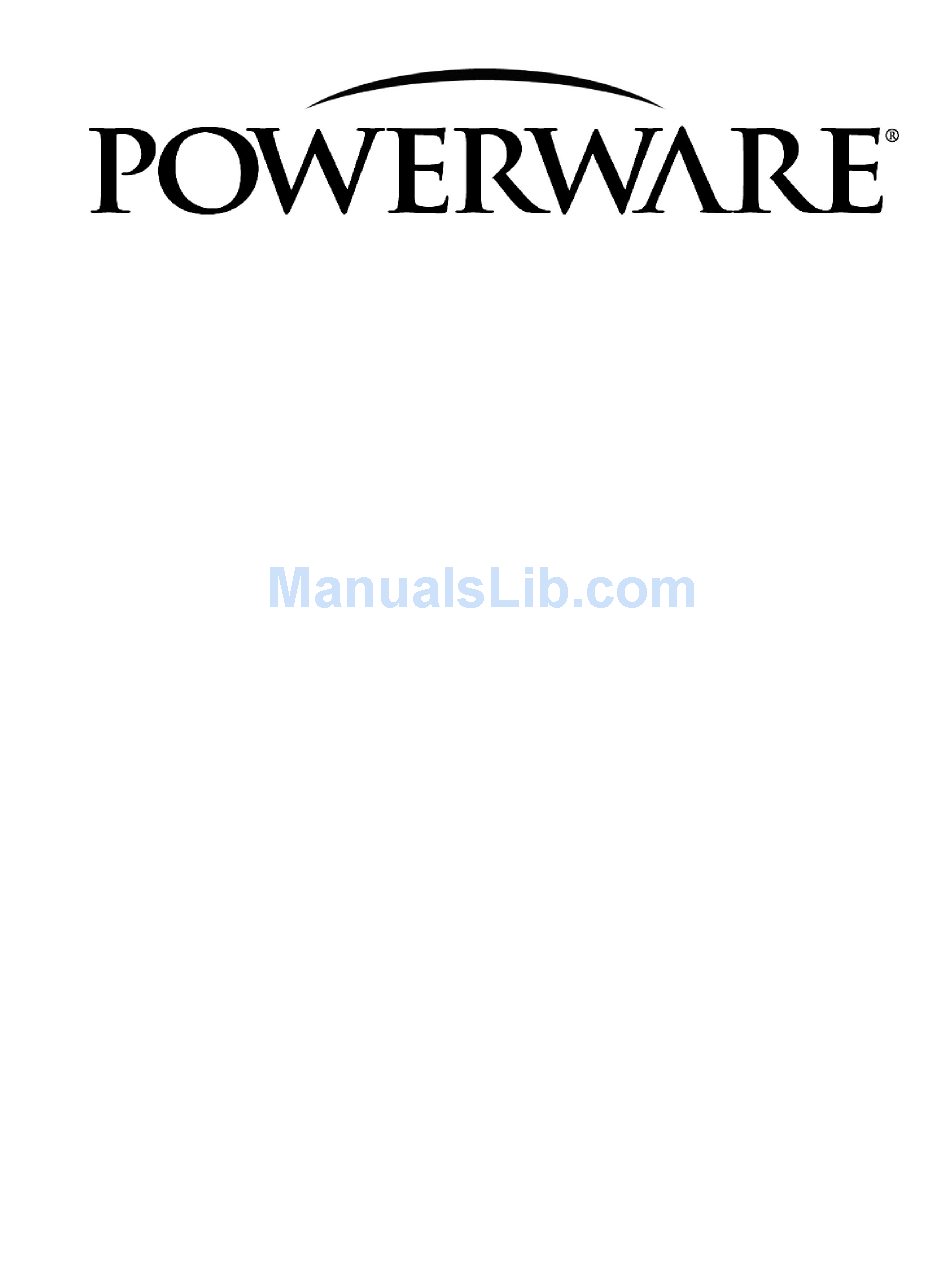

Download this manual See also: Operation & Installation Manual, Installation Manual
9
315
Uninterruptible Power
Supply
200 kVA - - 300 kVA
Operation
Manual
164201036 Rev. D
