12.
Standard breakers used in the UPS are rated for 65 KAIC, with optional breakers rated for
100 KAIC. To prevent cable whipping, secure cables as shown in figure below. Wrap line
cables together with nominal 3/8 inch (9.5mm) nylon rope or rope having a minimum
tensile strength of 2000 pounds (8896 N). Wrap line cables at 6 inches (152 mm) and
12 inches (305 mm) from the line terminals with five wraps. Wrap each additional 6 inch
(152.4 mm) interval with five wraps or 1 inch (25.4 mm) intervals with one wrap.

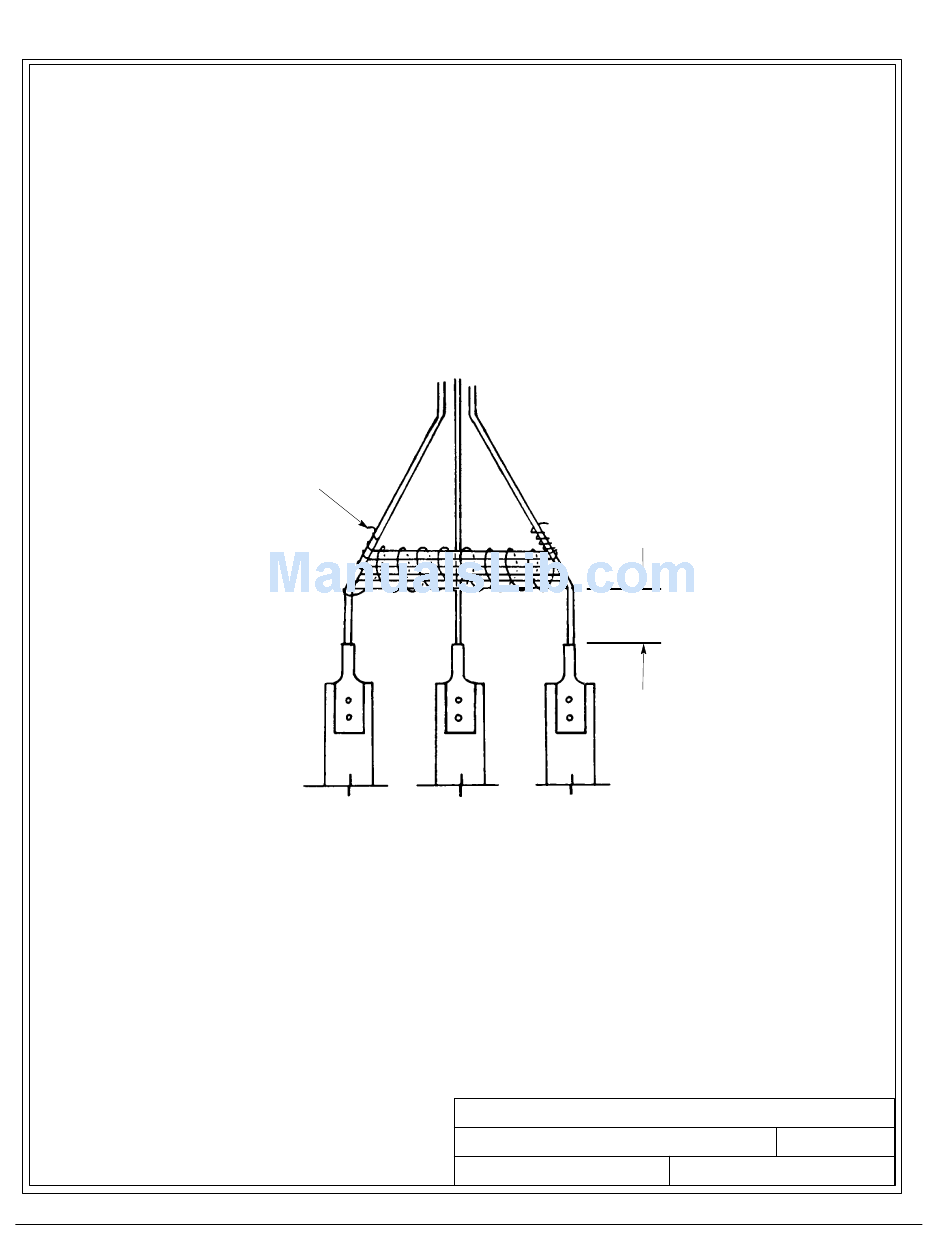

A ---8
SECUREMENT OF CABLE
NYLON ROPE ---
3/8 inch (9.5 mm)
diameter. Minimum
of five wraps.
6 inches (152 mm)
DESCRIPTION:
POWER WIRING INSTALLATION NOTES
DRAWING NO:
164201244---1
REVISION: C
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
SHEET:
7 of 10
DATE:
021500
164201244 REV. D 030101
