Powerware Uninterruptible Power Supply Installation And Operation Manual page 154

A ---18

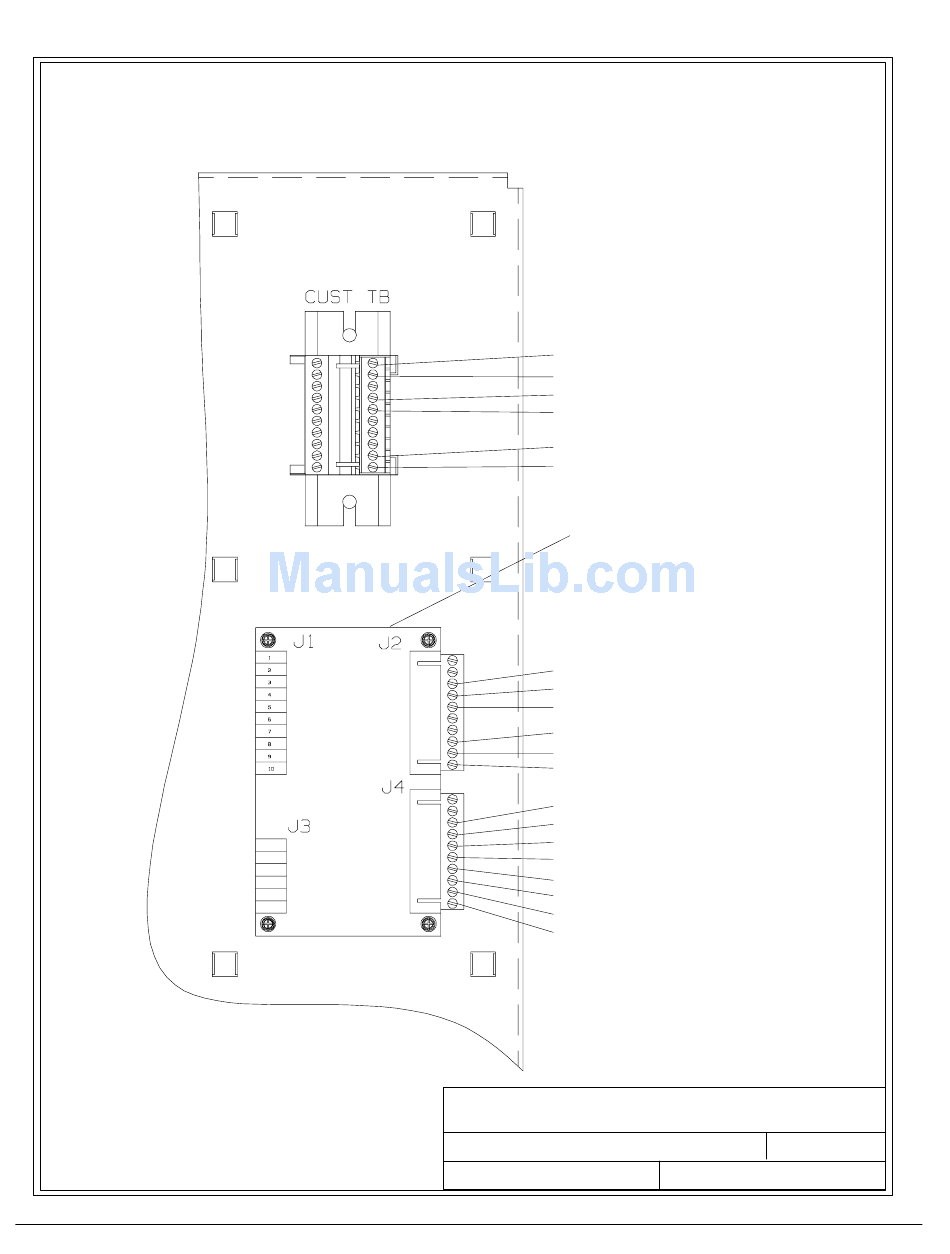

MBC CUSTOMER INTERFACE
(SINGLE MODULE SYSTEM ONLY)
1
10
CUSTJ2
10
1
10
1
CUSTJ4
CB3 AUX #2
CB3 AUX #2
CB4 AUX #2
CB4 AUX #2
REMOTE EMERGENCY POWER OFF (REPO)
REMOTE EMERGENCY POWER OFF (REPO)
COMMON
MBC I/O BOARD
RELAY #2 NO
RELAY #2 RETURN
RELAY #2 NC
RELAY #1 NO
RELAY #1 RETURN
RELAY #1 NC
BUILDING ALARM #4 RETURN
BUILDING ALARM #4
BUILDING ALARM #3 RETURN
BUILDING ALARM #3
BUILDING ALARM #2 RETURN
BUILDING ALARM #2
BUILDING ALARM #1 RETURN
BUILDING ALARM #1
DESCRIPTION: CUSTOMER INTERFACE WIRING
INSTALLATION NOTES
DRAWING NO:
164201244---2
REVISION:
A
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
SHEET:
7 of 8
DATE:
051599
164201244 REV. D 030101
