Powerware Uninterruptible Power Supply Installation And Operation Manual page 159

(See Drawing
164201244---2)
BATTERY/GENERATOR
INTERFACE
RS--- 232
RS--- 485
CUSTOMER
INTERFACE
C
E4--- 5
BATTERY
Breaker
(OPTIONAL)
BATTERY
STRING
NOTE 1: A bypass neutral feeder must be supplied
when the output neutral is used. If no
bypass neutral feeder is supplied, the
output neutral of the UPS is to be
connected to ground.
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
164201244 REV. D 030101
AC INPUT TO
UPS RECTIFIER
3 WIRE A--- B--- C
ROTATION
A
E1--- 3
INPUT/RECTIFIER
PCM 1
MIB
(CB1)
(OPTIONAL)
INPUT FILTER
(OPTIONAL)
n
INPUT
TRANSFORMER
Y
/
n
RECTIFIER
DC LINK
BATTERY
FUSE
POWER CONTROL MODULE (PCM)
(See Drawing 164201244---2)
BUILDING ALARMS
RELAY CONTACTS
"ON INVERTER"
"ON BYPASS"
MONITORING
REMOTE EPO
OUTPUT/INVERTER
CUSTOMER
PCM 2
INTERFACE
DC LINK
INVERTER
n
OUTPUT
TRANSFORMER
Y
OUTPUT FILTER
MOB (CB3)
TO GROUND

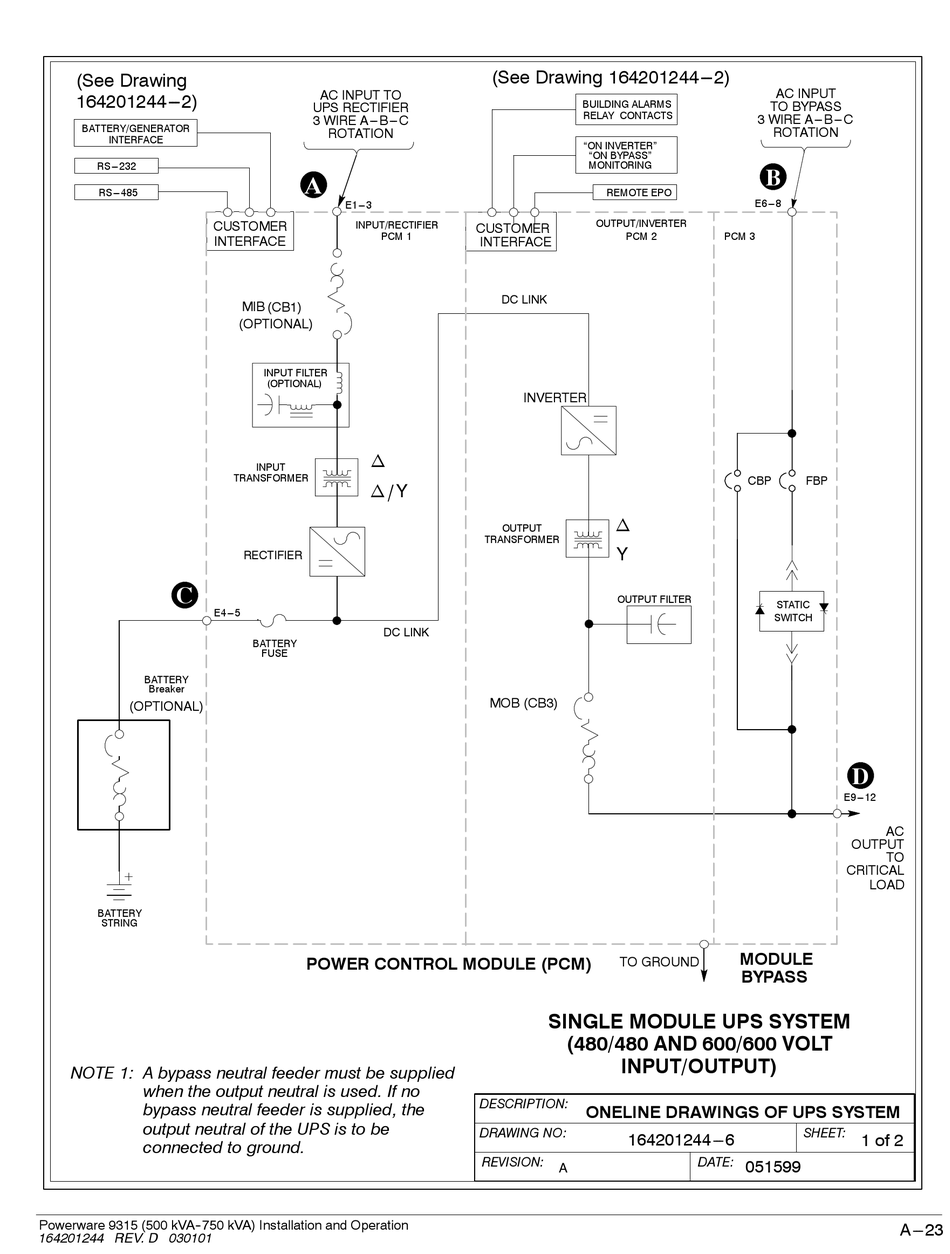

SINGLE MODULE UPS SYSTEM
(480/480 AND 600/600 VOLT
INPUT/OUTPUT)
DESCRIPTION:
ONELINE DRAWINGS OF UPS SYSTEM
DRAWING NO:
164201244---6
REVISION:
A
AC INPUT
TO BYPASS
3 WIRE A--- B--- C
ROTATION
B
E6--- 8
PCM 3
CBP FBP
STATIC
SWITCH
D
E9--- 12
OUTPUT
CRITICAL
LOAD
MODULE
BYPASS
SHEET:
1 of 2
DATE:
051599
AC
TO
A ---23
