REMOTE EMERGENCY POWER OFF (REPO)
REMOTE EMERGENCY POWER OFF (REPO) COMMON
NOTE: All building alarm inputs or remote features require an isolated normally open contact or switch
(rated at 24 VDC, 20 mA minimum) connected between the alarm input and common terminal
as shown. All control wiring and relay and switch contacts are customer provided.
NOTE: Regardless of assignment, alarms display as Building Alarm 1, Building Alarm 2,
etc., on Monitor Panel. Use twisted pair wires for each alarm input and common.
A ---16

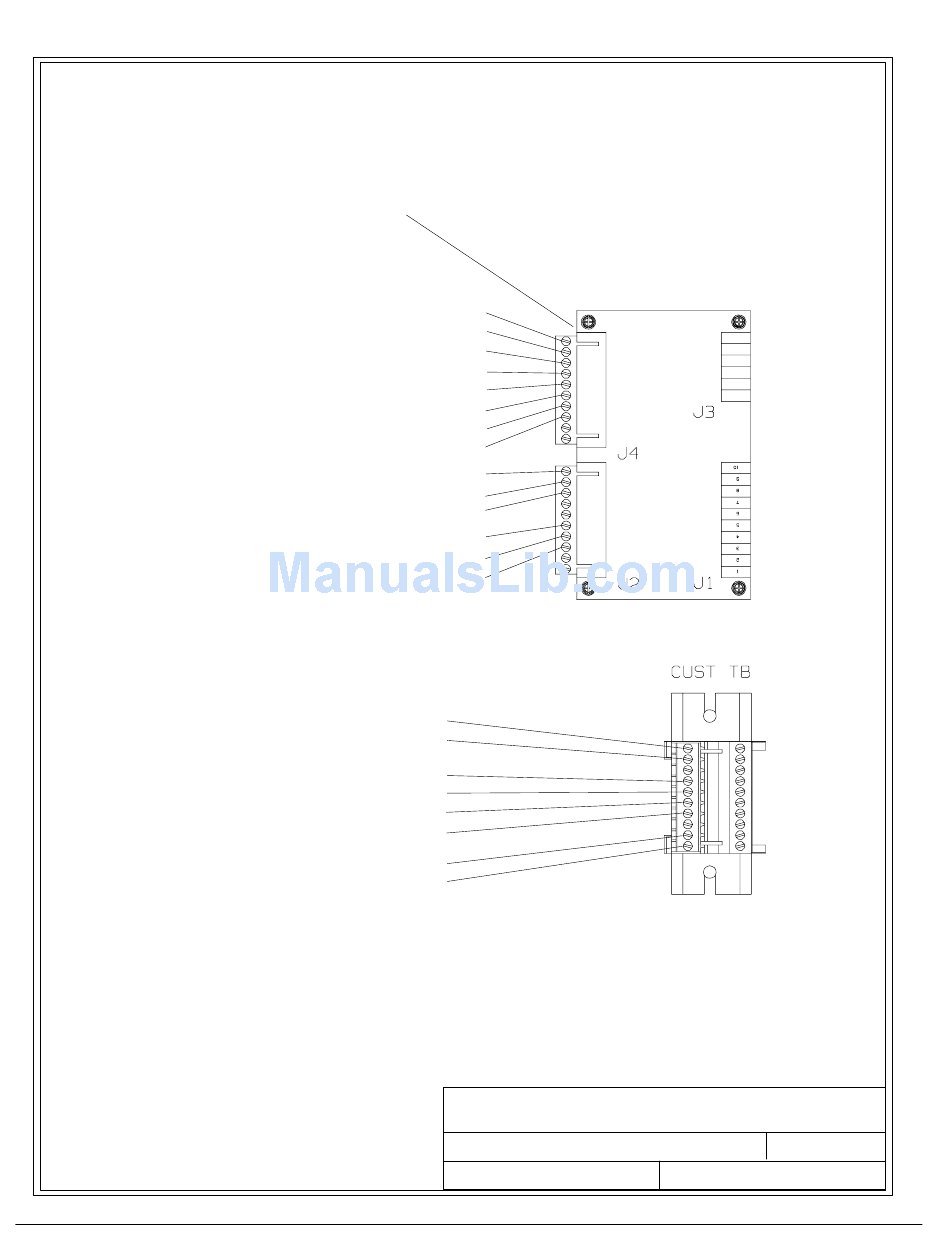

OUTPUT/INVERTER SECTION---PCM 2
CUSTOMER INTERFACE
INVERTER I/O BOARD
(USED ONLY IN MULTI-MODULE
APPLICATIONS USING AN SBM)
BUILDING ALARM #1
BUILDING ALARM #1--- RETURN
BUILDING ALARM #2
BUILDING ALARM #2--- RETURN
BUILDING ALARM #3
BUILDING ALARM #3--- RETURN
BUILDING ALARM #4
BUILDING ALARM #4--- RETURN
RELAY #1 RETURN
RELAY #2 RETURN
REMOTE TO UPS
REMOTE TO UPS
REMOTE TO BYPASS
REMOTE TO BYPASS
CB3--- AUX #2
CB3--- AUX #2
CUSTJ4
RELAY #1 NC
RELAY #1 NO
RELAY #2 NC
RELAY #2 NO
CUSTJ2
DESCRIPTION:
DRAWING NO:
REVISION:
A
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
1
10
1
10
CUSTOMER INTERFACE WIRING
INSTALLATION NOTES
164201244---2
DATE:
051599
164201244 REV. D 030101
10
1
SHEET:
5 of 8
