Installing a Relay
Interface Module
Installation Procedures
7.1
The optional Relay Interface Module (RIM) uses relay contact closures to indicate
the operating status and alarm condition of the UPS system. The module uses an
RS422 serial interface line and may support up to eight critical loads. A maximum
of two monitoring accessories (RMPs, RIMs, or SCMs) can be installed. Refer to
Table 6---1 for the number of accessories permitted. Figure 7---1 shows the RIM
with its four 15-pin connectors labeled J1 through J4. Refer to Drawing
164201244---11 in Appendix A for enclosure dimensions and wiring knockouts.
15-PIN D-SUB
CONNECTORS
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
164201244 REV. D 030101
Relay Interface Module
J1 J2 J3

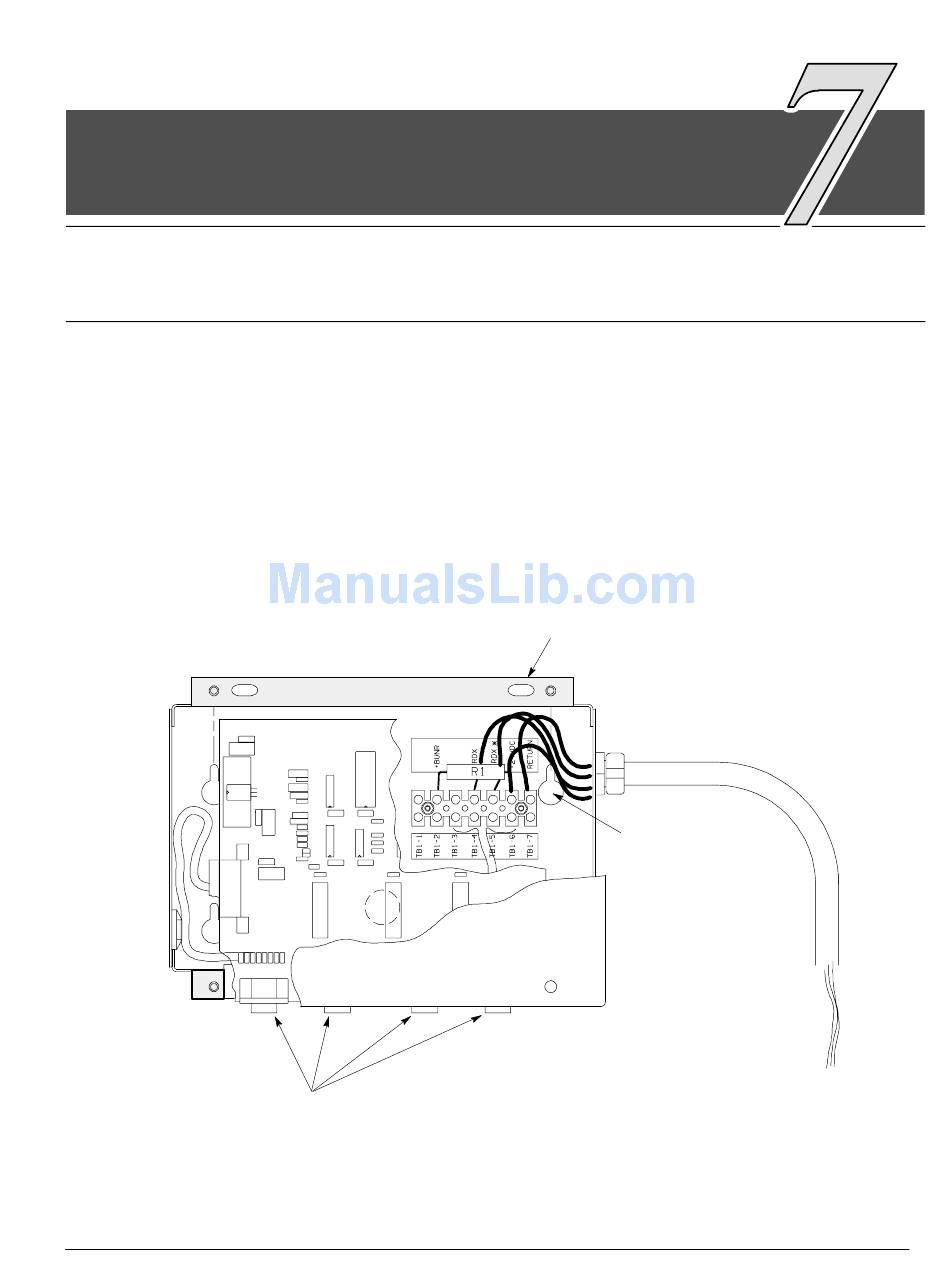

Figure 7 ---1. Relay Interface Module
FLUSH MOUNT
SURFACE
MOUNT
FOR HANGING
J4
7
CONTINUES
AT UPS
7--1
