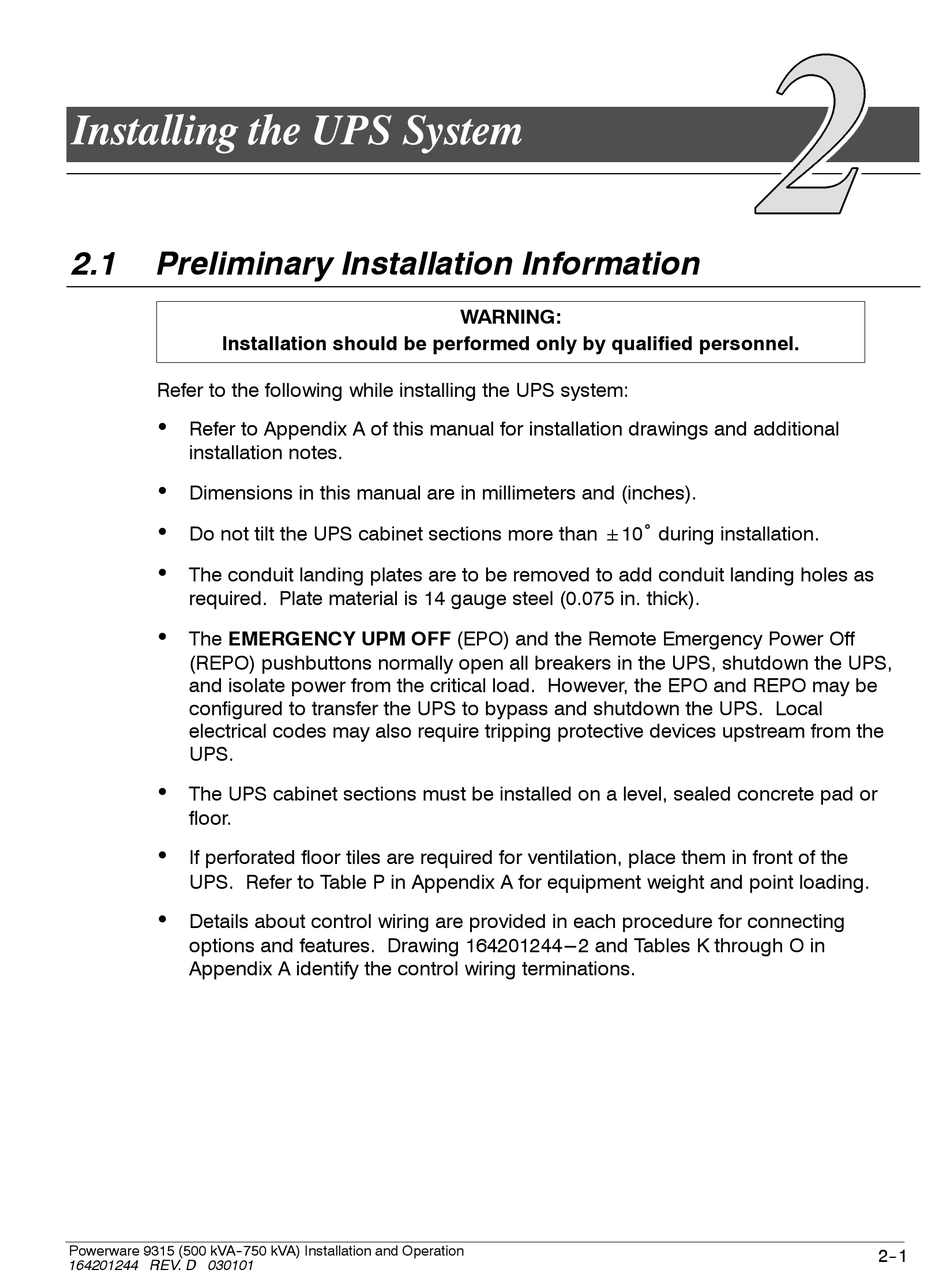

Installing the UPS System
2.1
Preliminary Installation Information
Installation should be performed only by qualified personnel.
Refer to the following while installing the UPS system:
·
Refer to Appendix A of this manual for installation drawings and additional
installation notes.
·
Dimensions in this manual are in millimeters and (inches).
·
Do not tilt the UPS cabinet sections more than
·
The conduit landing plates are to be removed to add conduit landing holes as
required. Plate material is 14 gauge steel (0.075 in. thick).
·
The EMERGENCY UPM OFF (EPO) and the Remote Emergency Power Off
(REPO) pushbuttons normally open all breakers in the UPS, shutdown the UPS,
and isolate power from the critical load. However, the EPO and REPO may be
configured to transfer the UPS to bypass and shutdown the UPS. Local
electrical codes may also require tripping protective devices upstream from the
UPS.
·
The UPS cabinet sections must be installed on a level, sealed concrete pad or
floor.
·
If perforated floor tiles are required for ventilation, place them in front of the
UPS. Refer to Table P in Appendix A for equipment weight and point loading.
·
Details about control wiring are provided in each procedure for connecting
options and features. Drawing 164201244---2 and Tables K through O in
Appendix A identify the control wiring terminations.
Powerware 9315 (500 kVA- -750 kVA) Installation and Operation
164201244 REV. D 030101
