Chapter 4
Patient stations

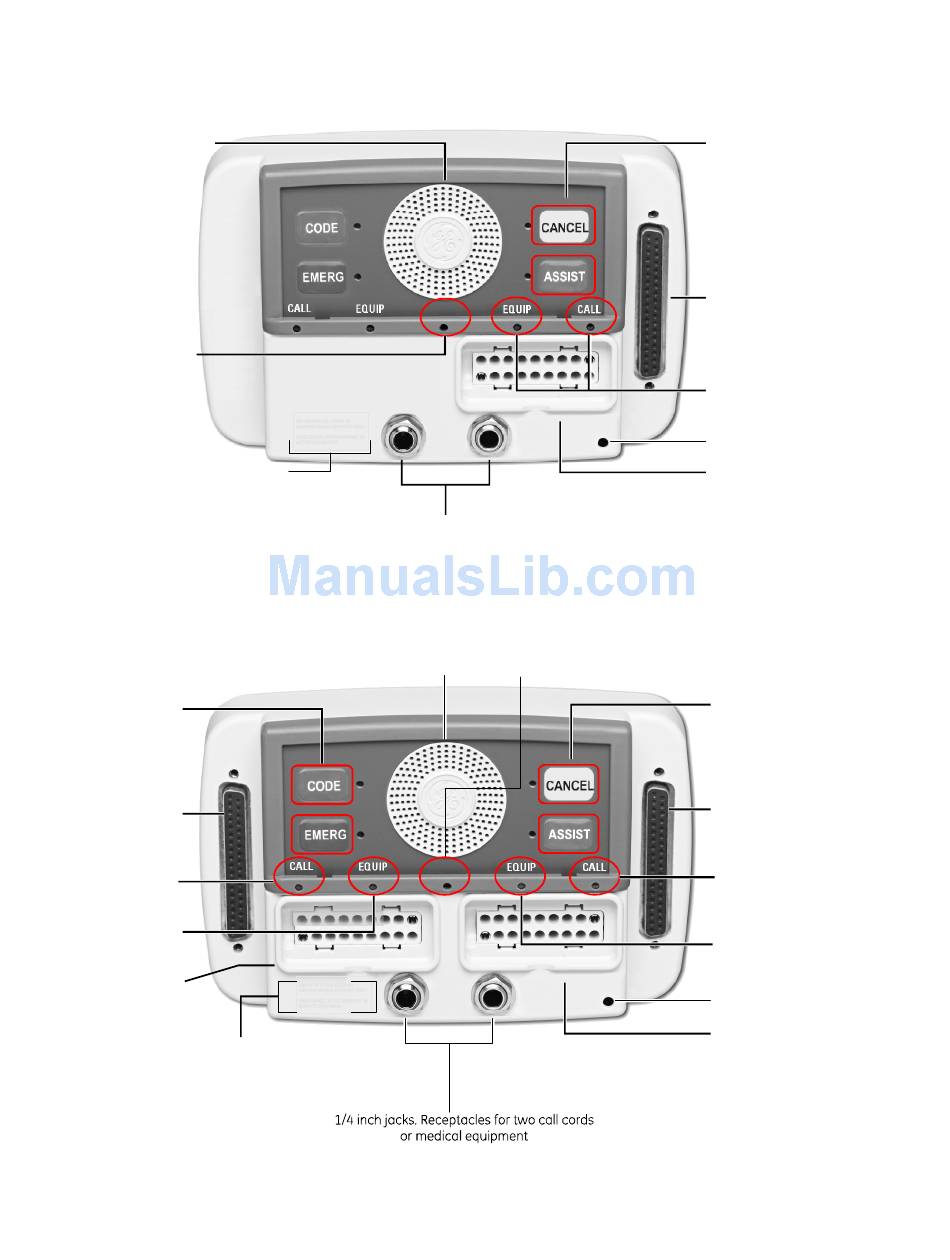

Figure 18: Single patient station with BedConnect (Model HC-PSTN1-BED)
Speaker phone
Status indicator light
"For use with call cords or
latching medical equipment only.
Press cancel aft er insertion to
activate equipment ."
Figure 19: Dual patient station with electronic bed receptacle (Model HC-PSTN2-BED)
Buttons for
signaling the
nursing station
and for canceling
the call.
Electronic
bed receptacle
Light indicates
calls, reminders,
and cord out
conditions.
Light indicates
configuration of
1/4 inch jack
Pillow speaker
receptacle
"For use with call cords or
latching medical equipment only.
Press cancel aft er insertion to
activate equipment ."
50
Receptacles for two call cords or latching medical
equipment listed/certified per UL544
equipment or UL60601-1 Medical electrical equipment
Speaker
Telligence Patient-Staff Communication System Operation Manual
Medical and dental
Status indicator light
Buttons for
signaling the
nursing station
and for canceling
the call.
Electronic
bed receptacle
Lights indicating
an active call or
equipment failure
Microphone
Pillow speaker
receptacle
Buttons for
signaling the
nursing station
and for canceling
the call.
Electronic
bed receptacle
Light indicates
calls, reminders,
and cord out
conditions.
Light indicates
configuration of
1/4 inch jack
Microphone
Pillow speaker
receptacle
