Patient station receptacles

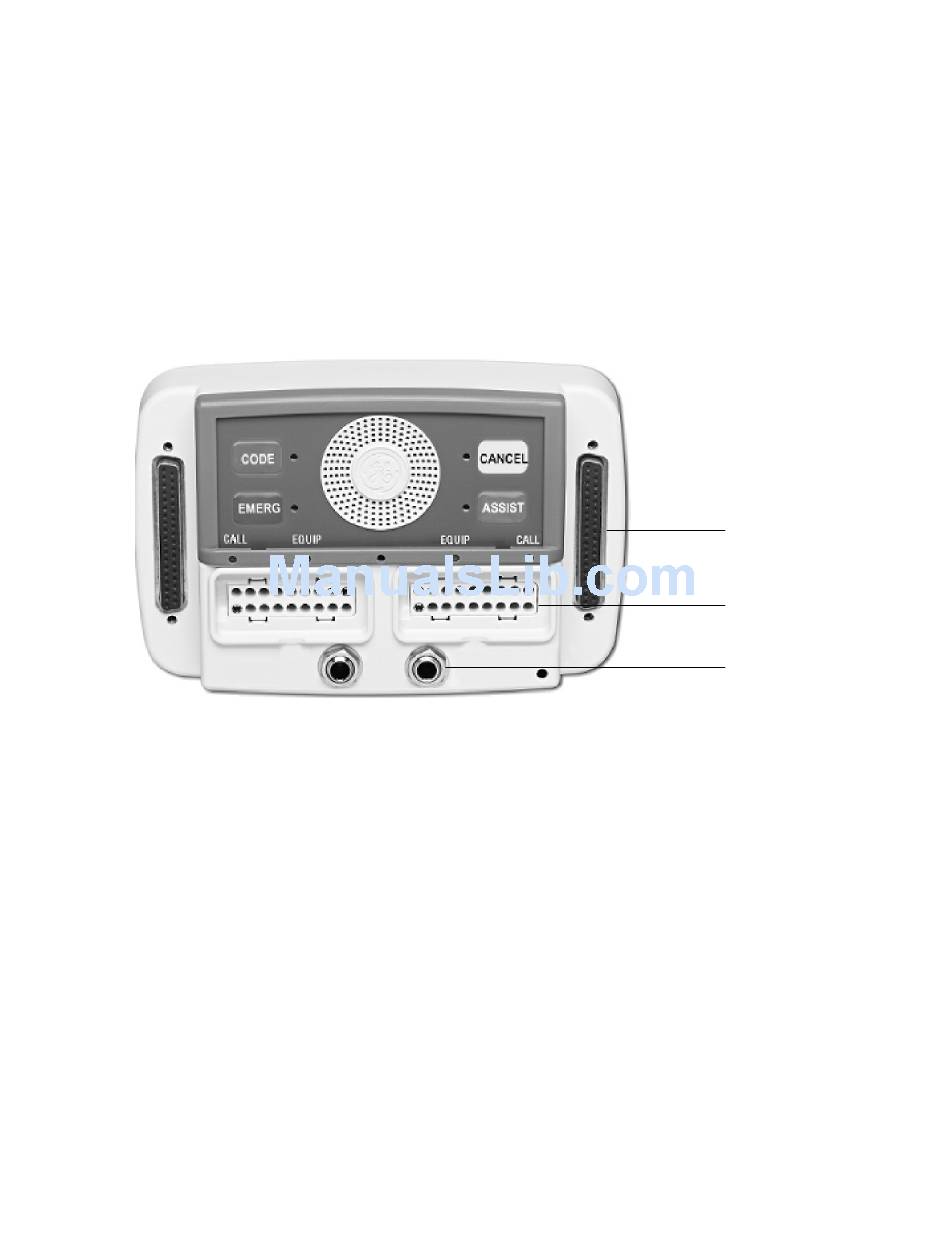

Figure 29: Dual patient station with BedConnect receptacles
Telligence Patient-Staff Communication System Operation Manual
Telligence patient stations can have from four to six front panel
receptacles. The illustration below shows a Dual patient station
which has six receptacles.
Note: Depending on how a patient station was configured, patient
station 1/4-inch jacks can be used for call cords only, for auxiliary
medical equipment only, or can be programmed to prompt at the
time of use for one of these modes.

Dual patient station receptacles

Dual patient stations, which provide nurse call communications for
two patient beds, provide the following input receptacles:
• Two external DB 37-pin bed connector receptacles (on patient
stations with BedConnect), or two rear (internal) bed interface
headers (on standard patient stations)
• Two 18-pin Smart Pillow Speaker connector receptacles
• Two 1/4-inch auxiliary input jacks, configurable for bed call cord
input or medical equipment input, or programmable for either
type of input

Single patient station receptacles

Single patient stations, which provide nurse call communications for
one patient bed, provide the following input receptacles:
Chapter 4
Patient stations
DB37-pin bed
connector receptacle
18-pin pillow
speaker receptacle
1/4 in call cord or
auxiliary input jack
77
