Connections
Using an Optical (Digital) Cable and a Headphone Cable Connection
Use with Digital Audio Systems, Amplifiers, and Home Theatres.
DIGITAL AUDIO OUT (OPTICAL)
When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the product and the system.
5.1 CH (channel) audio is available when you connect the product to an external device supporting 5.1 CH.
When the receiver (home theatre) is set to on, you can hear sound output from the product's optical jack. When
the product is receiving a DTV signal, the product will send 5.1 CH sound to the home theatre receiver. When
the source is a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite
receiver and you connected it to the product via HDMI, you will only hear 2 CH audio from the home theatre
receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player /
cable box / STB satellite receiver directly to an amplifier or home theatre.
Headphones H: You can connect your headphones to the headphone output jack on your product. While the
headphones are connected, the sound from the built-in speakers will be disabled.
The sound function may be restricted when you connect headphones to the product.
Headphone volume and product volume are adjusted separately.
The earphone jack supports only the 3 conductor tip-ring-sleeve (TRS) type.

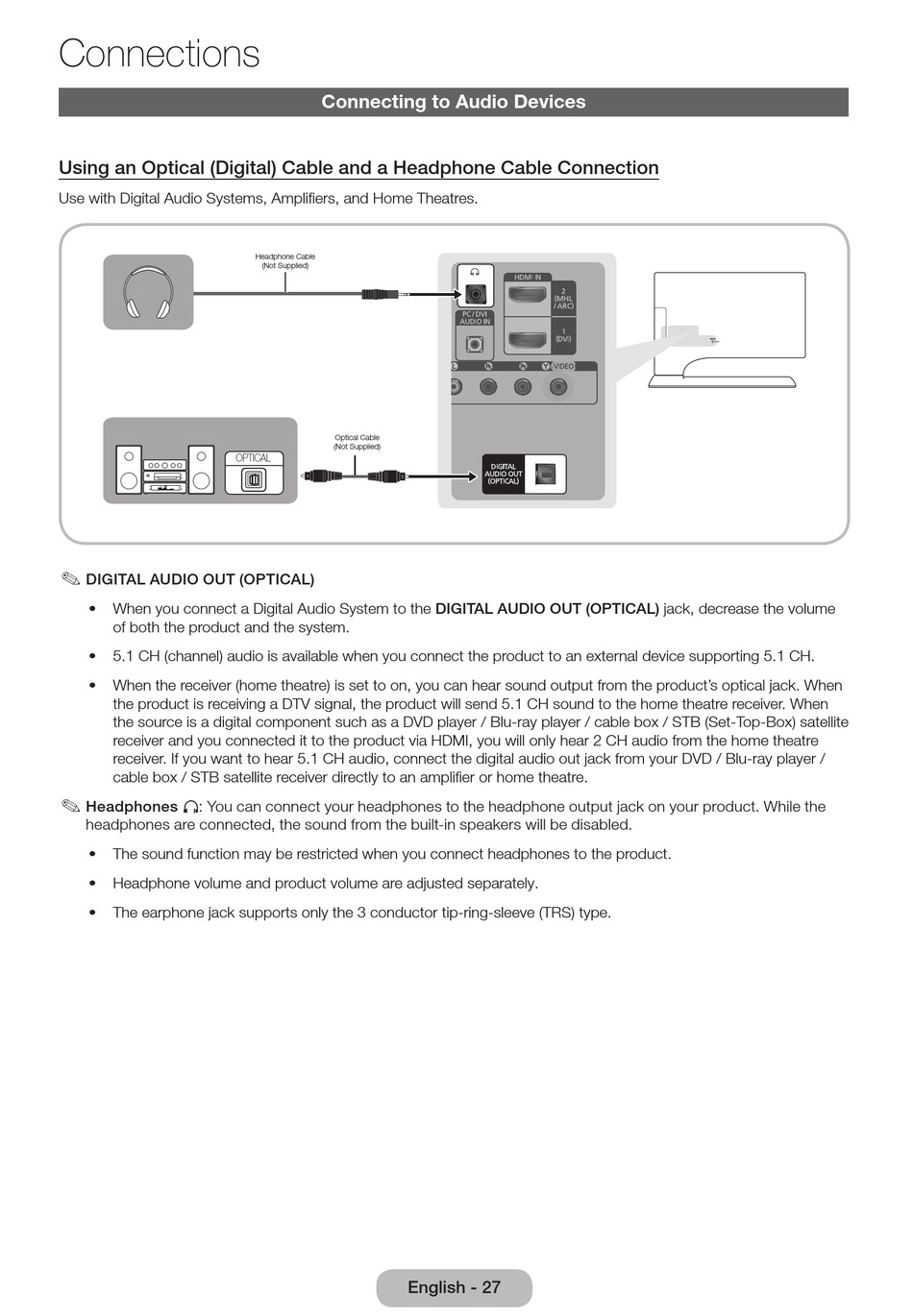

Connecting to Audio Devices

Headphone Cable
(Not Supplied)
Optical Cable
(Not Supplied)
OPTICAL
English - 27
