SAMSUNG LED TV MONITOR User Manual Page 26

7 series led tv monitor (mfm tv).
Hide thumbs
  • Contents

Advertisement

Table of Contents

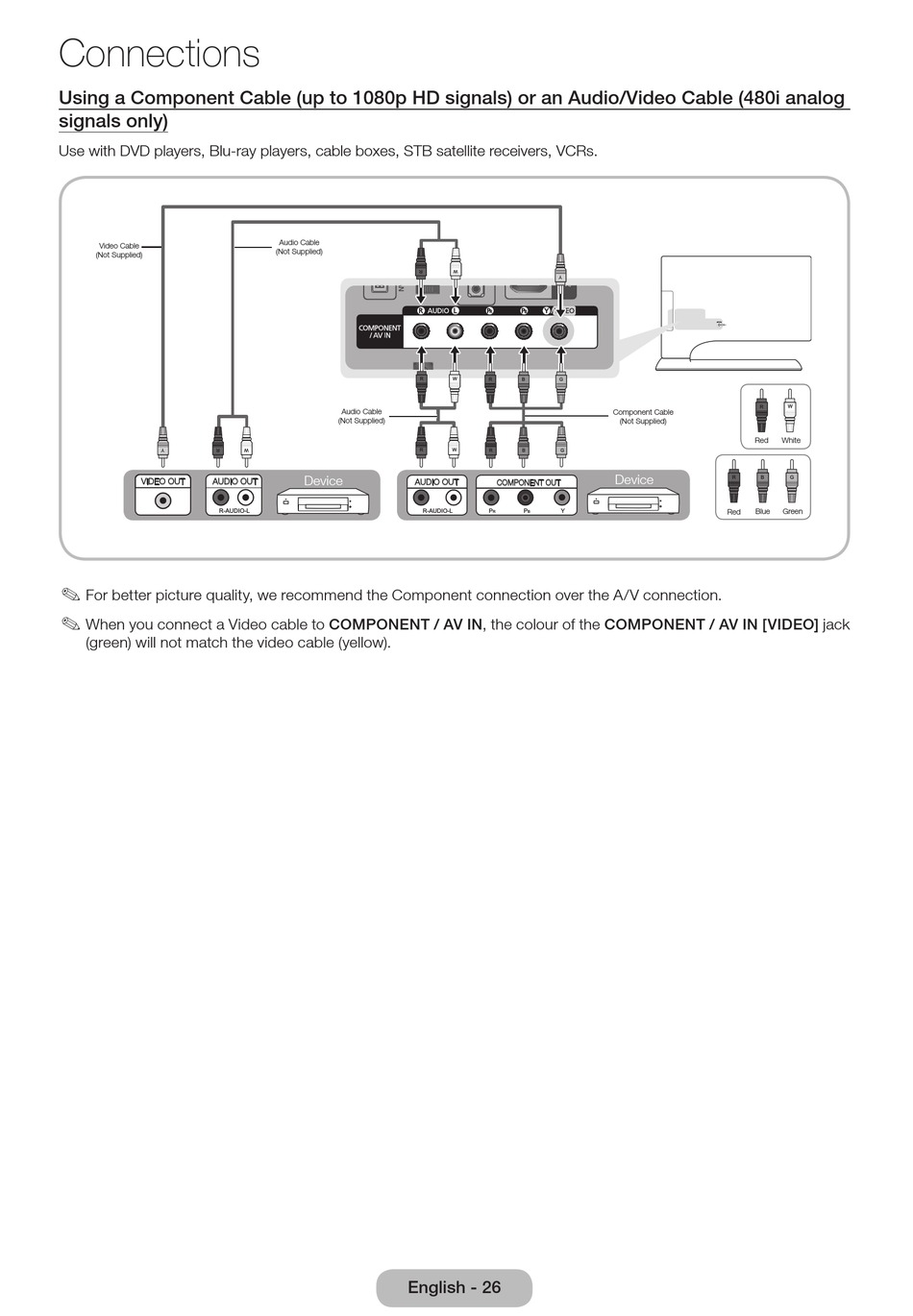

Connections
Using a Component Cable (up to 1080p HD signals) or an Audio/Video Cable (480i analog
signals only)
Use with DVD players, Blu-ray players, cable boxes, STB satellite receivers, VCRs.
Video Cable
(Not Supplied)
Y
R
VIDEO OUT
AUDIO OUT
R-AUDIO-L
✎
For better picture quality, we recommend the Component connection over the A/V connection.
✎
When you connect a Video cable to COMPONENT / AV IN, the colour of the COMPONENT / AV IN [VIDEO] jack
(green) will not match the video cable (yellow).
Audio Cable
(Not Supplied)
Audio Cable
(Not Supplied)
W
Device
AUDIO OUT
English - 26
R
W
Y
W
R
R
B
G
R
W
R
B
G
COMPONENT OUT
R-AUDIO-L
P
P
Y
R
B
R
Component Cable
(Not Supplied)
Red
White
Device
R
B
Red
Blue
Green
W
G
