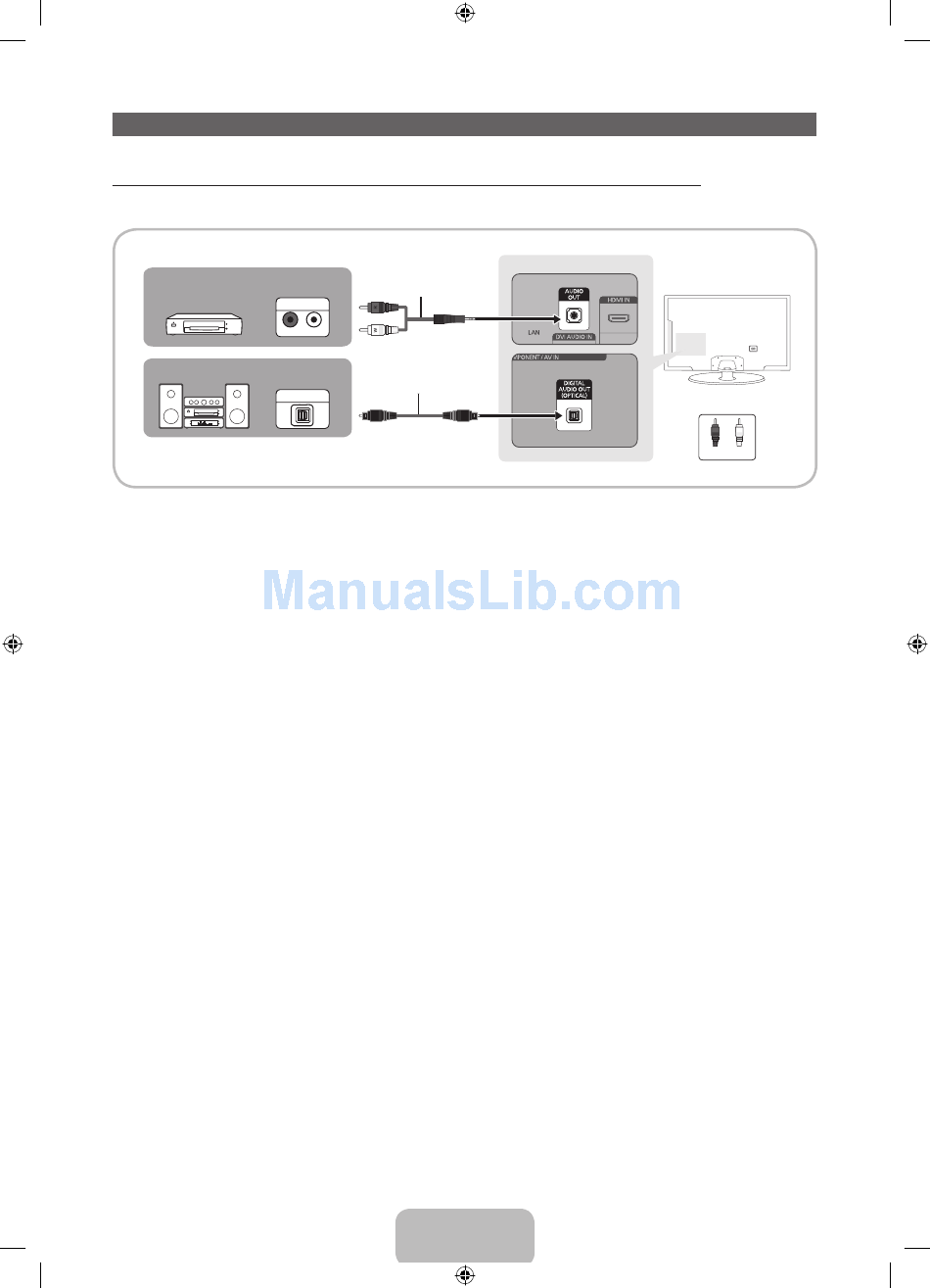

Using an Optical (Digital) Cable Connection or a Standard Stereo Cable Connection

Use with Digital Audio Systems, Amplifiers, and Home Theaters.
Amplifier /
DVD home theater
Digital Audio System
AUDIO
OUT: Connects to the audio input jacks on your amplifier/DVD home theater.
• When connecting, use the appropriate connector.
• When you connect an audio amplifier to the
adjust the volume level with the amplifier's volume control.
DIGITAL AUDIO OUT (OPTICAL)
• When you connect a Digital Audio System to the
the volume of both the TV and the system.
• 5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1
CH.
• When the receiver (or home theater) is set to on, you can hear sound output from the TV's optical
jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater
receiver. When the source is a digital component such as a DVD player / Blu-ray player / cable box
/ STB (Set-Top-Box) satellite receiver and you connected it to the TV via HDMI, you will only hear
2 CH audio from the home theater receiver. If you want to hear 5.1 CH audio, connect the digital
audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an
amplifier or home theater.
[UE5300-ZA]BN68-04075A-00Eng.indb 12

Connecting to Audio Devices

Audio Cable (Not Supplied)
AUDIO IN
R-AUDIO-L
Optical Cable (Not Supplied)
OPTICAL
AUDIO OUT
English - 12
jacks, decrease the volume of the TV and
DIGITAL AUDIO OUT (OPTICAL)
R
W
Red White
jack, decrease
2012-04-13
